Automatic Transmission/Transaxle: Testing and Inspection

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET

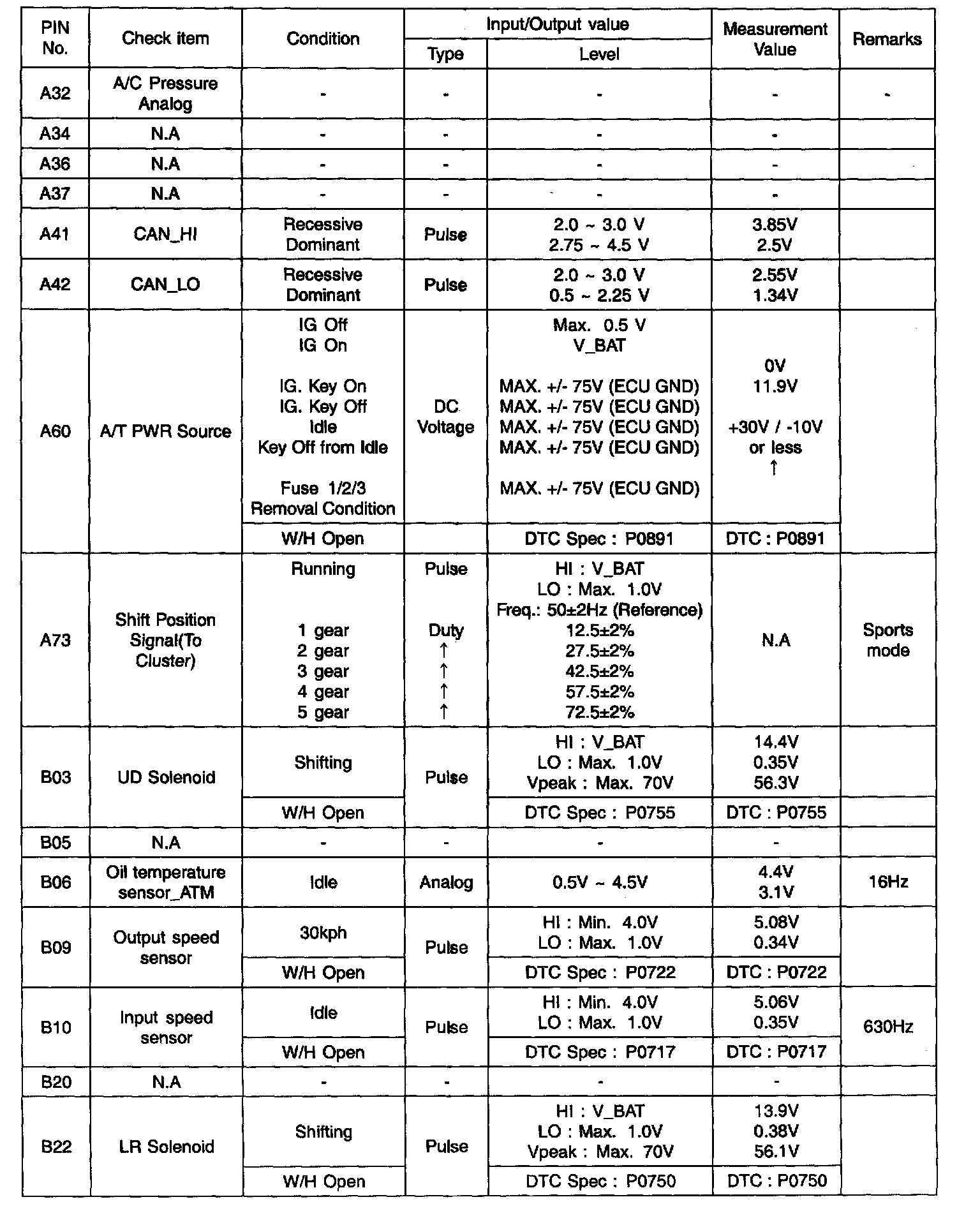

Input/Output Signal Voltage Check Sheet (Part 1):




Input/Output Signal Voltage Check Sheet (Part 2):




Input/Output Signal Voltage Check Sheet (Part 3):
