Steering Control Module
Steering Control Module

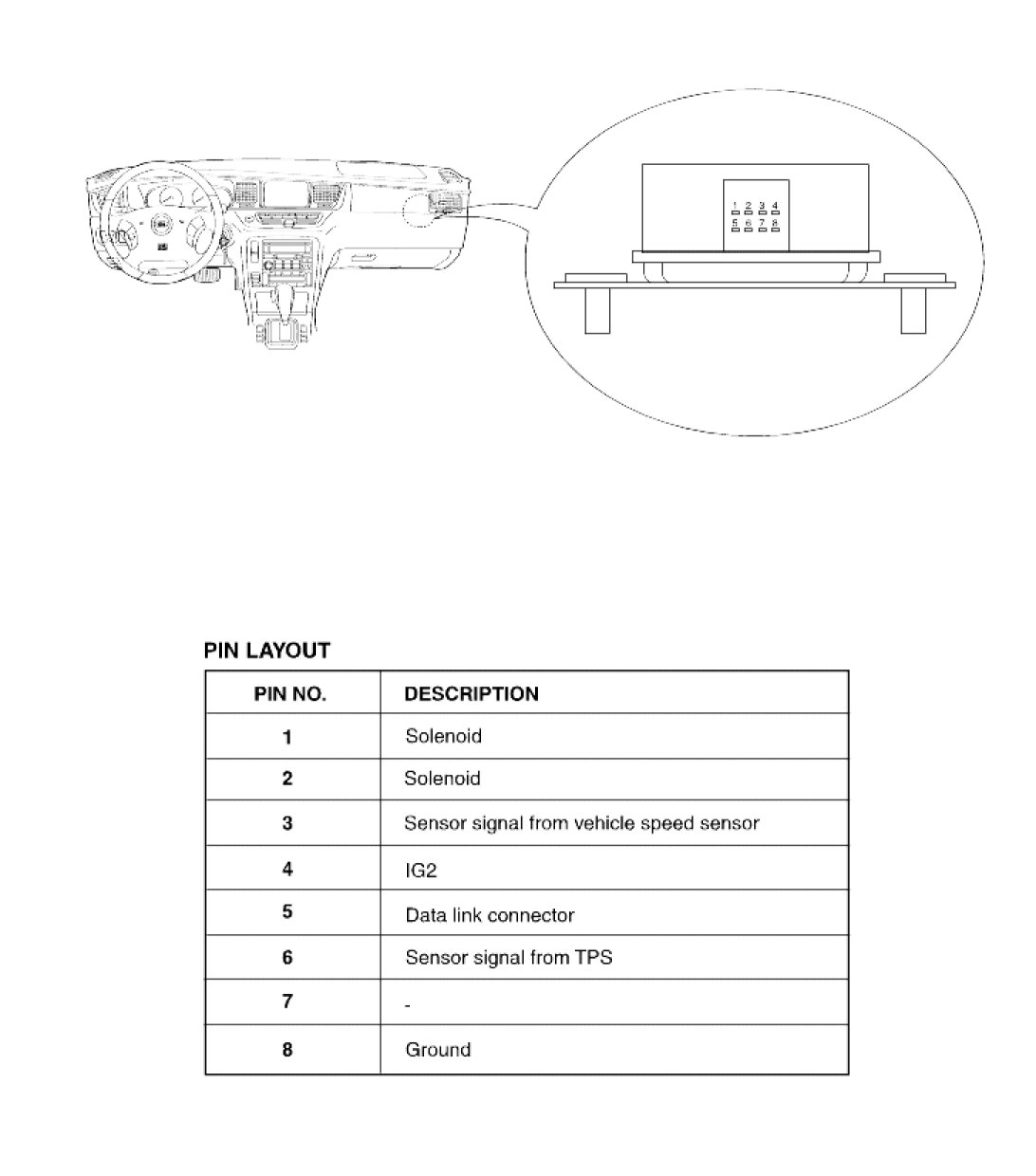

Electronic power steering control module
The EPSCM is installed right of the passenger airbag module. .
