Home >> Kia >> 2008 >> Rondo L4-2.4L >> Repair and Diagnosis >> Diagrams >> Mechanical Diagrams >> Body and Frame >> Front and Rear Body

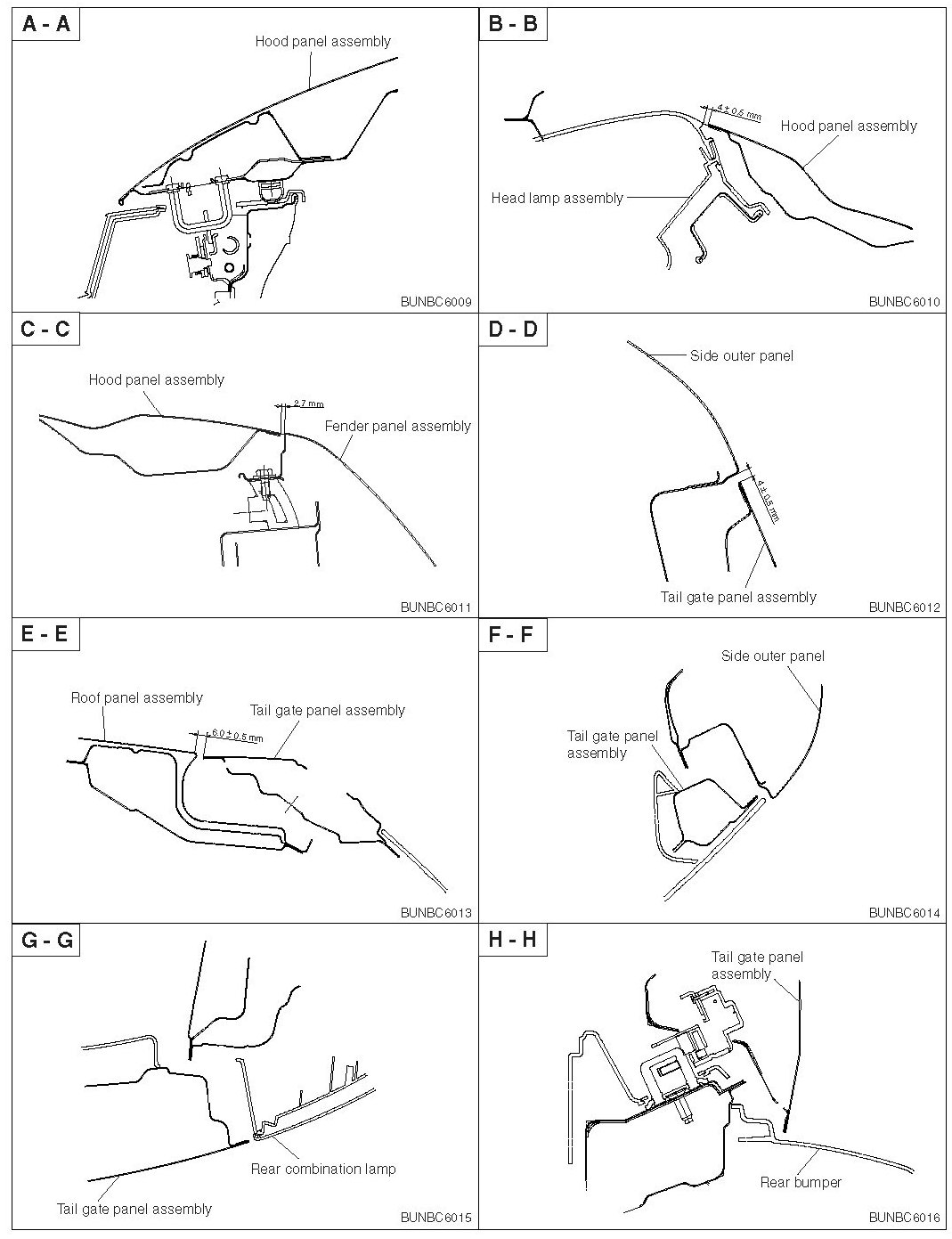

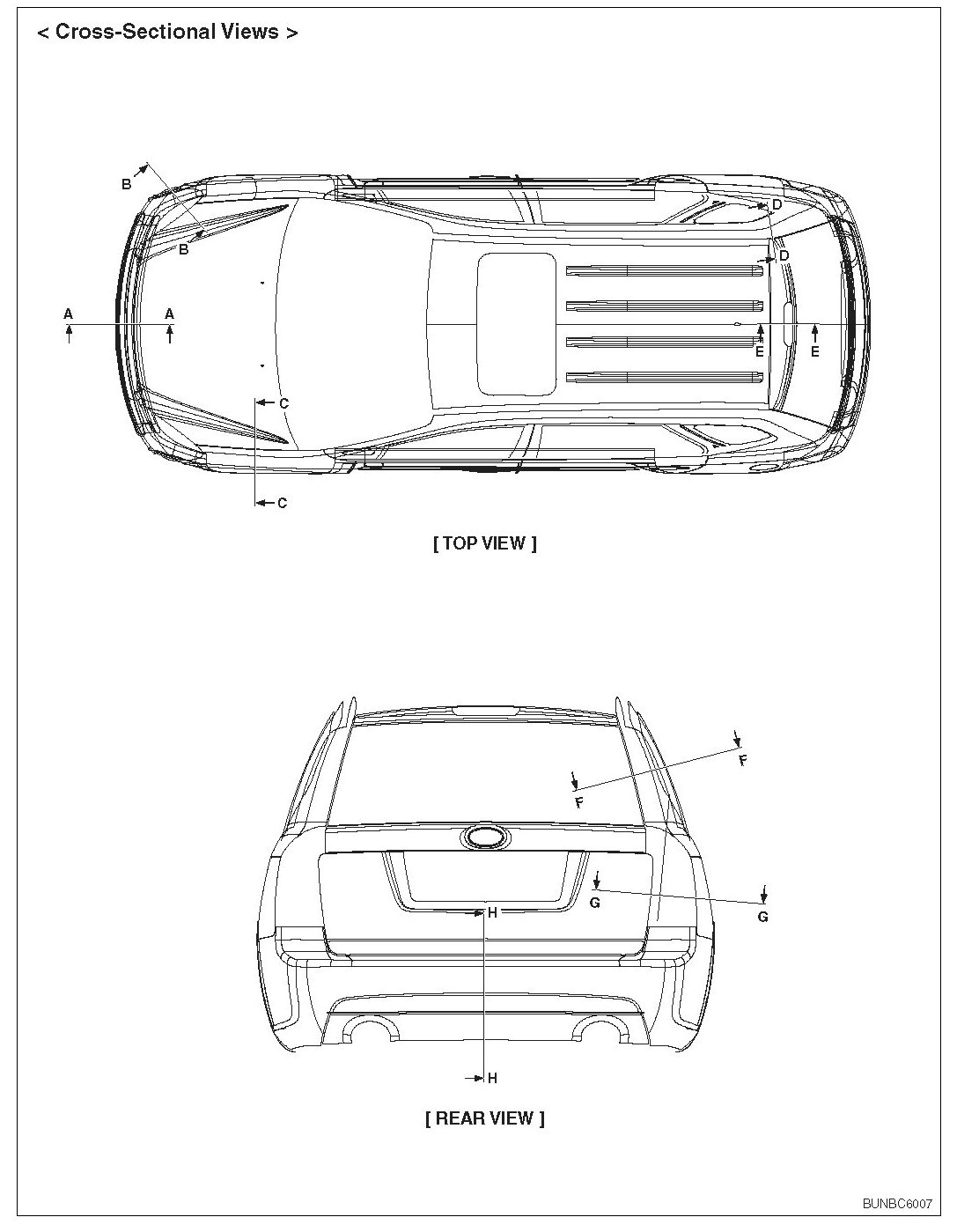

Front and Rear Body








Front and Rear Body
