Kia
>>
2009
>>
Amanti V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
Air Bag Systems
CIRCUIT DIAGRAM

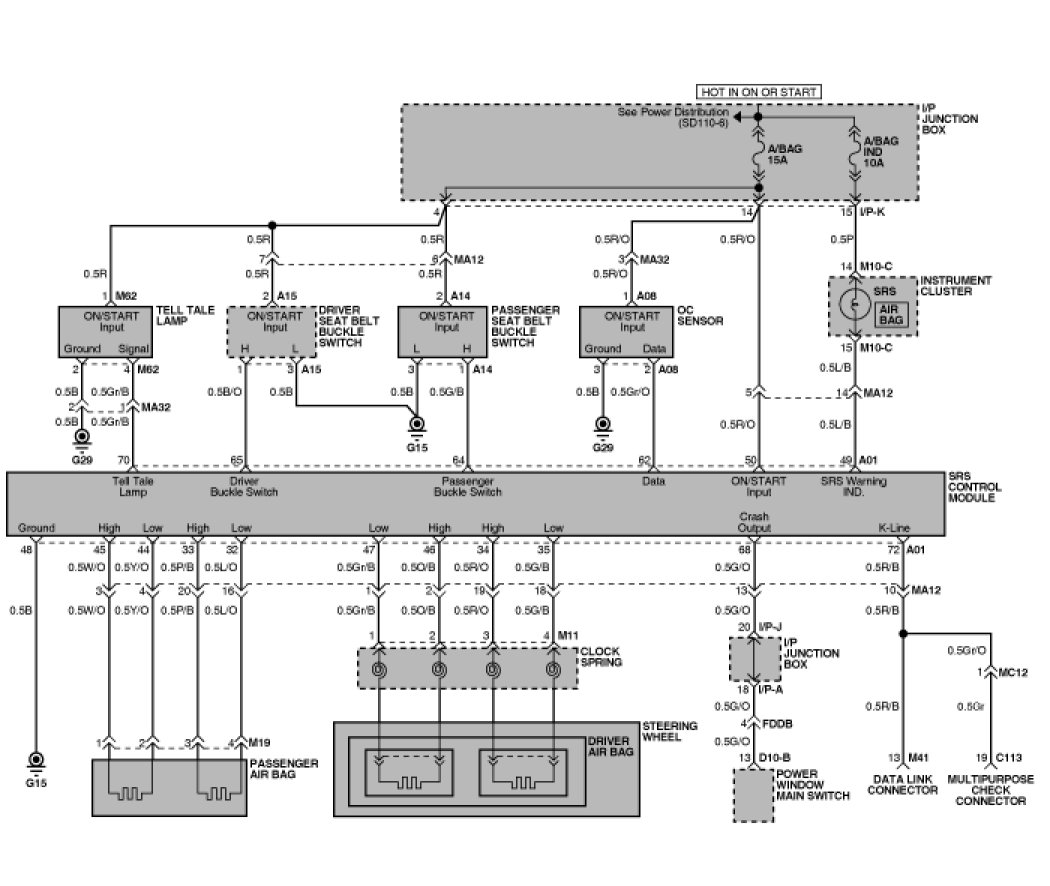

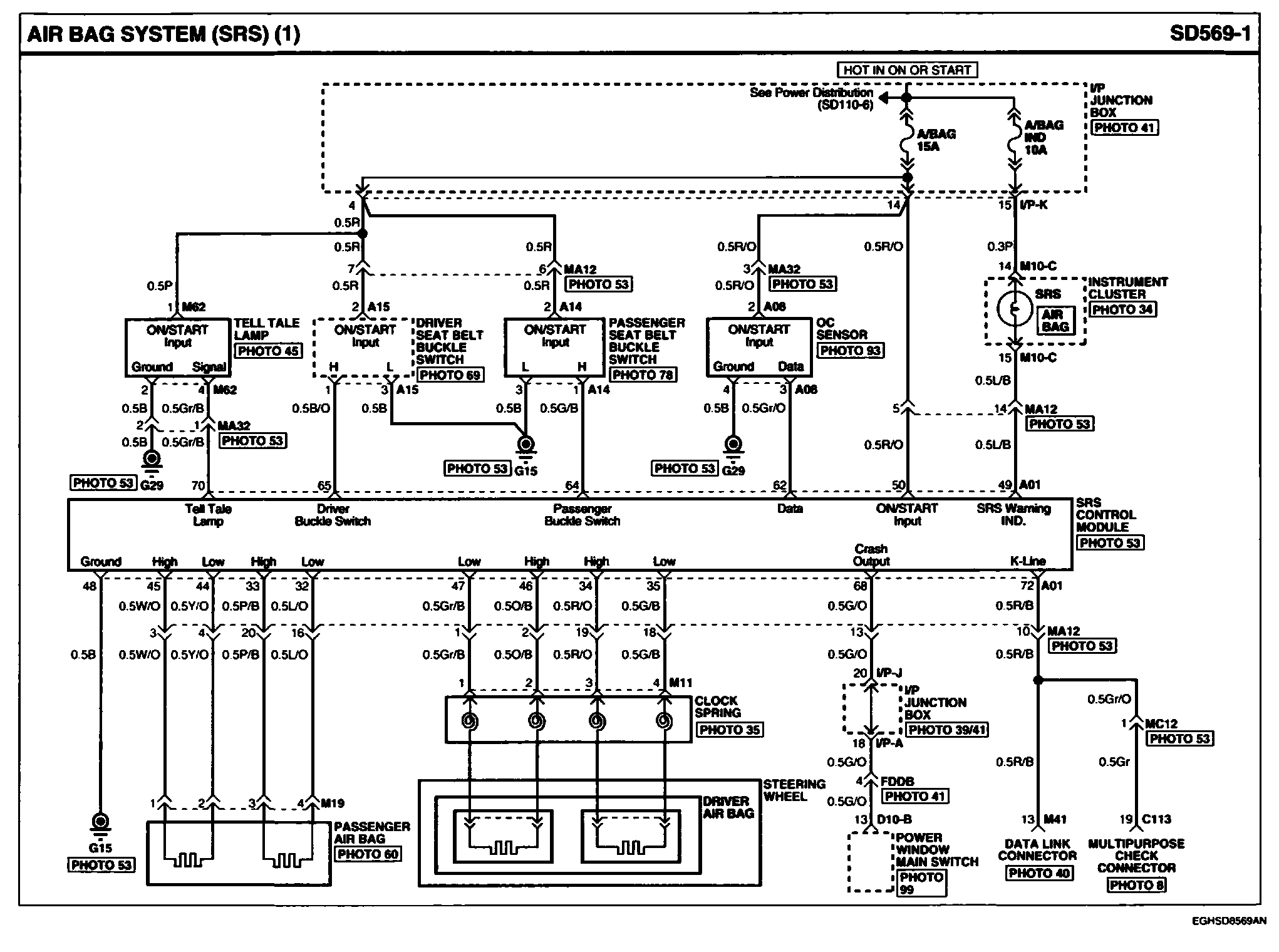

Air Bag System (SRS) (1):

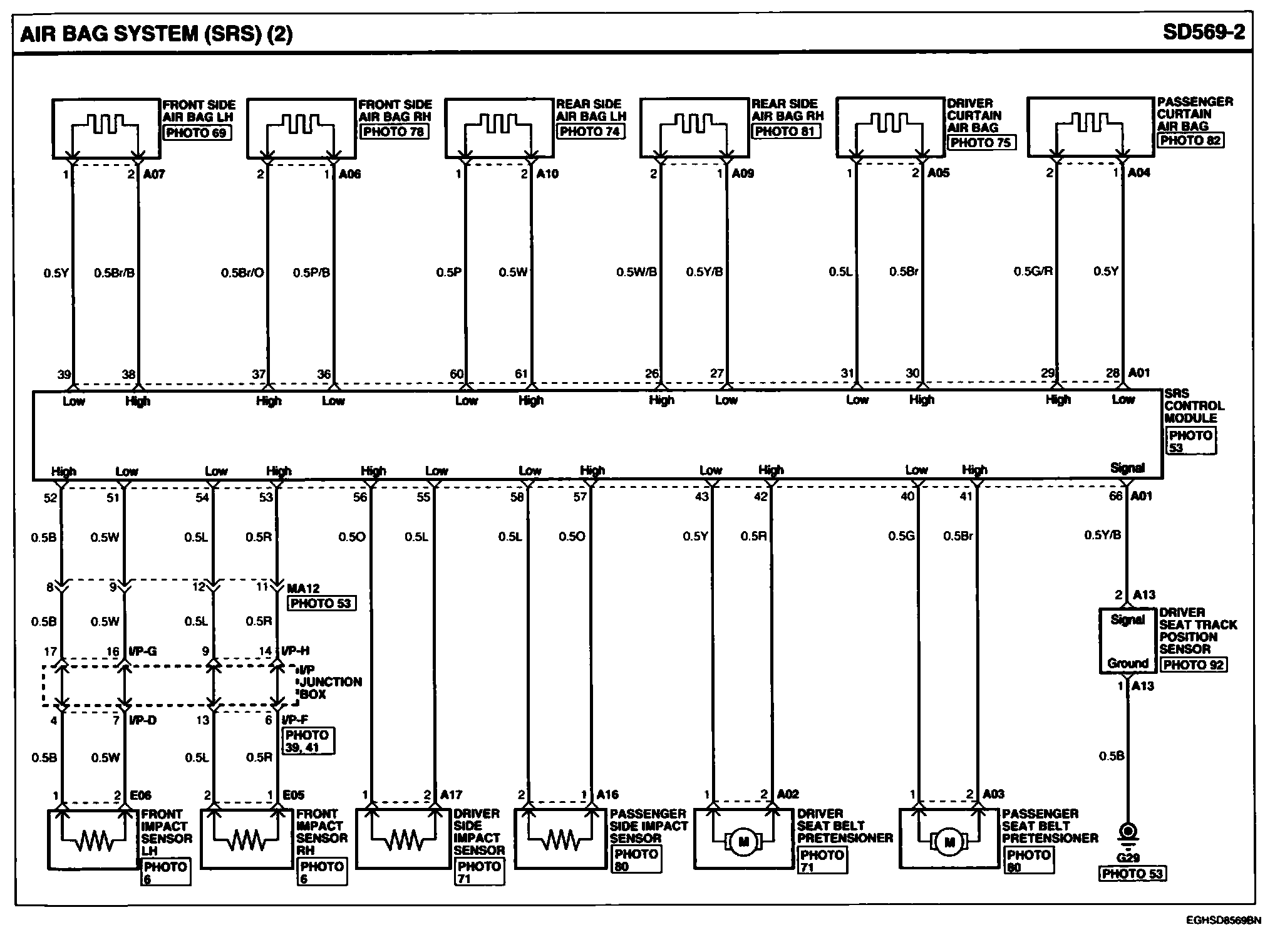

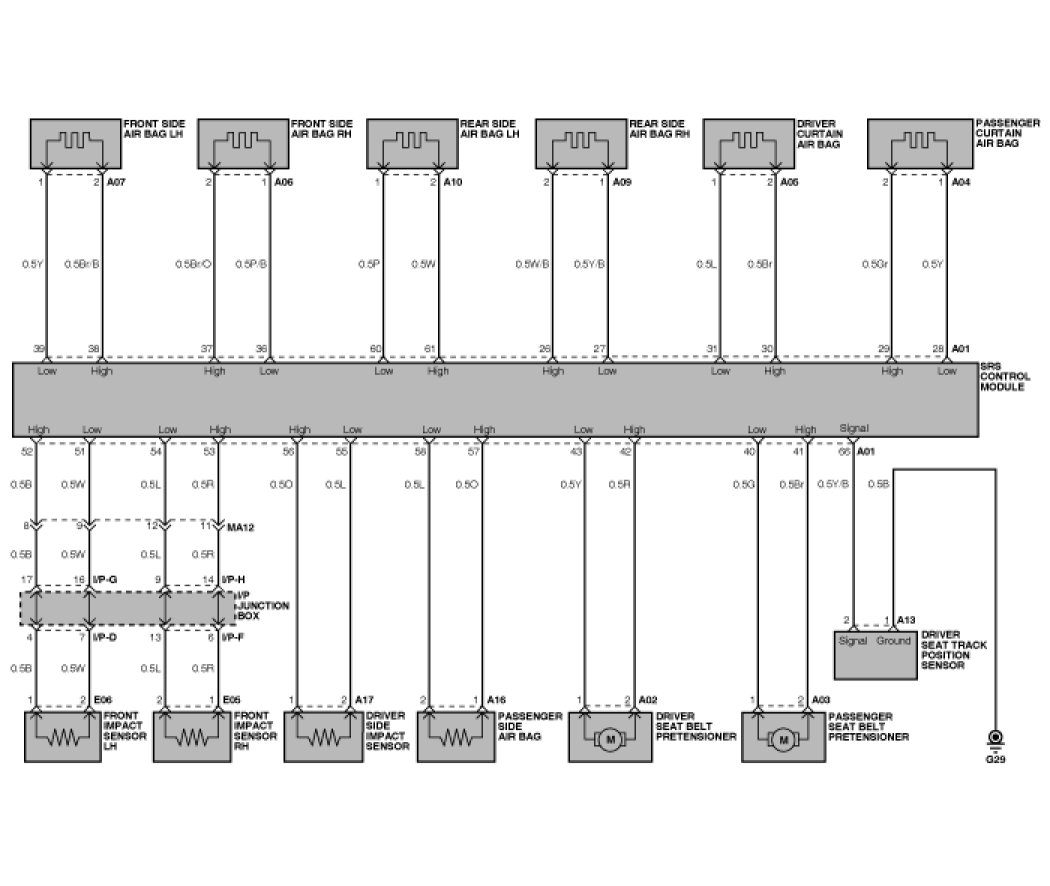

Air Bag System (SRS) (2):

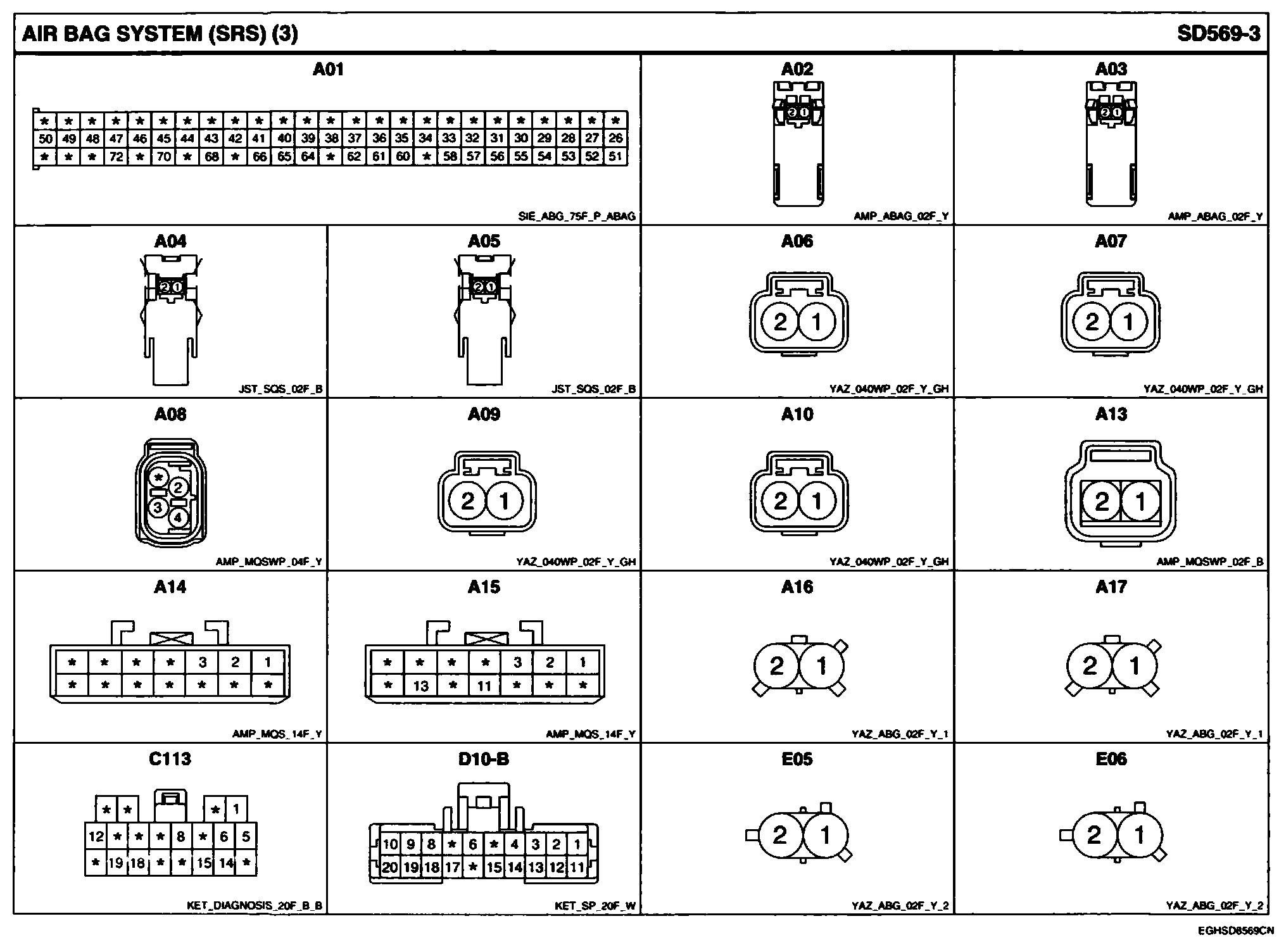

Air Bag System (SRS) Connector Pin Outs:

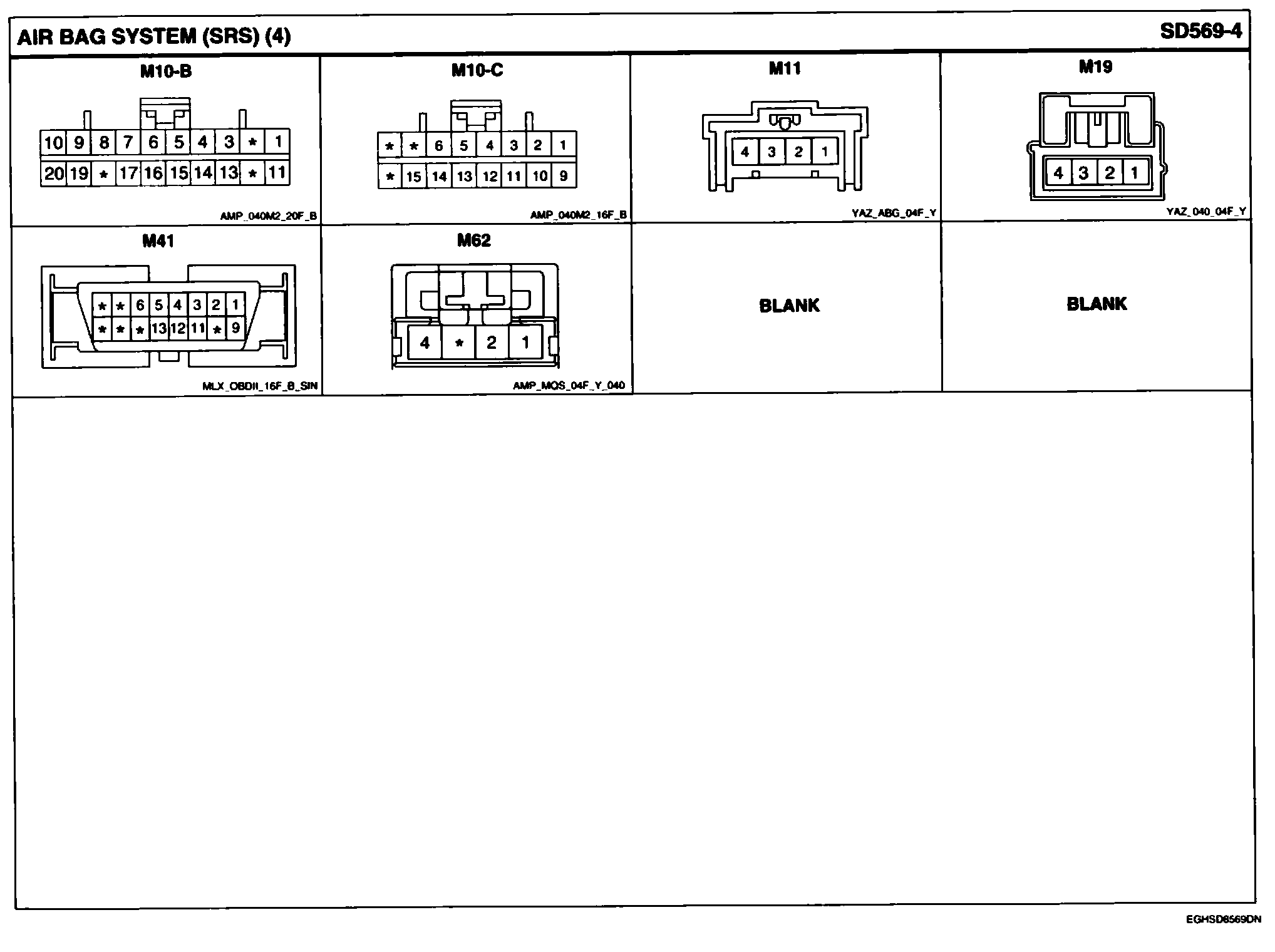

Air Bag System (SRS) Connector Pin Outs:
