Evaporator Temperature Sensor / Switch: Testing and Inspection

INSPECTION

1. Start the engine.
2. Turn on the air conditioner.

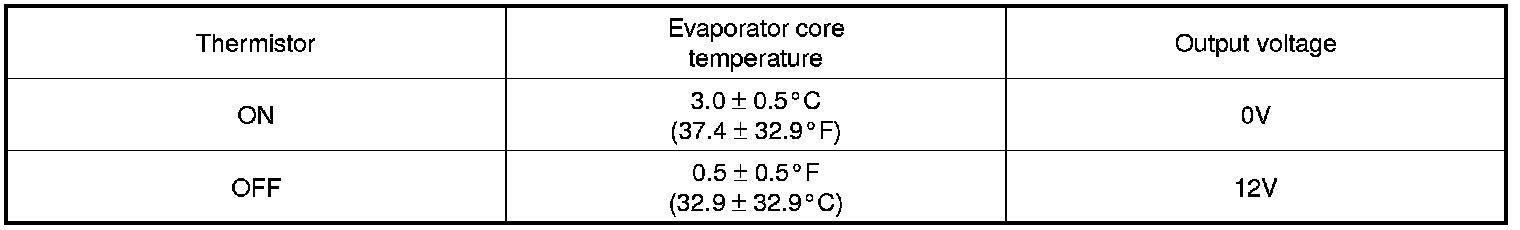

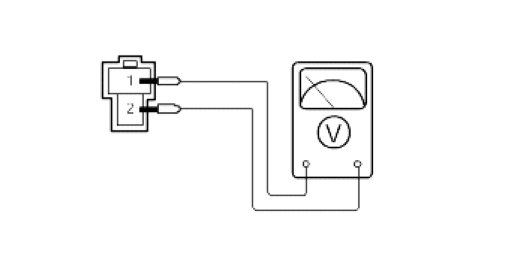

3. Using the multi-tester, check the output voltage between terminals 1 and 2 in the thermistor.
