Drive Axles, Bearings and Joints

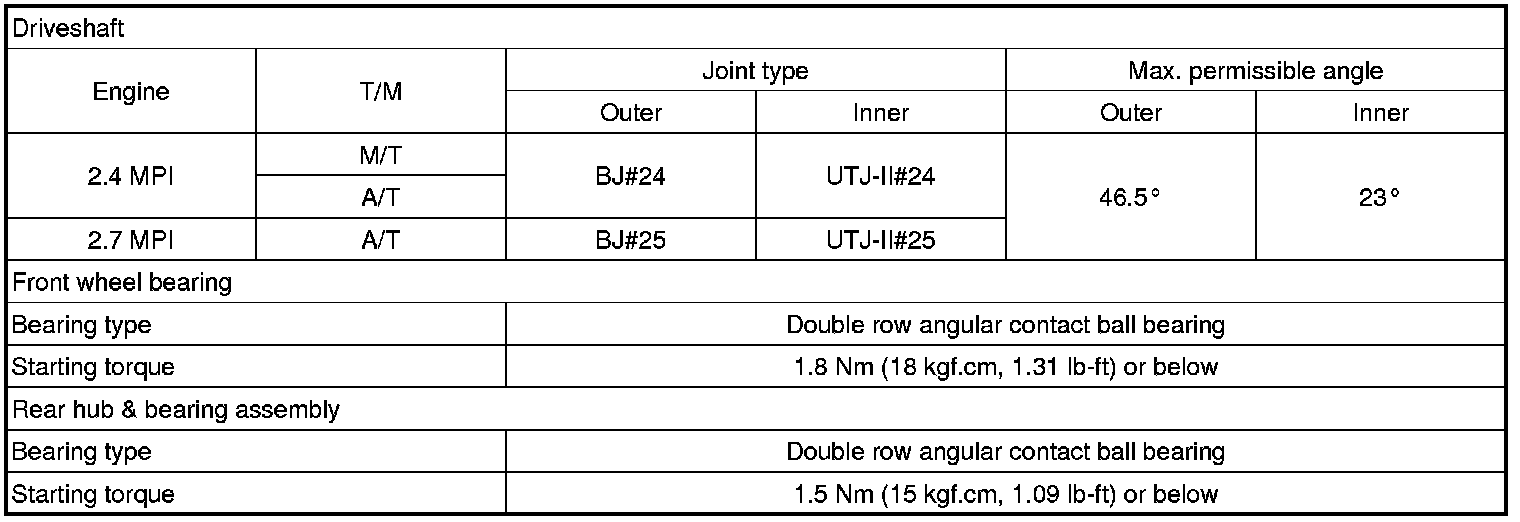

SPECIFICATIONS





NOTE:
Inner: On transaxle side
Outer: On tire side

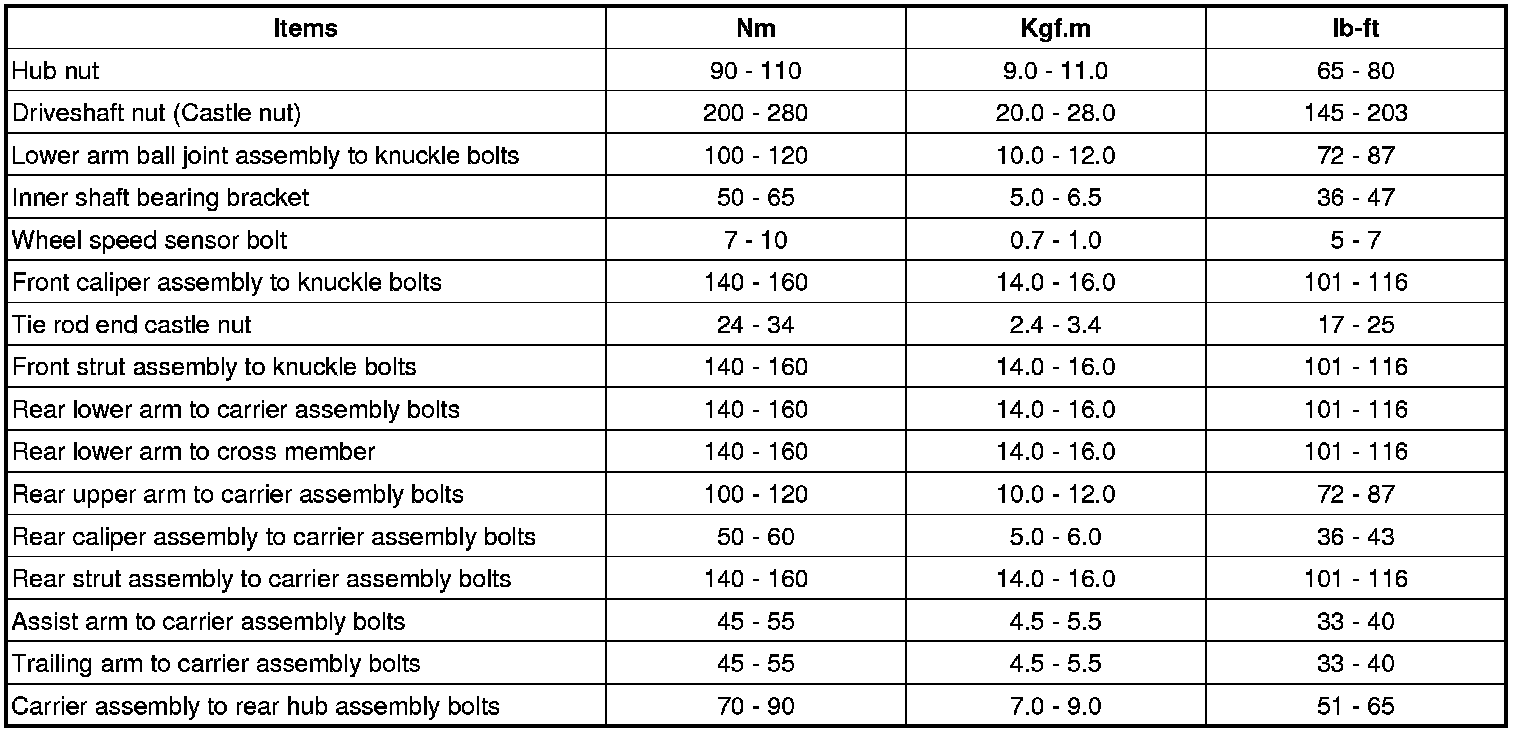

TIGHTENING TORQUE
