Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2009
>>
Rondo V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Control Harness
Control Harness

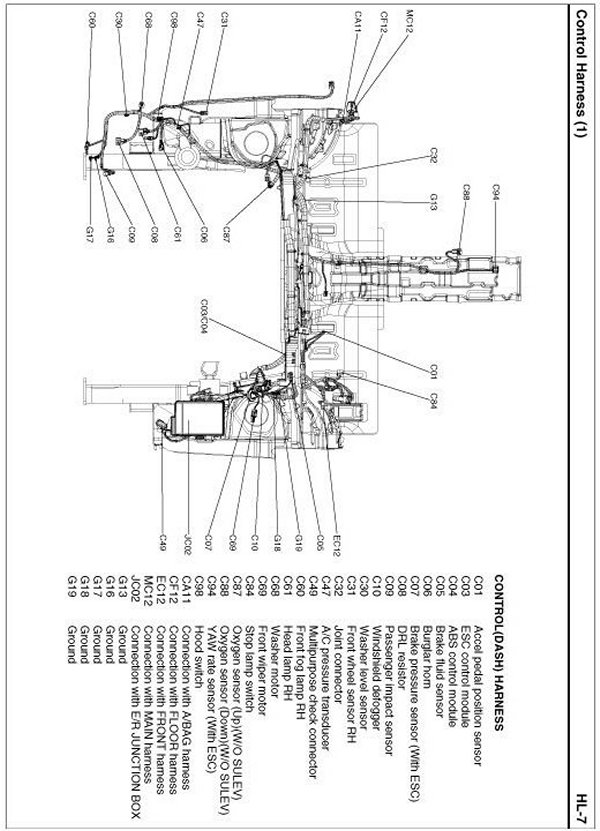

Control Harness (1):

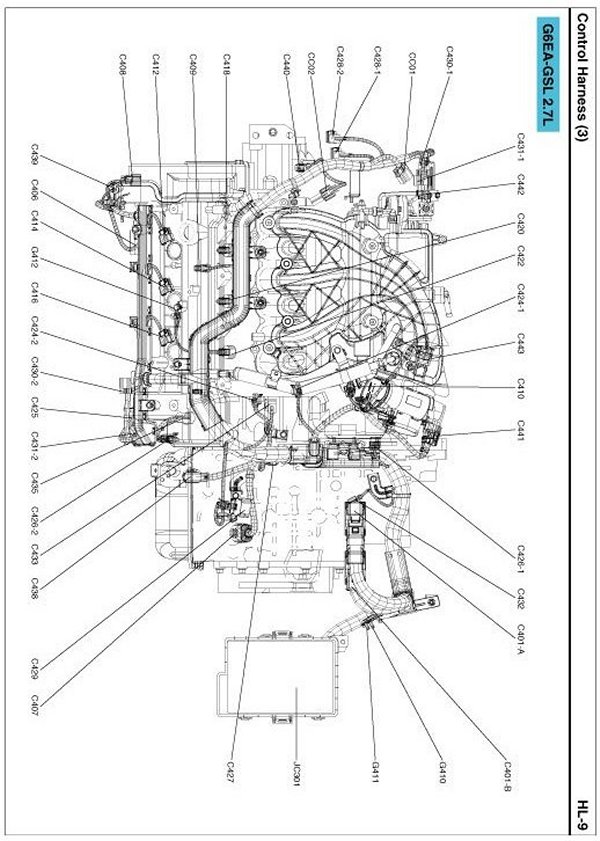

Control Harness View:
Control Harness Index:
