Diagram Set SD313 (MFI Control System)
Diagram Set SD313 (MFI Control System)

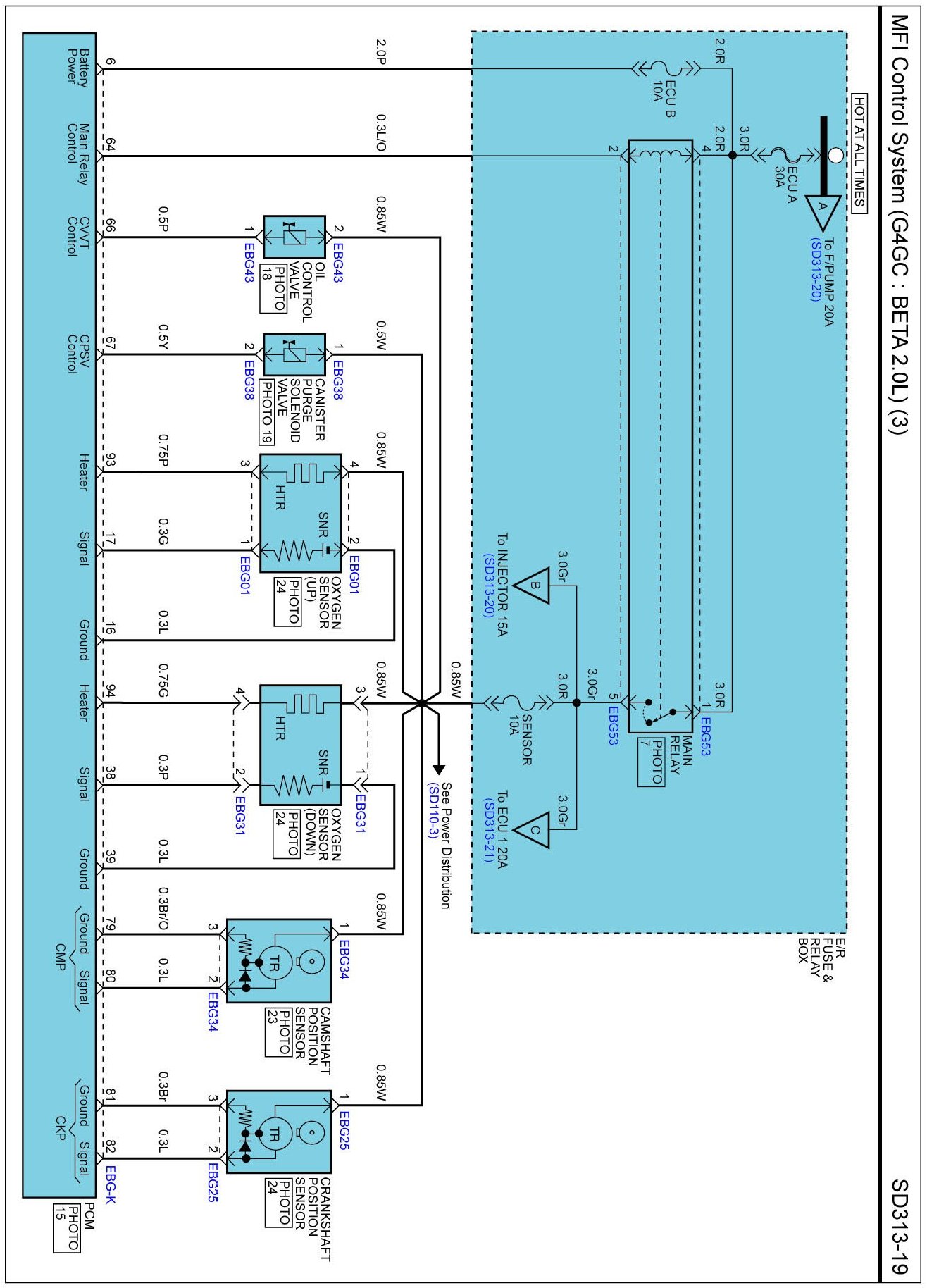

SD313-19 MFI Control System (3):
SD313-20 MFI Control System (4):
SD313-21 MFI Control System (5):
SD313-22 MFI Control System (6):
