Electrical Diagrams





Circuit Diagram - ABS(1)





Circuit Diagram - ABS(2)

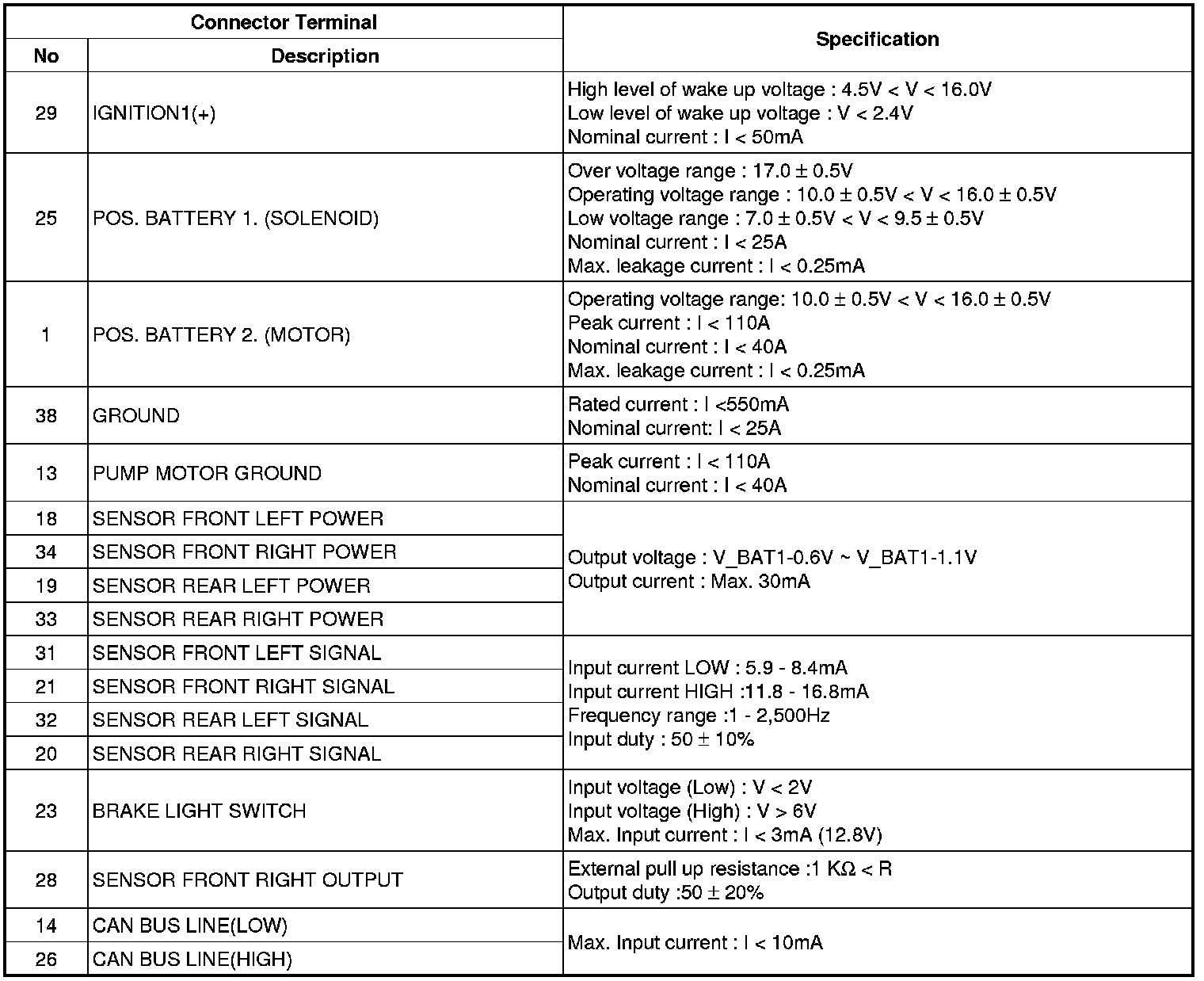

ABS Connector Input / Output
