Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

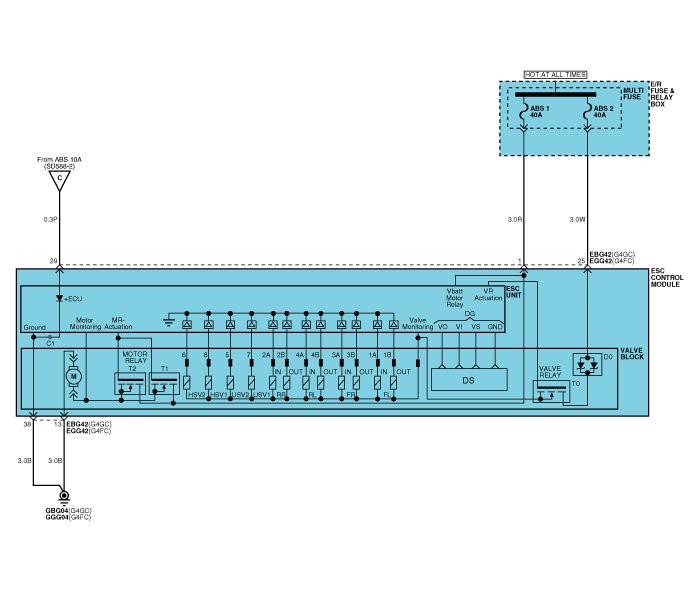

Circuit Diagram - ESC(1)

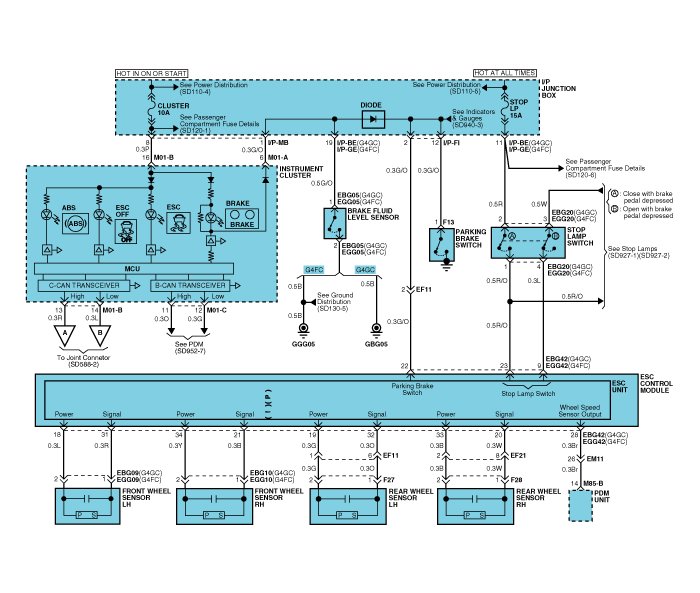

Circuit Diagram - ESC(2)
Circuit Diagram - ESC(3)
ESC Connector Input/Output
