Electrical Diagrams

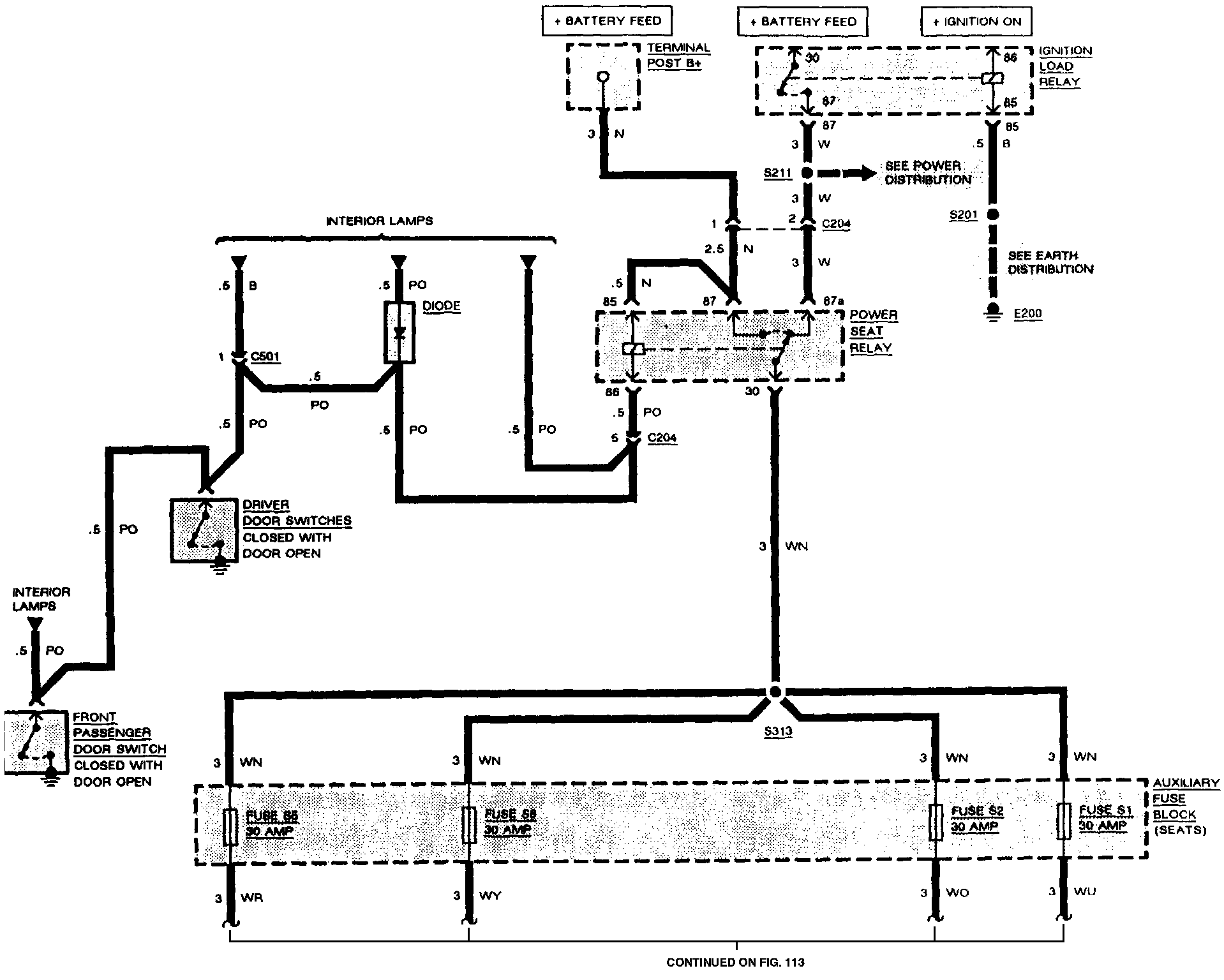

Fig. 112:

Fig. 112

Fig. 113:

Fig. 113

The wiring diagrams relate to the seats and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
