Relays, Timers, Control Units

Incorporated in the vehicle electrical circuits are several relays, some of which are located behind the lower dash panel attached to the steering column support bracket. Relays are also located in the engine compartment attached to the closure panel, these relays are accessible having removed the black protective cover. The remaining relays are located beneath both front seats.

The relays in the following images are identified in the chart at the bottom of the page.

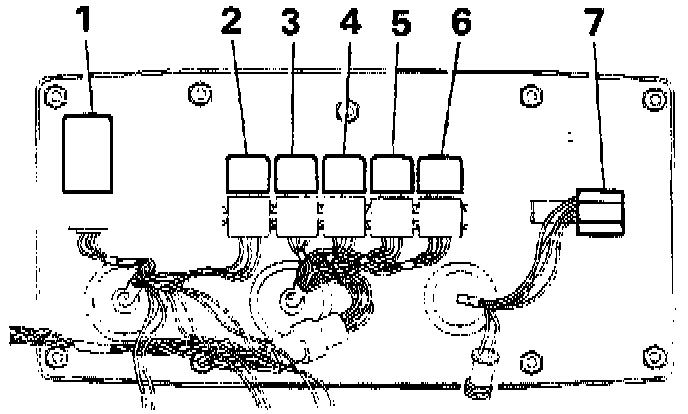

Relay Panel - Engine Compartment:

Closure panel viewed from the engine compartment, with protective cover removed.

Relays - Steering Column:

Steering column mounted relays viewed with the lower dash panel removed.

Seat Adjustment Relay:

Seat adjustment relay located beneath the left hand front seat adjacent to fuse box (B).

Sunroof Relay & Fuse:

Sunroof auxiliary relay located on side of the steering column support bracket located behind the lower dash panel.

Main Relay & Fuel Pump Relay:

Main EFI (black terminal block) and fuel pump relays (blue terminal block) mounted beneath right hand front seat.

Relay Item Number - Circuit Diagram

1. Headlamp wash timer unit - Black 17 - Main circuit
2. Heated rear window 65 - Main circuit
3. Starter solenoid relay 6 - Main circuit
4. Compressor clutch 11 - Air conditioning circuit
5. Condenser fan 9 - Air conditioning circuit
6. Air conditioning/heater 5 - Air conditioning circuit
7. Stowage position Not used
8. Rear wiper delay - Black 139 - Main circuit
9. Ignition load relay - Black 1 - Main circuit
10. Front wiper delay - Red 14 - Main circuit
11. Flasher/Hazard unit - Blue 74 - Main circuit
12. Voltage sensitive switch - Yellow 71 - Main circuit
13. Interior lamp delay - Red 100 - Main circuit
14. Auxiliary lamp relay 87 - Main circuit
15. Seat adjustment relay 4 - Seat adjustment circuit
Main EFI relay 22 - EFI circuit
Fuel pump relay 21 - EFI circuit
