Cruise Control

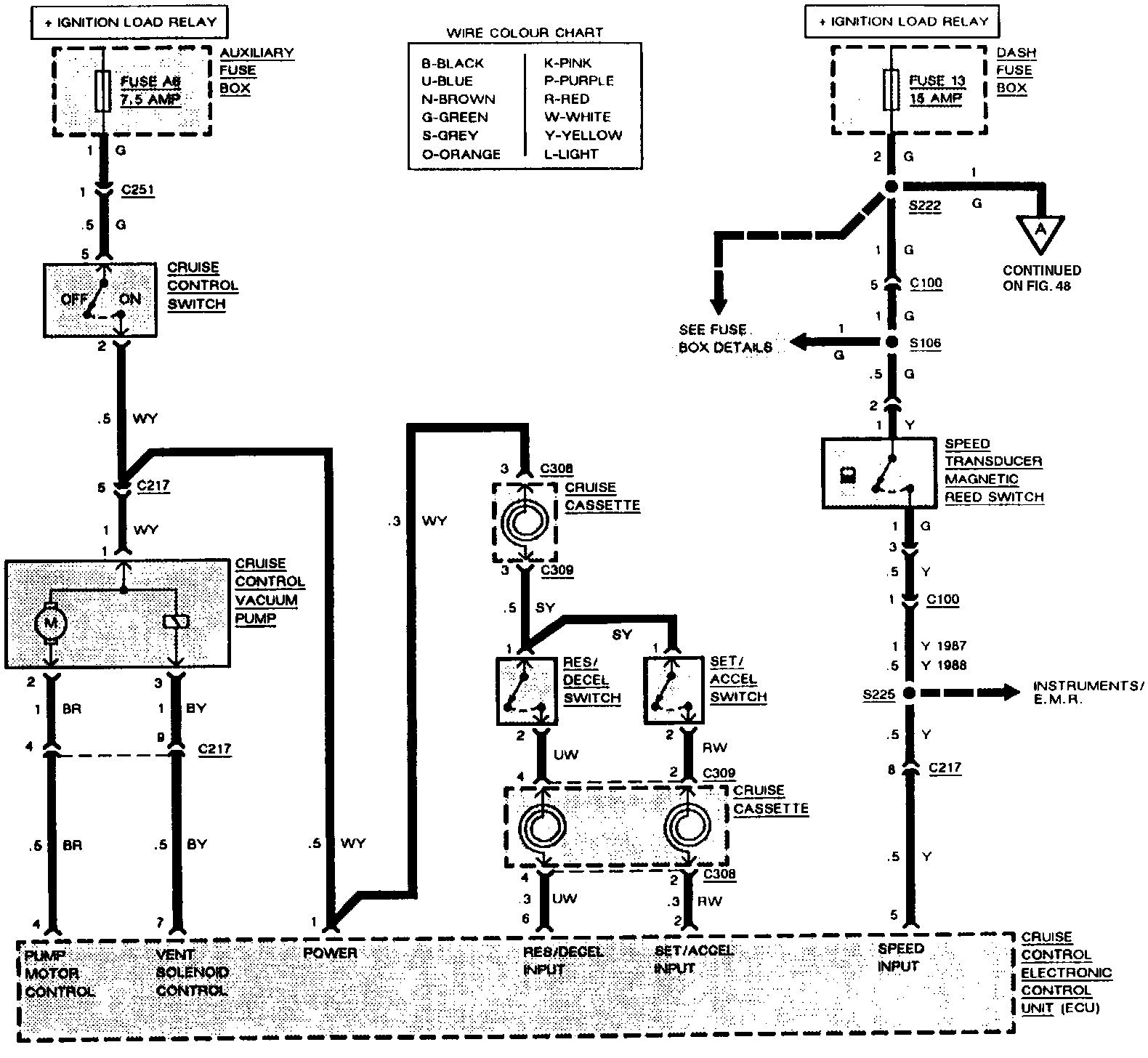

Fig. 47:

Fig. 47

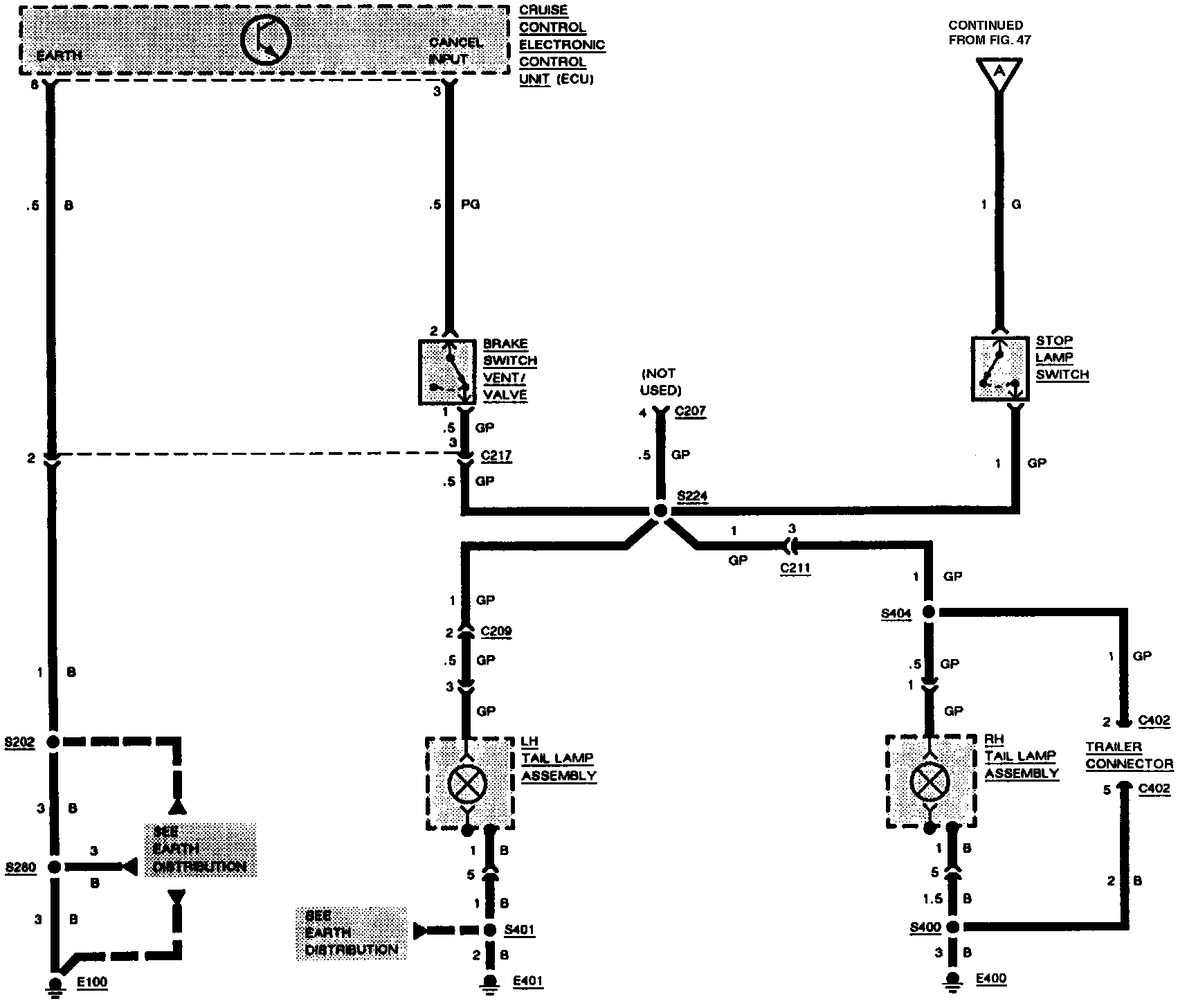

Fig. 48:

Fig. 48

The wiring diagrams relate to the cruise control system and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
