Blower Controls

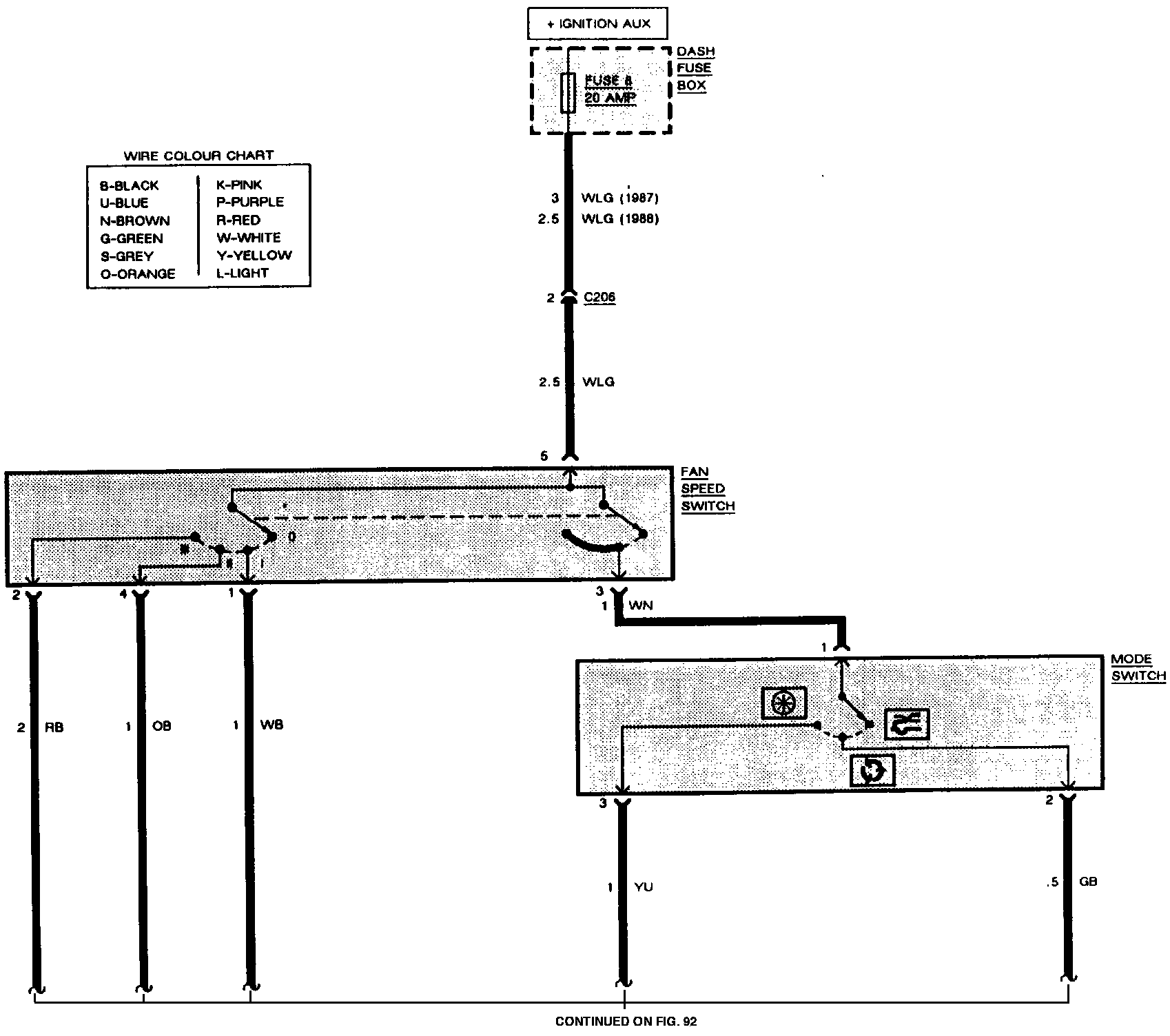

Fig. 91:

Fig. 91

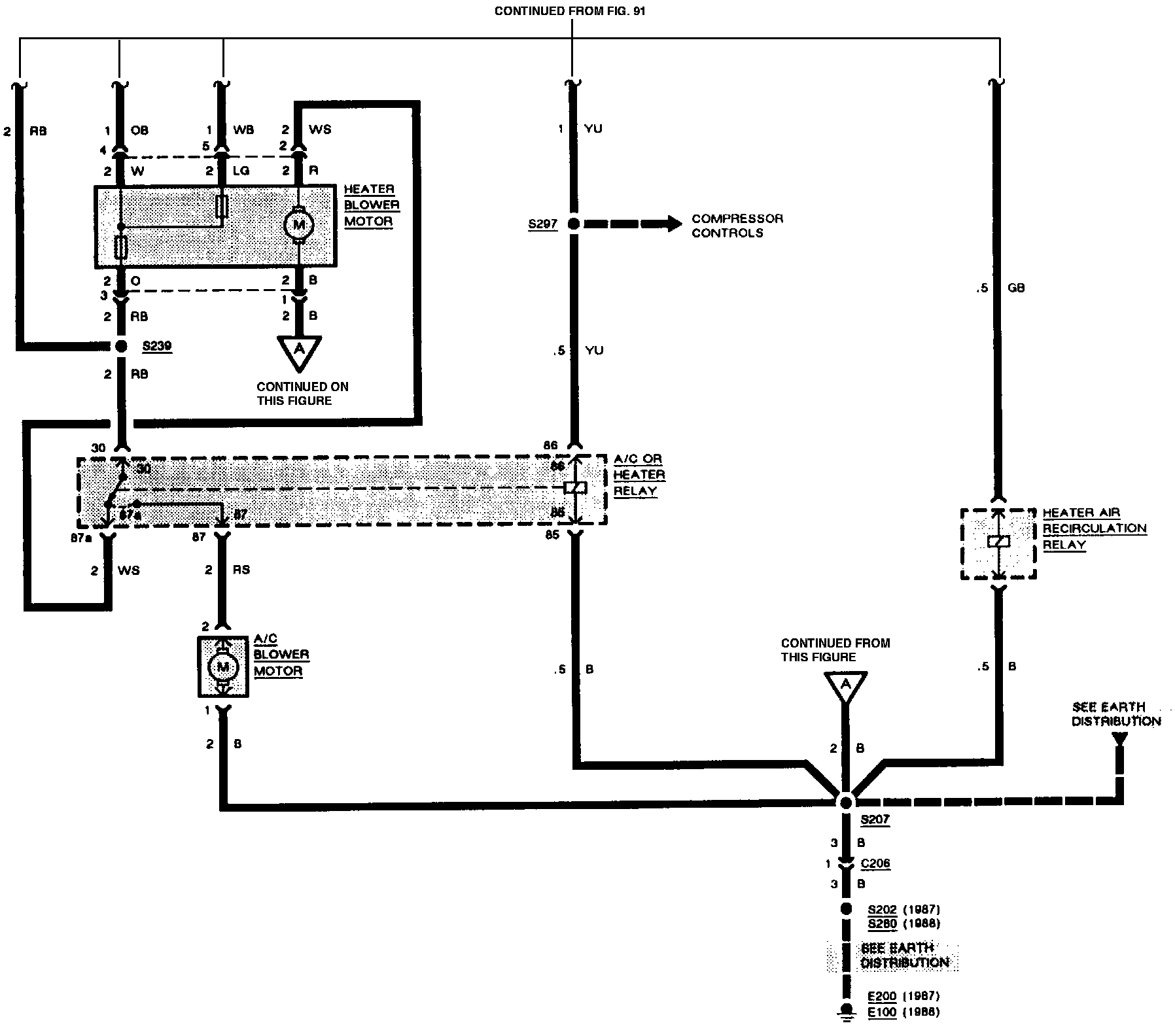

Fig. 92:

Fig. 92

The wiring diagrams relate to the heating and air conditioning system and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle/Diagrams. Diagrams By Figure Number
