Warnings and Indicators

Fig. 55:

Fig. 55

Fig. 56:

Fig. 56

Fig. 57:

Fig. 57

Fig. 58:

Fig. 58

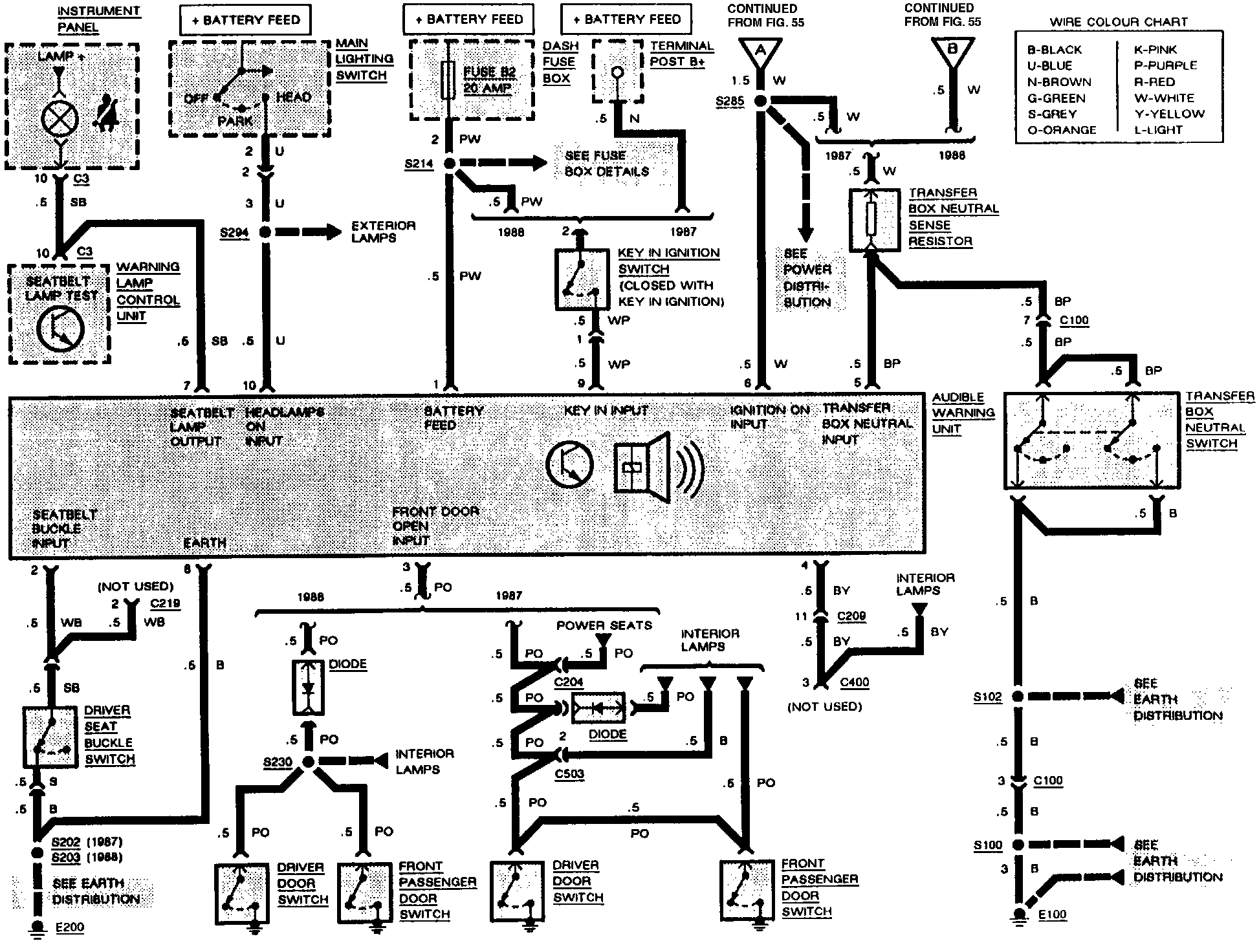

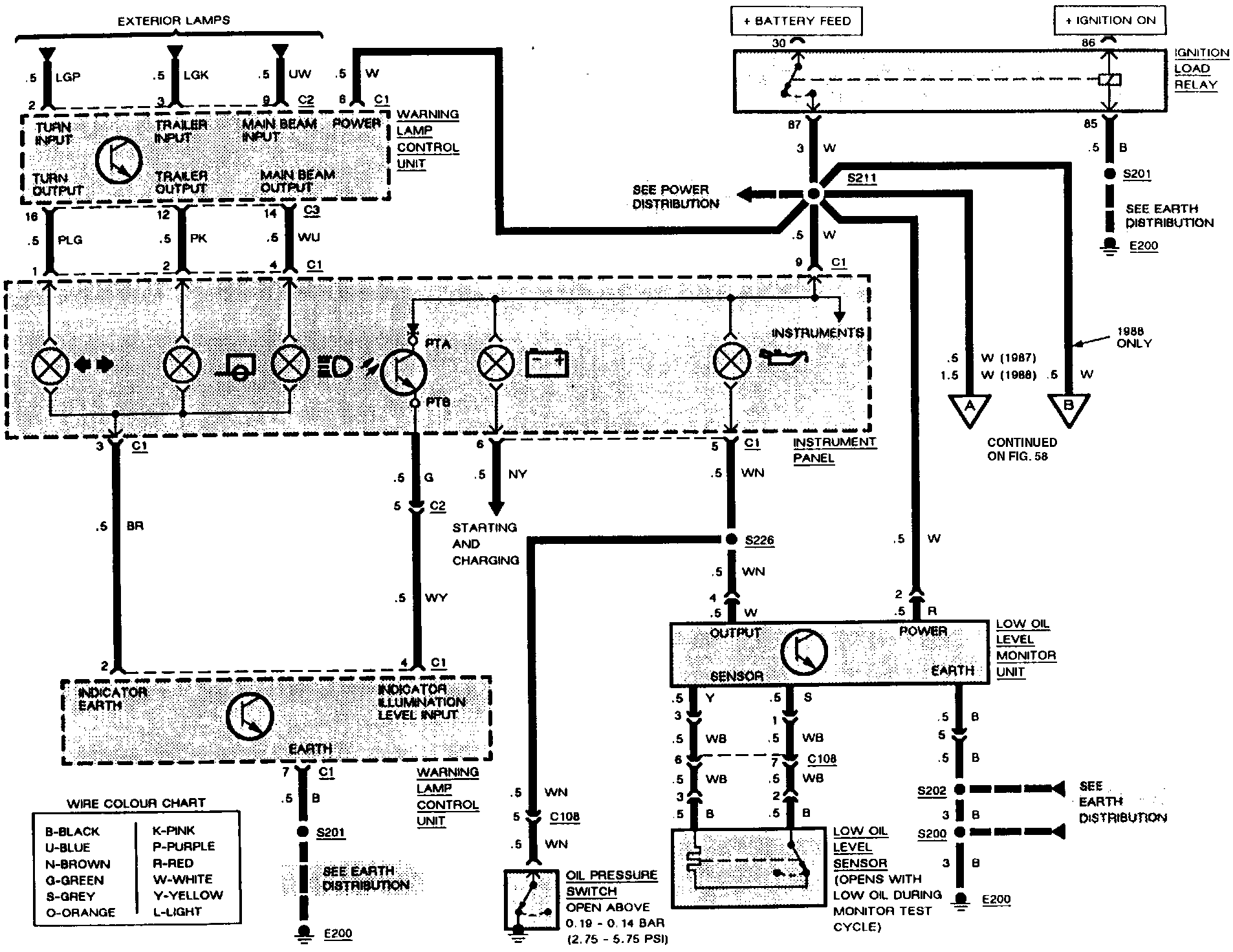

The wiring diagrams relate to the warnings and indicators and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
