Instrument Panel

REMOVE
- Disconnect the battery negative terminal.
- Remove the lower dash panel by releasing the six retaining screws.

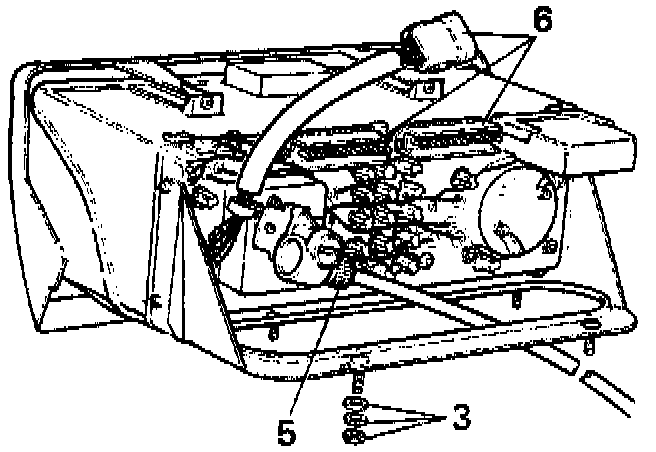

Instrument Panel Rear View:

- Remove the four nuts (3) from under the top dash rail which secure the instrument panel to the vehicle.
- Unclip the panel cowl, from the rear, to provide access to the speedometer cable.
- Disconnect the speedometer cable (5) from the speedometer drive on the back of the instrument case.
- Remove the two large multi-plugs (6) from the printed circuit, and the single plug from the warning lamp control unit.
- Lift the instrument panel from the top dash rail and transfer it to the workbench.


REFIT
- Reverse the removal instructions.
