Horn: Service and Repair

REMOVE
1. Disconnect the battery negative lead.
2. Remove radiator grille.

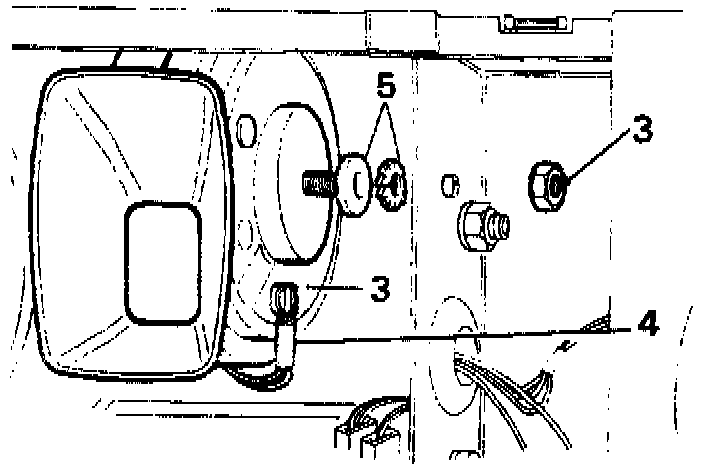

Horn:

3. Remove the nut and withdraw the horn.
4. Disconnect the electrical leads.
5. Remove the plain and serrated washer.

NOTE: Twin horns are fitted. An identification letter is stamped on the front outer rim of the horn; H-high note, L-low note.

REFIT

NOTE: When refitting the horn ensure that the stud location is pushed firmly to the back of the elongated slot to prevent the horn fouling the radiator grille.

1. Reverse removal procedure.
