Underhood Lamp: Service and Repair
REMOVE1. Disconnect the battery negative lead.

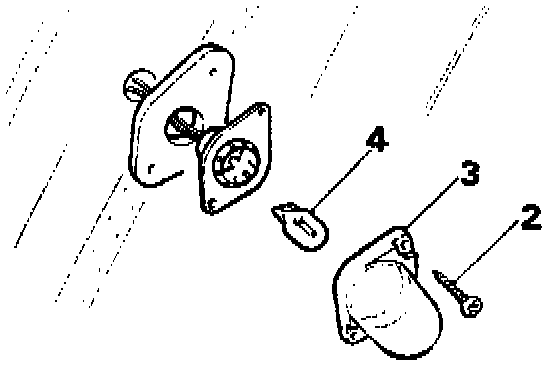

Underhood Lamp:
2. Remove the two securing screws.
3. Remove the lamp glass.
4. Pull the five-watt wedge type bulb from the bulb holder.
5. Disconnect the electrical leads located below the hood lamp switch attached to the inner fender.
6. Pull the rubber grommet off the leads and pull the lamp and leads up through the hood stiffener channel.
REFIT
1. Reverse operations 1 to 6.
NOTE: A piece of bent wire will be needed to pull the electrical leads out of the channel exit hole when fitting a new lamp assembly.
