Ground

Fig. 19:

Fig. 19

Fig. 20:

Fig. 20

Fig. 21:

Fig. 21

Fig. 22:

Fig. 22

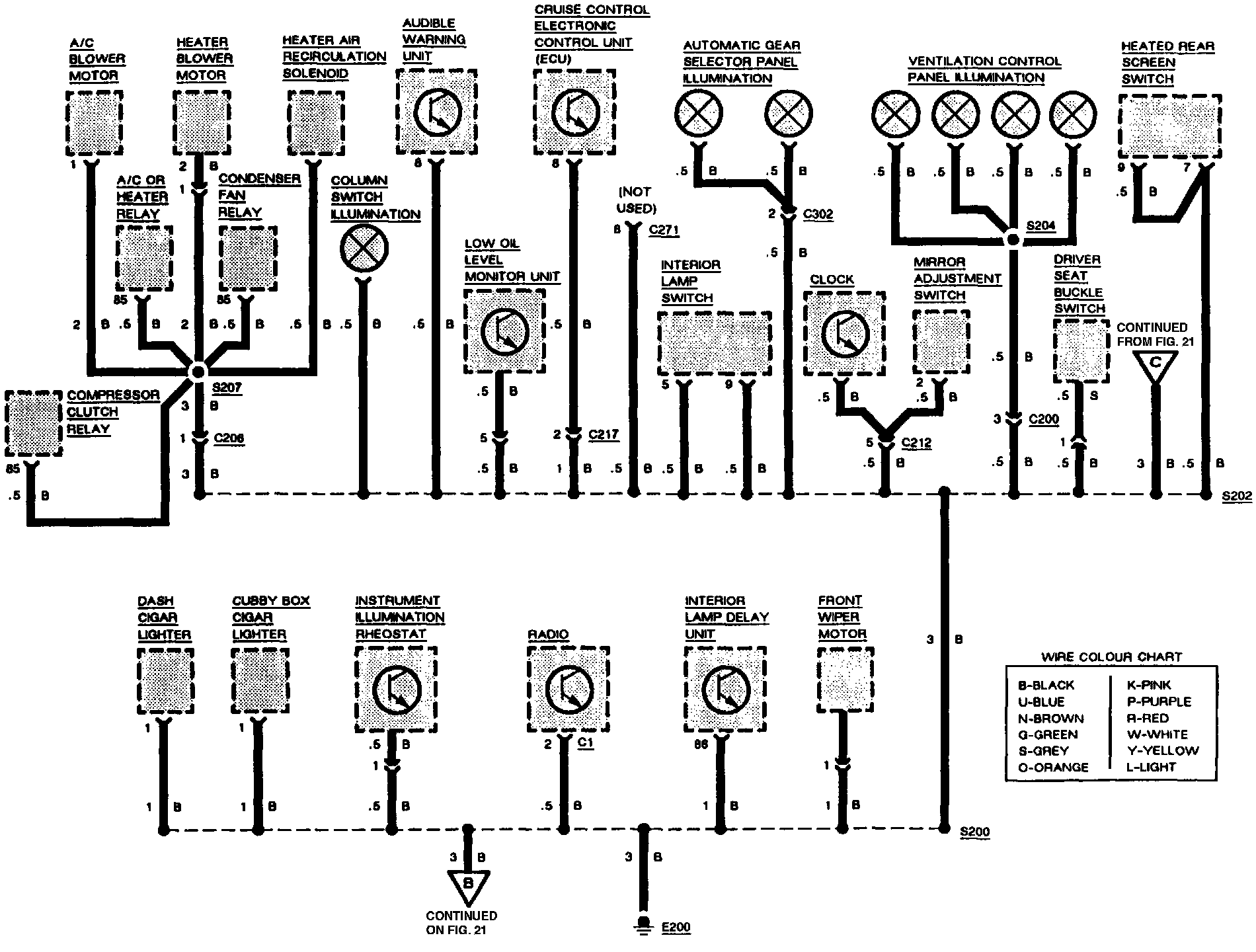

The wiring diagrams relate to ground distribution and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
