Power

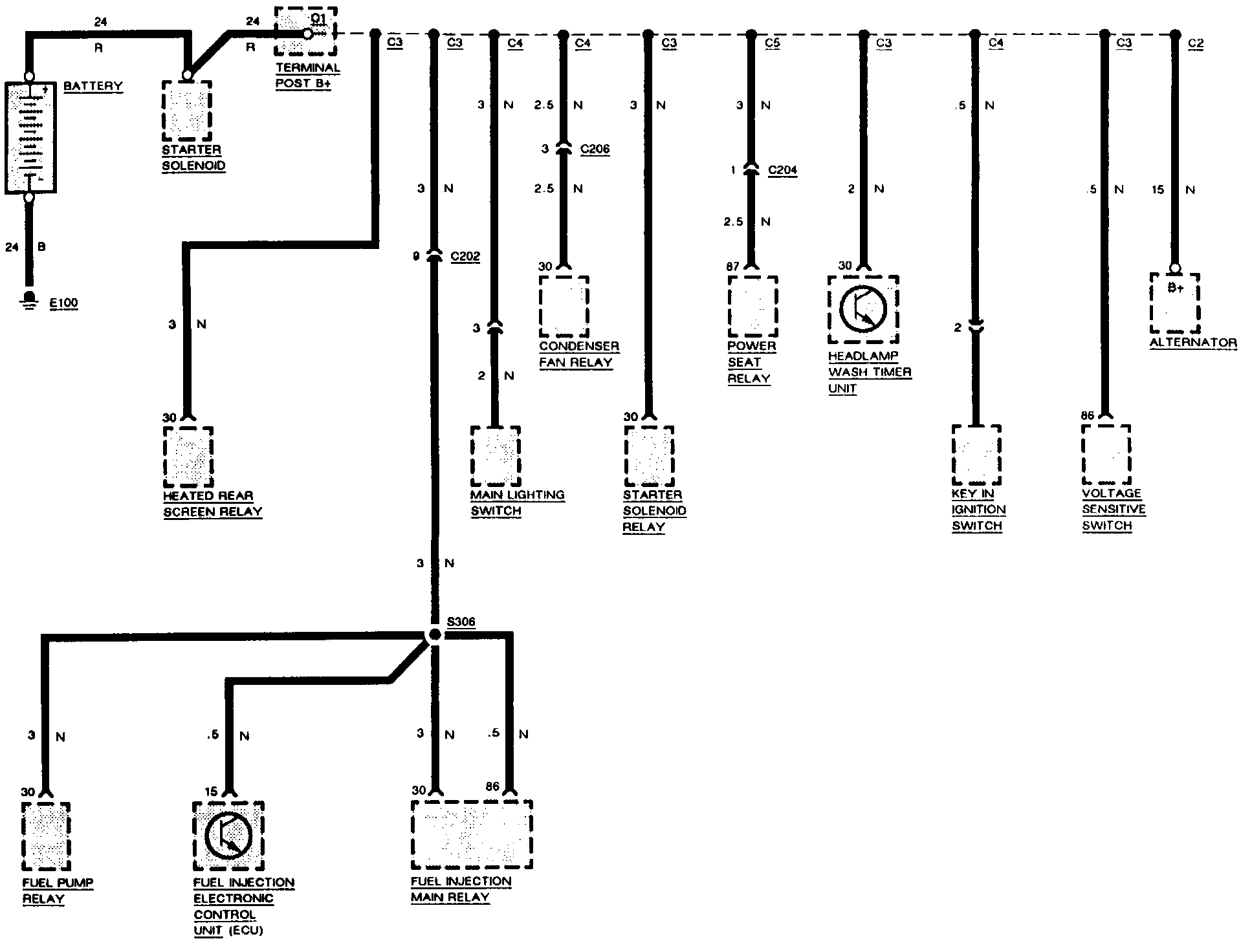

Fig. 1:

Fig. 1

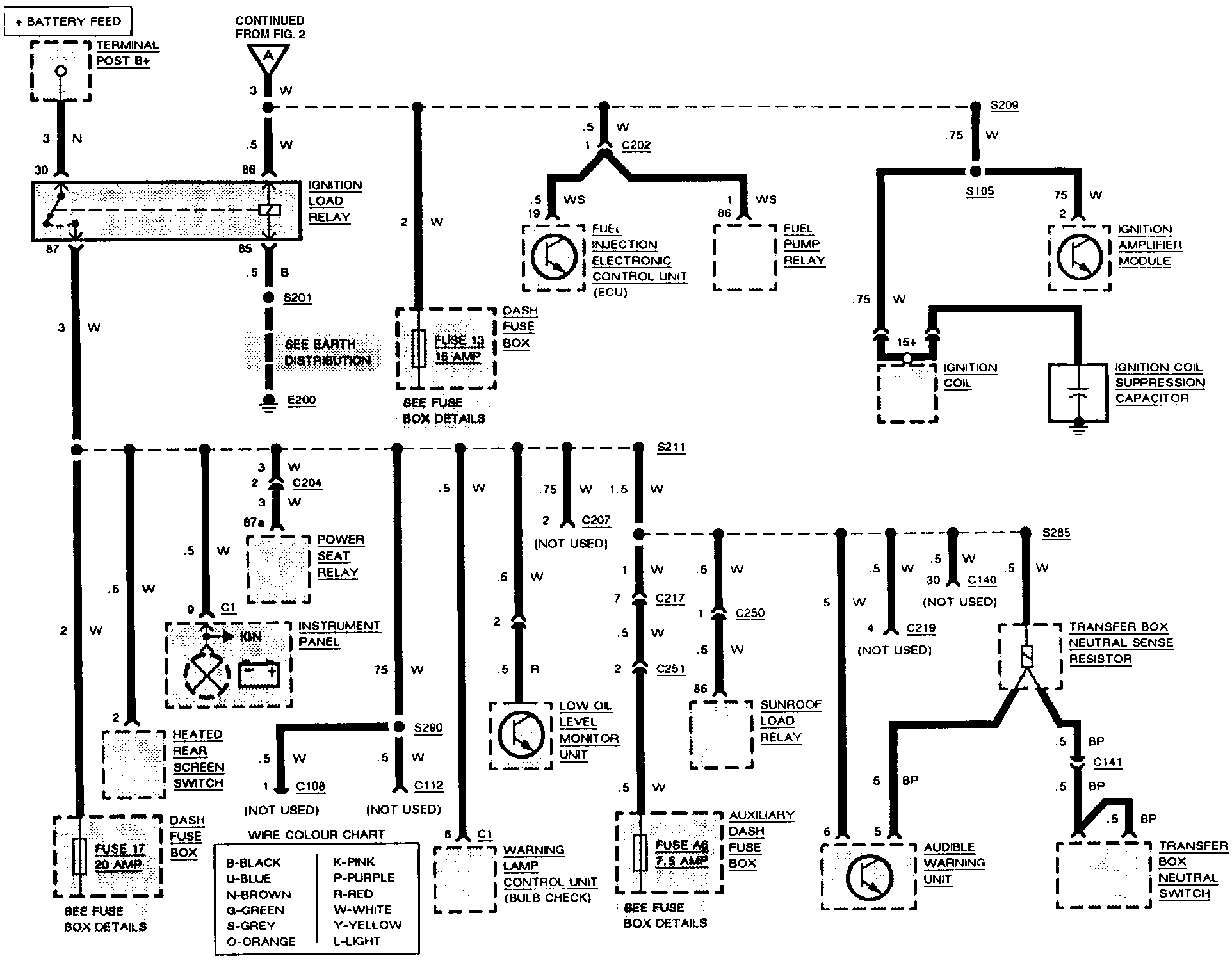

Fig. 2:

Fig. 2

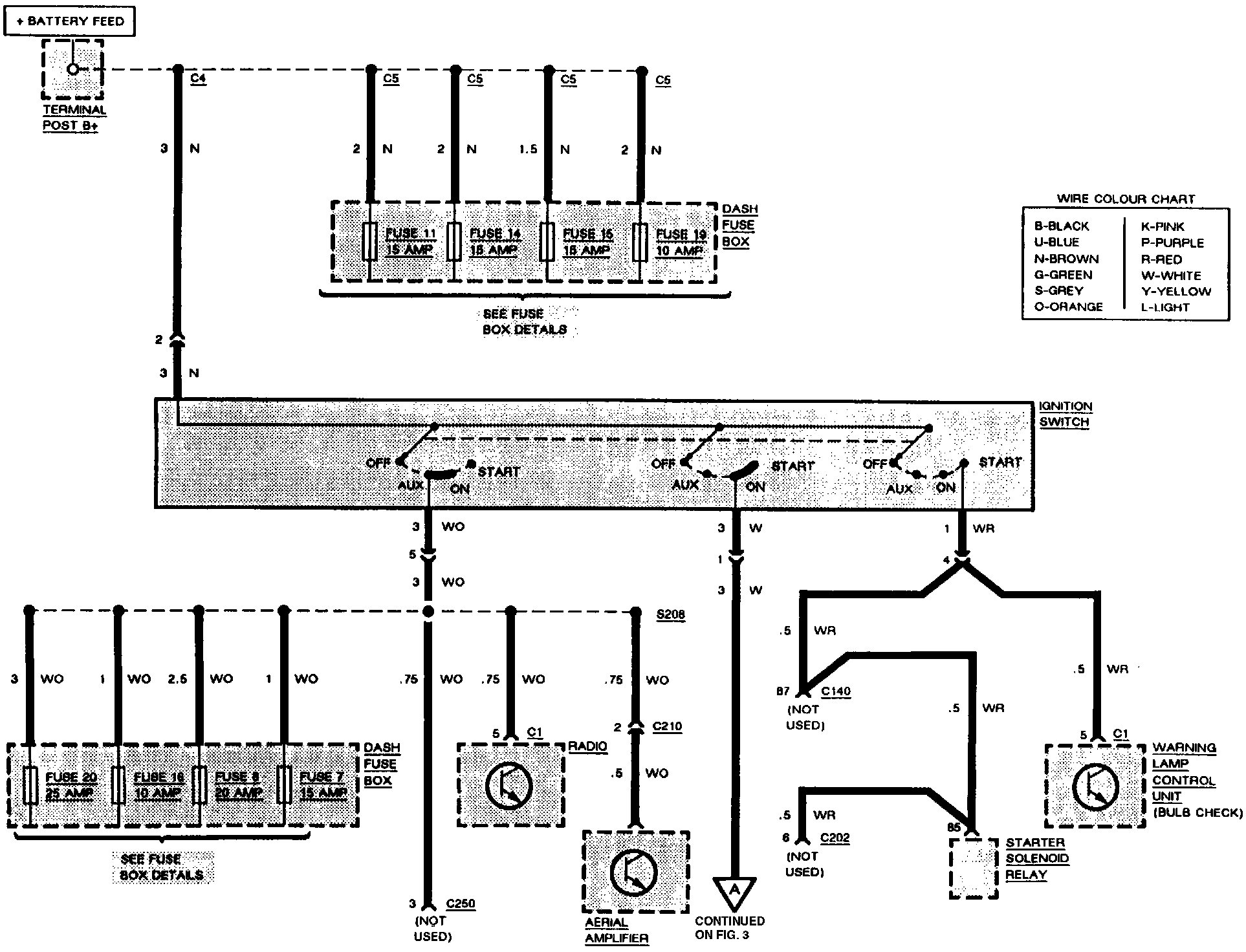

Fig. 3:

Fig. 3

The wiring diagrams relate to power distribution and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
