Transfer Case: Tools and Equipment

Transfer Case Service Tools

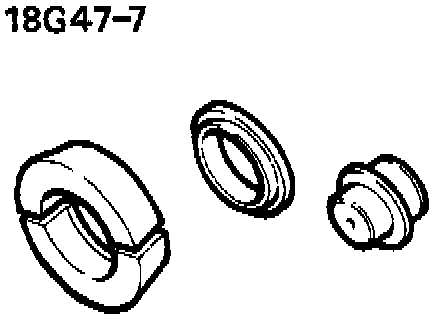

Input gear cluster bearing cones replacer:

18G47-7 Input gear cluster bearing cones remover/replacer

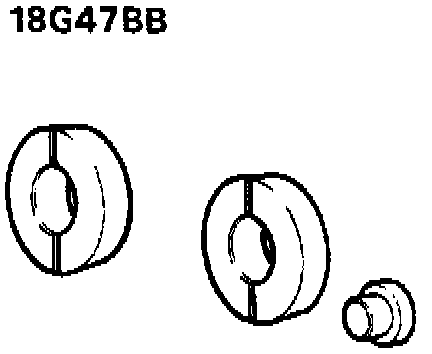

Adaptor center differential remover:

18G47BB-1 Adaptor center differential bearing remover



18G257 Circlip pliers



18G1205 Drive flange wrench



18G1271 Oil seal remover

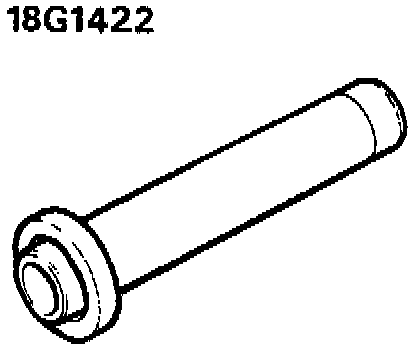

Mainshaft rear oil seal replacer (LT230/Borg Warner):

18G1422 Mainshaft rear oil seal replacer

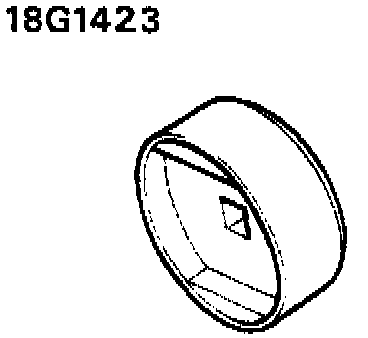

Adaptor socket center differential locknut remover/replacer:

18G1423 Adaptor/socket center differential locknut remover/replacer

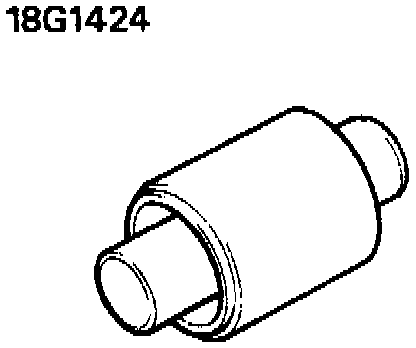

Center differential bearing replacer:

18G1424 Centre differential bearing replacer

Guide studs:

18G1425 Guide studs


MS47 Hand press



MS550 Bearing and oil seal replacer handle

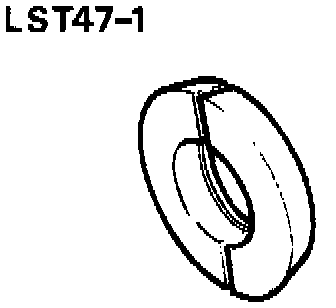

Adaptor-center differential bearing remover:

LST47-1 Adaptor center differential bearing remover

Intermediate gear dummy shaft:

LST104 Intermediate gear dummy shaft

Input gear turning mandrel:

LST105 Input gear mandrel

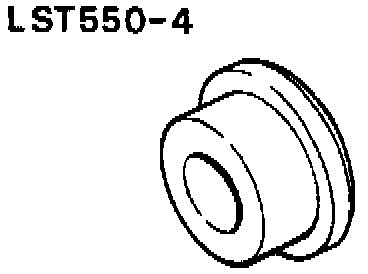

Adaptor-intermediate gear bearing races replacer:

LST550-4 Intermediate gear bearing races replacer

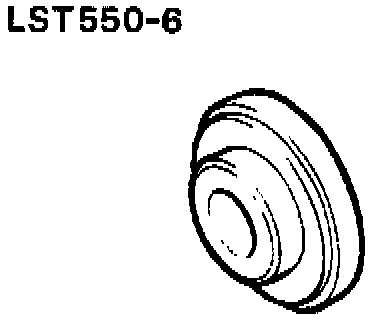

Input shaft oil seal replacer (Borg Warner):

LST550-6 Input shaft oil seal replacer (Borg Warner)
