Front

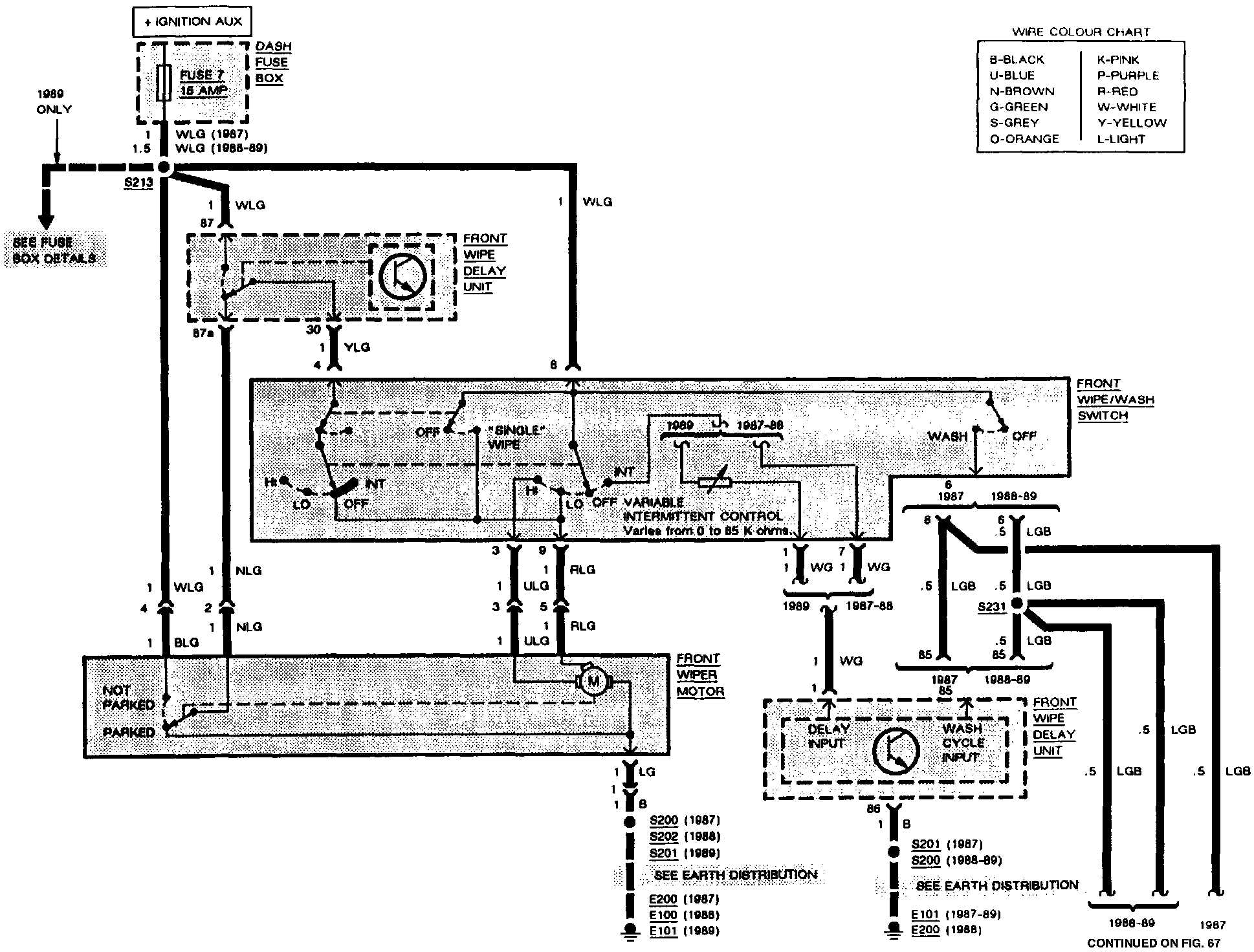

Fig. 66:

Fig. 66

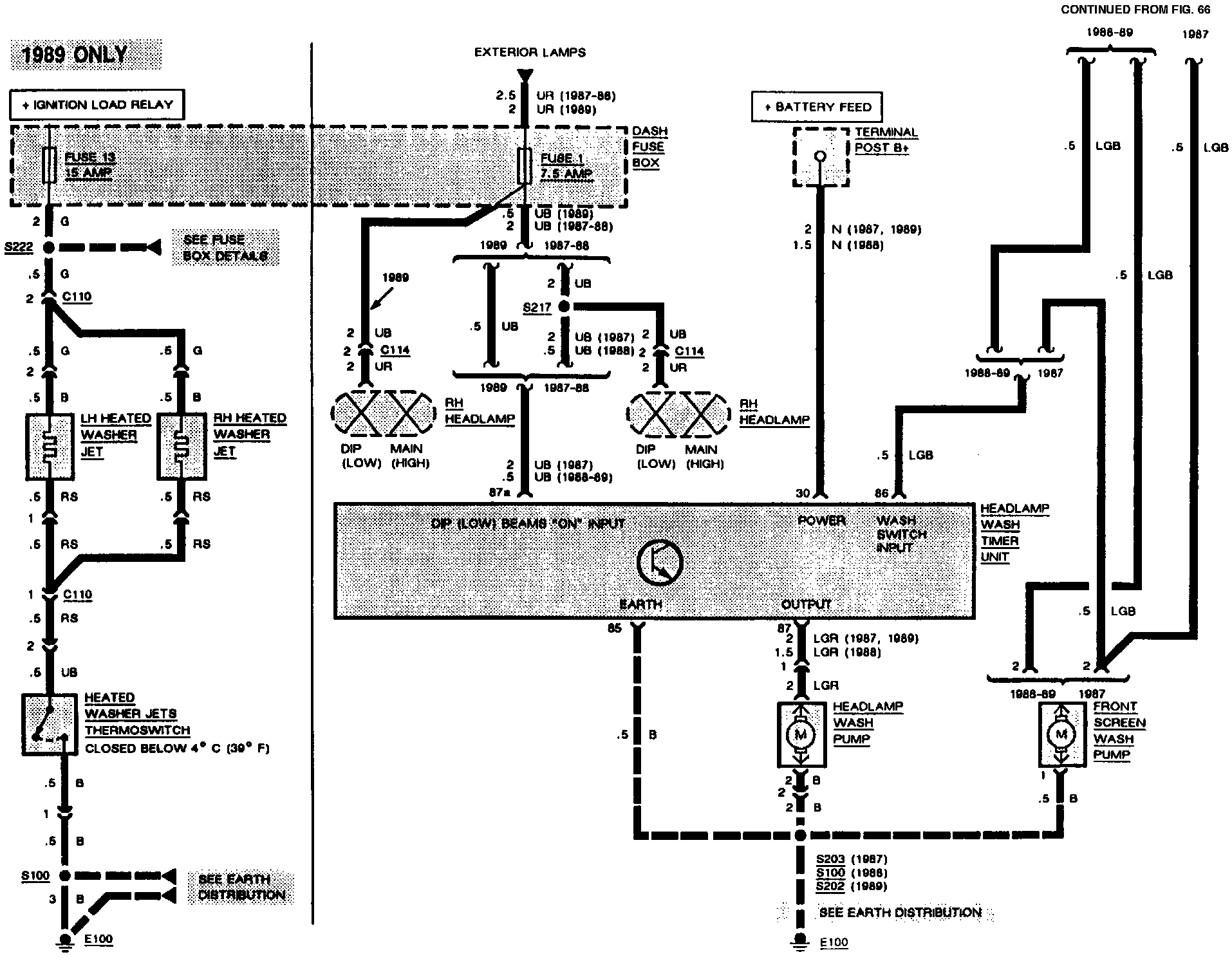

Fig. 67:

Fig. 67

The wiring diagrams relate to the front wash/wipe system and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
