Upper Tailgate

Upper Tailgate

Remove
1. Disconnect the battery negative lead.
2. Remove the tailgate wiper arm.

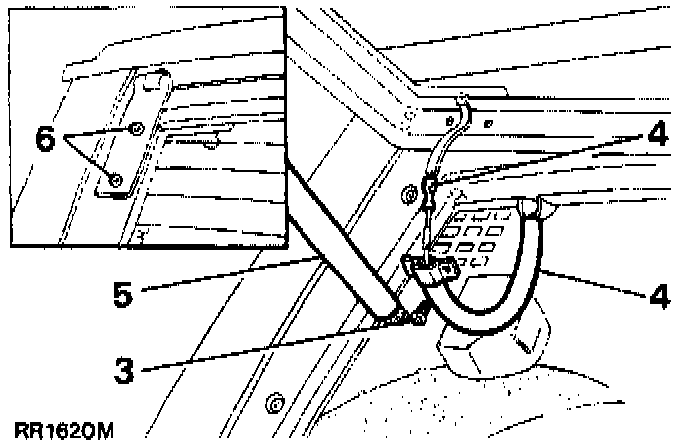

Upper Tailgate Fasteners:

3. Open the tailgate and remove the four screws securing the two rear screen electrical lead shrouds located at either end of the tailgate.
4. Maneuver the shroud away from the screen and out of the leadlining to reveal the electrical connections, disconnect the leads.
5. Pry the two stays off the tailgate.

CAUTION: If a tailgate stay is weak, DO NOT attempt to repair the unit. Fit a replacement.

6. Remove the four hinge to tailgate screws.
7. Lift the upper tailgate clear.

Refit
1. Reverse the removal instructions.
