System Diagram

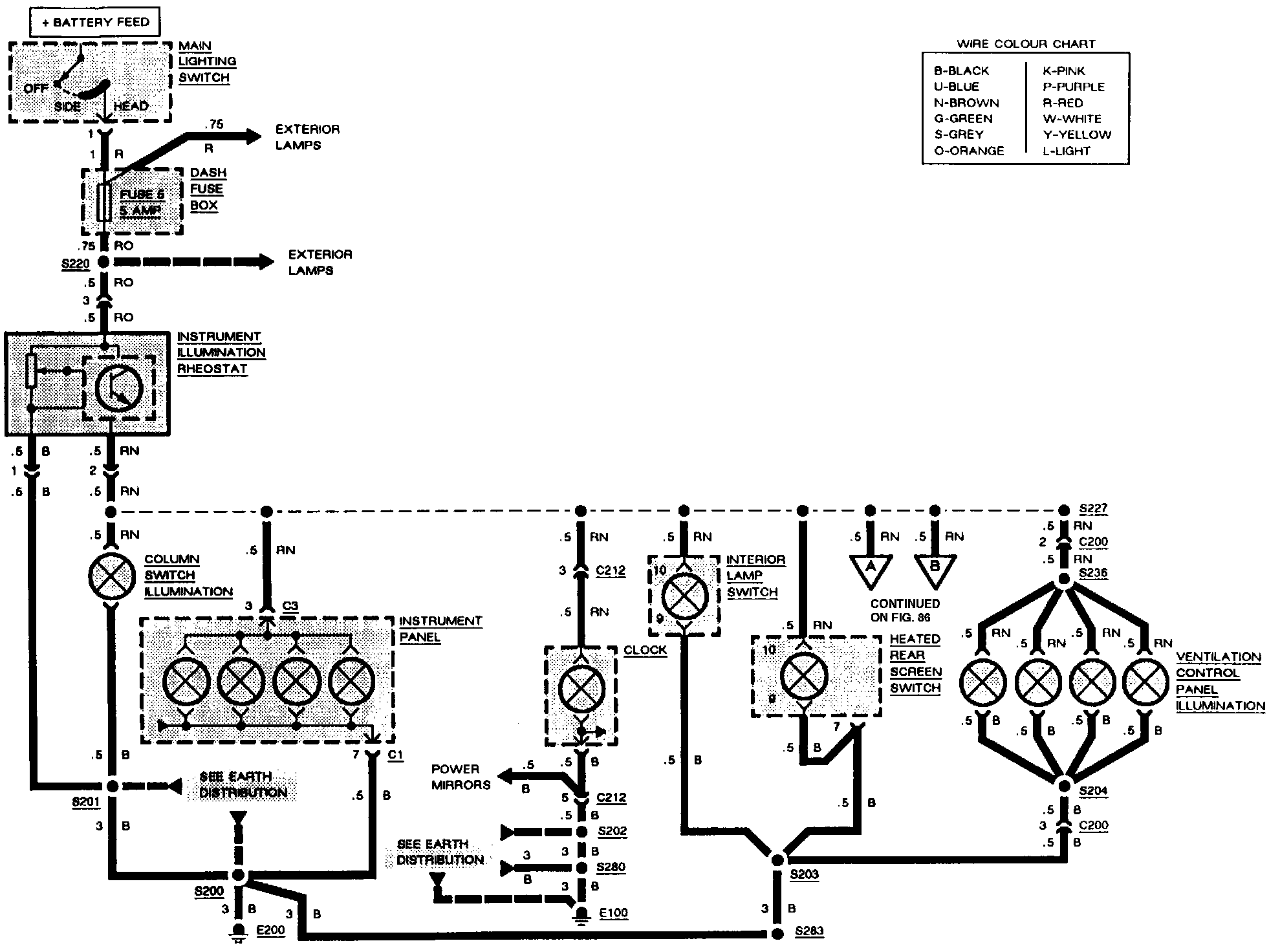

Fig. 85:

Fig. 85

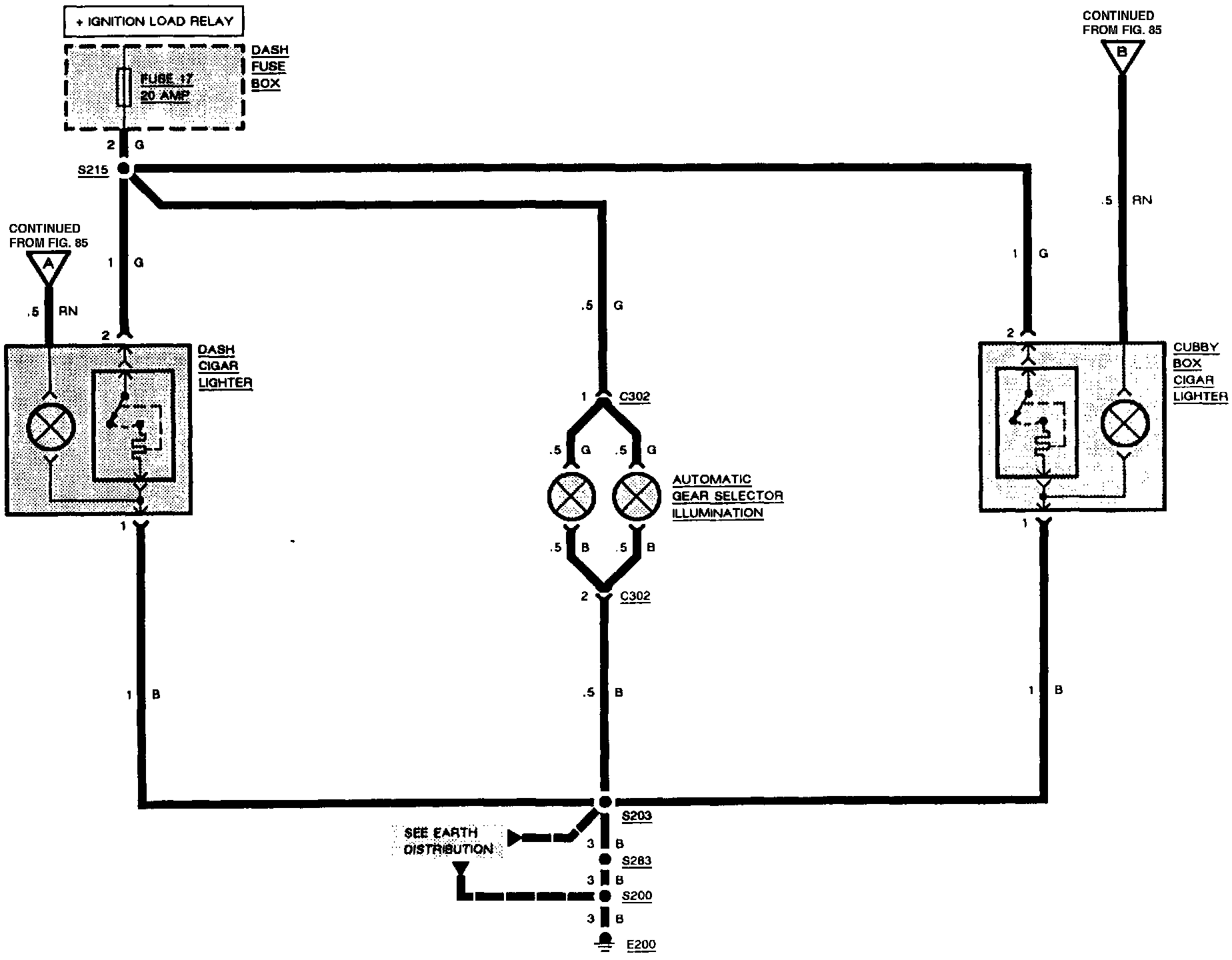

Fig. 86:

Fig. 86

Fig. 87:

Fig. 87

The wiring diagrams relate to the interior lighting and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
