Power Locks

Fig. 107:

Fig. 107

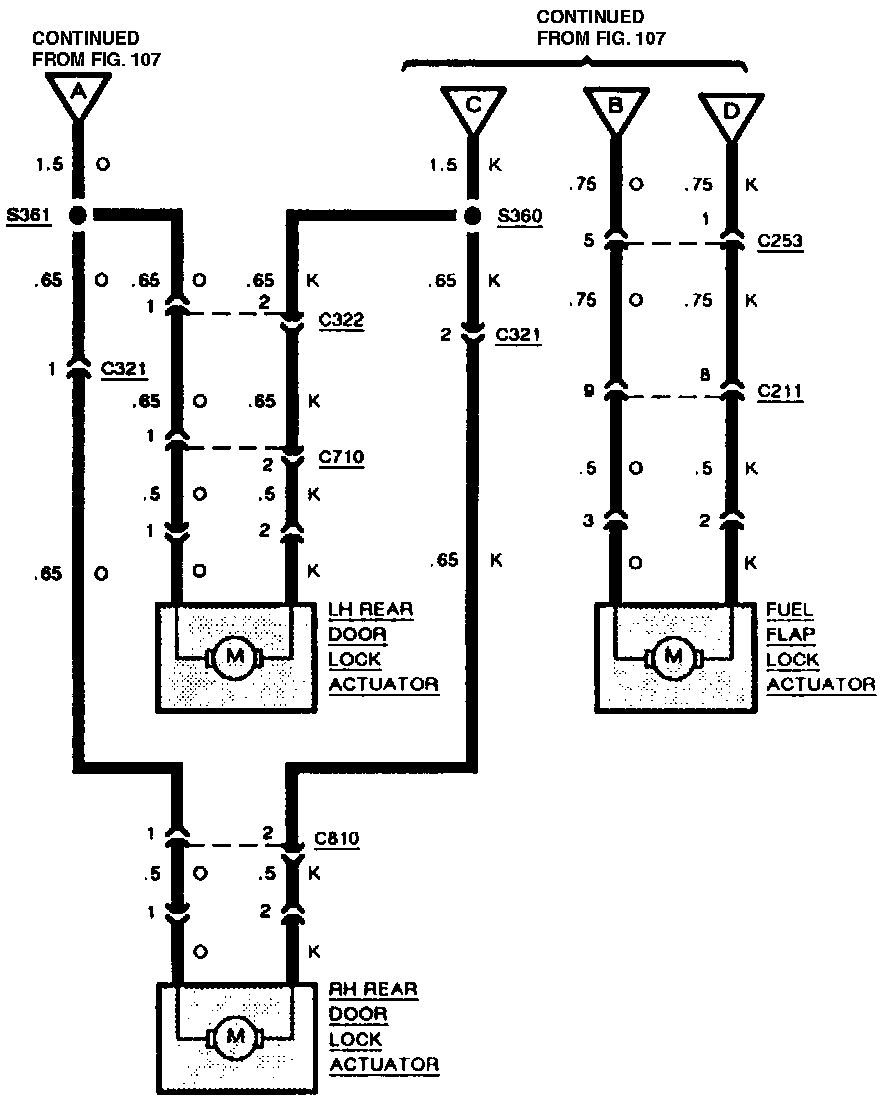

Fig. 108:

Fig. 108

The wiring diagrams relate to the power locking system and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
