Blower Motor: Service and Repair
REMOVE1. Remove the heater unit.
2. Disconnect the multiplug and remove the red and black leads from the multiplug.

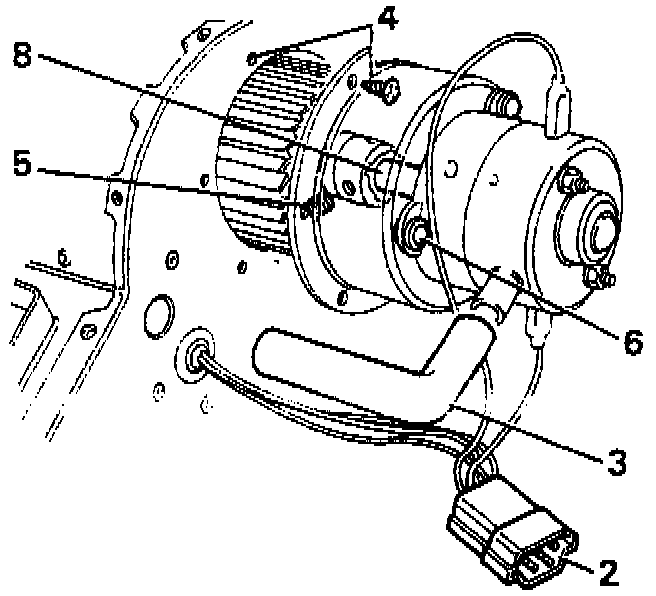

Blower Motor:
3. Disconnect the air cooling hose.
4. Remove five screws and withdraw the fan and motor assembly.
5. Loosen two set screws securing the fan to the motor shaft and remove the fan.
6. Drill out three pop rivets and remove the fan motor.
REFIT
1. Locate the fan motor and secure using suitable pop rivets.
2. Engage the fan motor shaft into the boss on the fan and secure the set screws.
3. Locate the fan motor in position, engaging the fan shaft into the bearing.
4. Hold the fan motor firmly in position and check that the fan rotates freely. If necessary, adjust the position of the fan on the motor shaft.
5. Align the air cooling hose connection and refit the five screws securing the fan motor assembly.
6. Connect the air cooling hose.
7. Reconnect the electrical leads.
8. Refit the heater unit.
