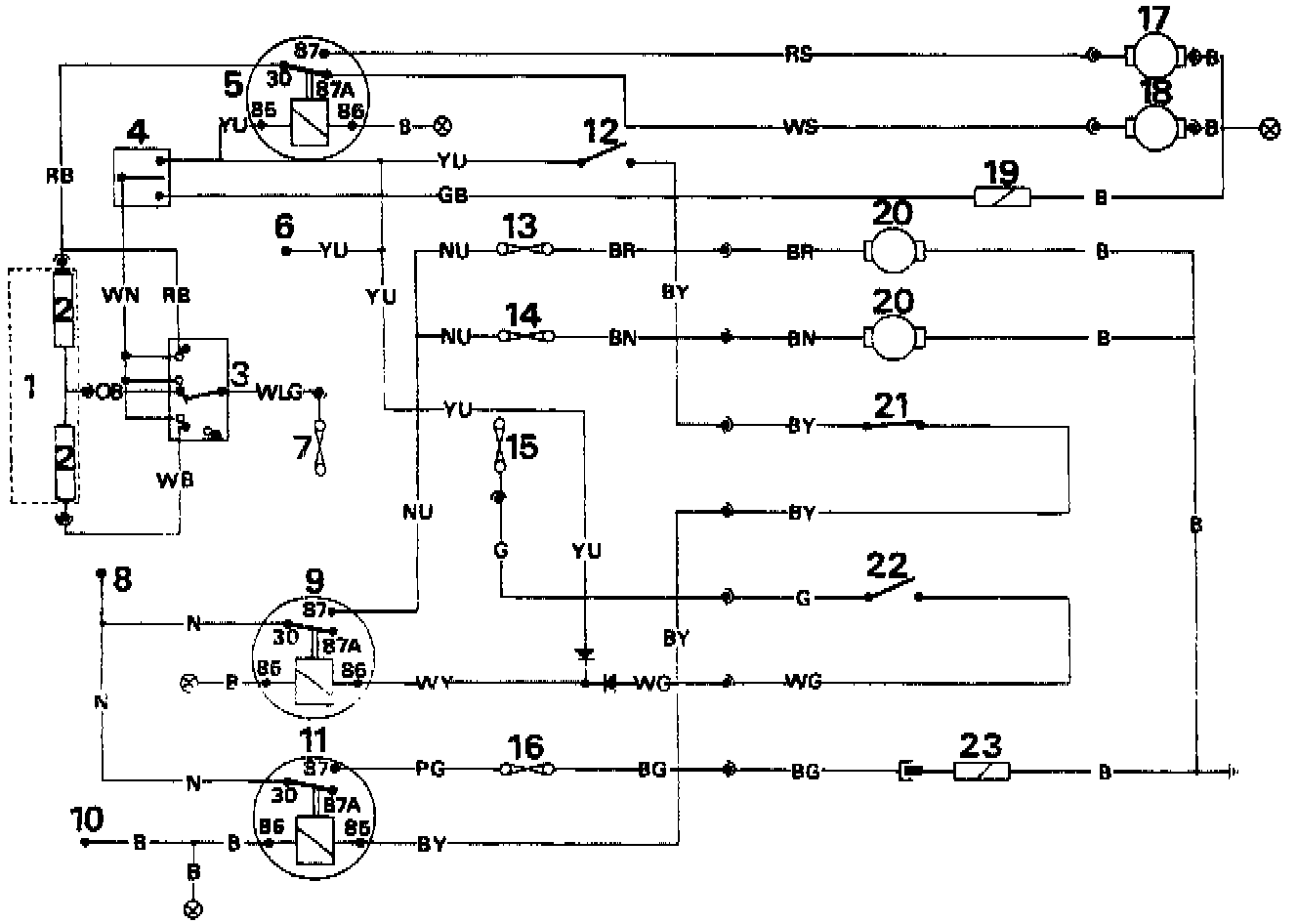

Air Conditioning

1. Heater unit.
2. Resistors.
3. Fan speed switch
4. Air conditioning/re-circulating/fresh air-switch.
5. Air conditioning/heater relay.
6. Cable connection to ECU.
7. Fuse 8-main fuse panel.
8. Pick up point main cable connection.
9. Fan relay.
10. Ground-via main cable.
11. Compressor clutch relay.
12. Thermostat.
13. Fuse Al-auxiliary fuse panel.
14. Fuse A2-auxiliary fuse panel.
15. Fuse 13-main fuse panel.
16. Fuse A3-auxiliary fuse panel.
17. Air conditioning motor - dashboard unit.
18. Heater motor.
19. Heater recirculating solenoid.
20. Condenser fan motors.
21. High pressure switch.
22. Engine water temperature sensor.
23. Compressor clutch.

Cable Color Code
B Black
G Green
P Purple
Y Yellow
U Blue
S Grey
R Red
L Light
N Brown
O Orange
W White

The last letter of a color code denotes the tracer.
