Headlamp: Adjustments

Headlamp beam setting should only be carried out by qualified person using suitable beam setting equipment.

Headlamp:

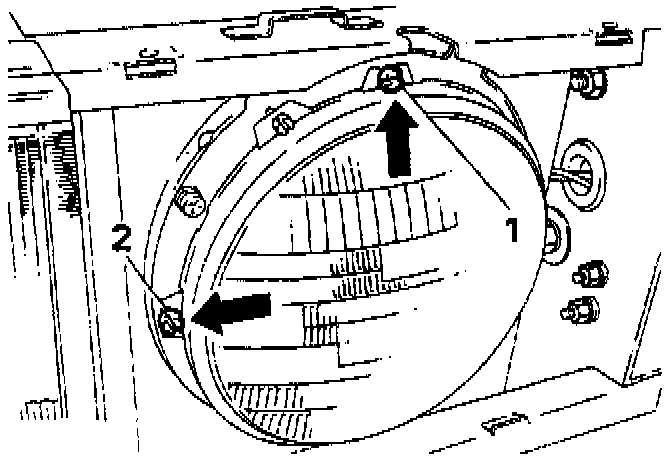

1. Turn the top adjusting screw counter-clockwise to lower the beam, clockwise to raise the beam.
2. Turn the side adjusting screw counter-clockwise to move the beam to the left, clockwise to move the beam to the right.
