Tail Lamp: Service and Repair

REMOVE
1. Disconnect the battery negative lead.

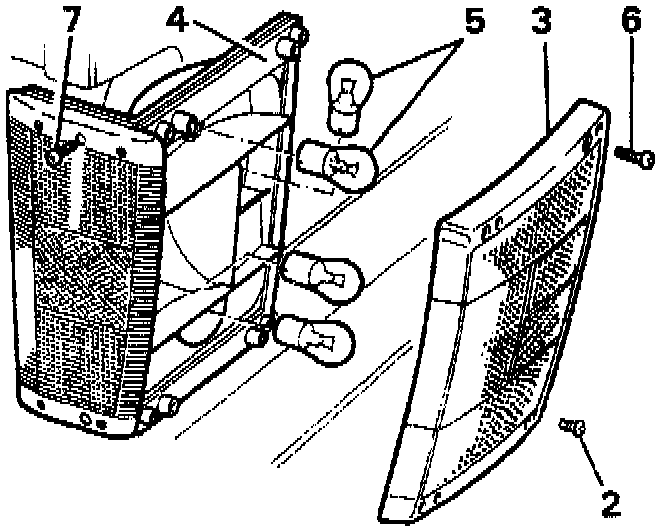

Tail Lamp:

2. Remove the four lens retaining screws.
3. Remove lens.
4. Remove sealing rubber, if required.

NOTE: To remove the sealing rubber complete it is necessary to remove the side marker lens.

5. Remove the bulbs.
6. Remove the four screws securing the lamp unit to the body.
7. Remove the two through-screws from the reflector side, which also secure the lamp unit to the body.
8. Ease the lamp unit forward and disconnect leads at moulded connectors.

REFIT
1. Reverse the removal procedure.
