Ground

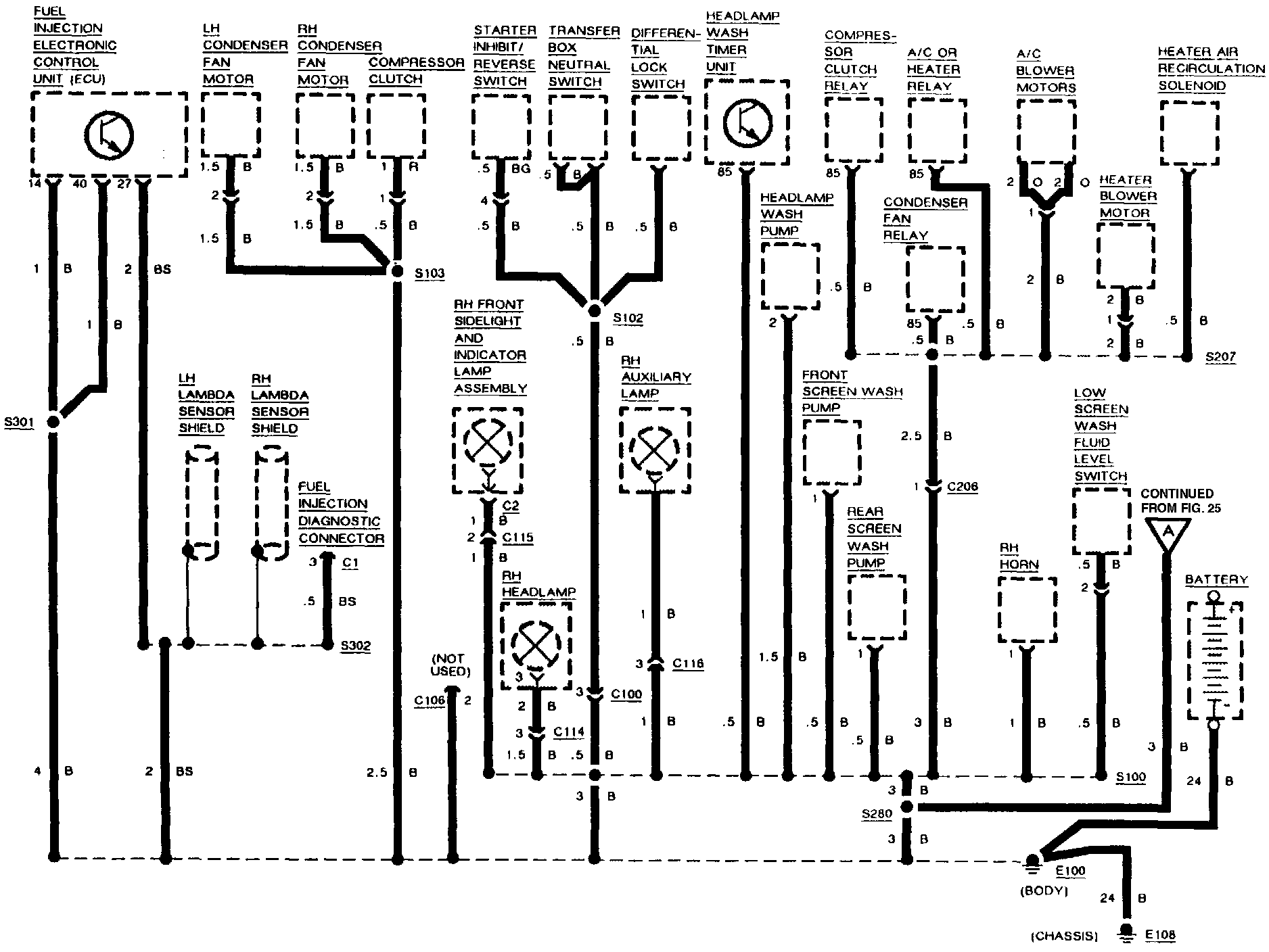

Fig. 23:

Fig. 23

Fig. 24:

Fig. 24

Fig. 25:

Fig. 25

Fig. 26:

Fig. 26

The wiring diagrams relate to ground distribution and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
