Power

Fig. 4:

Fig. 4

Fig. 5:

Fig. 5

Fig. 6:

Fig. 6

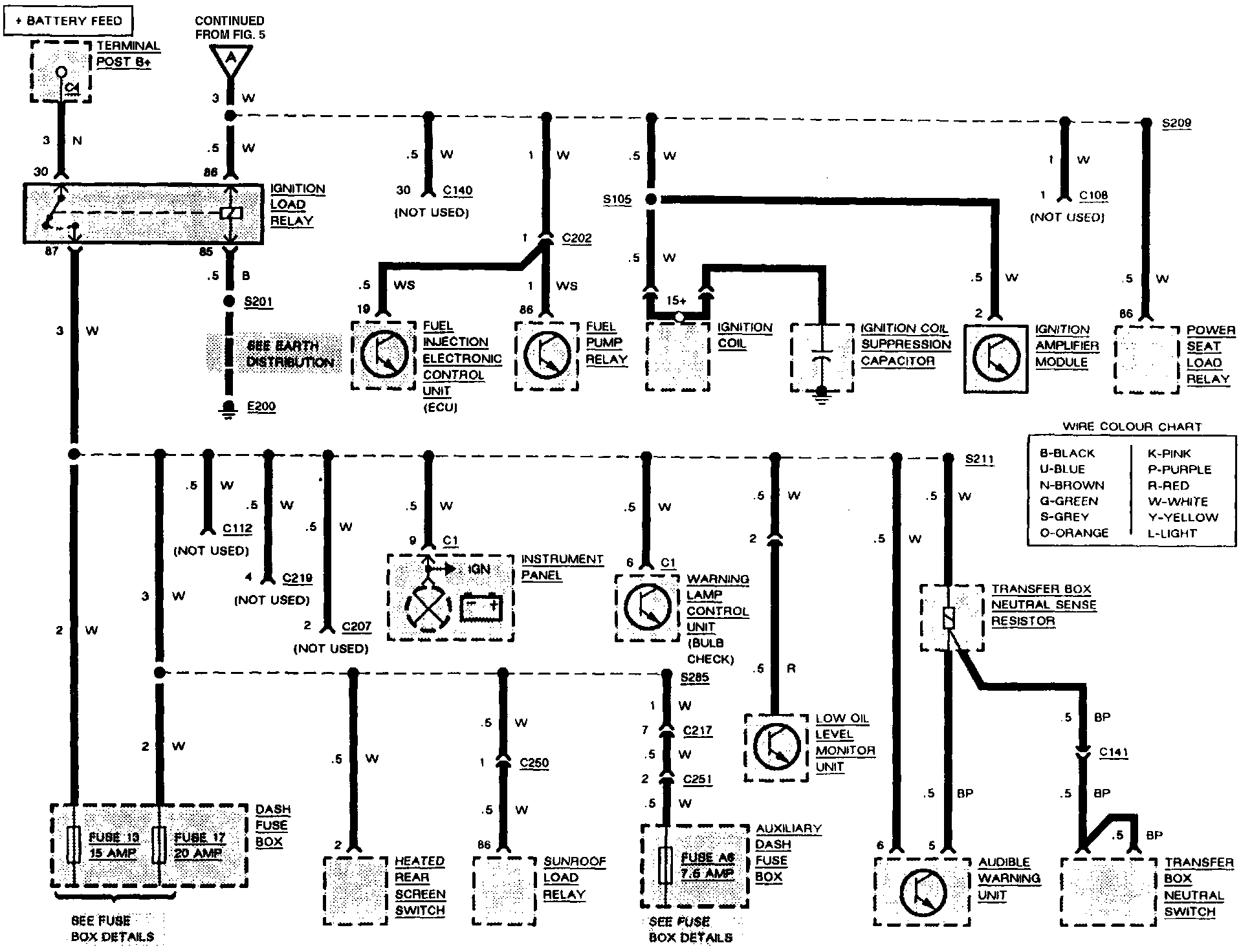

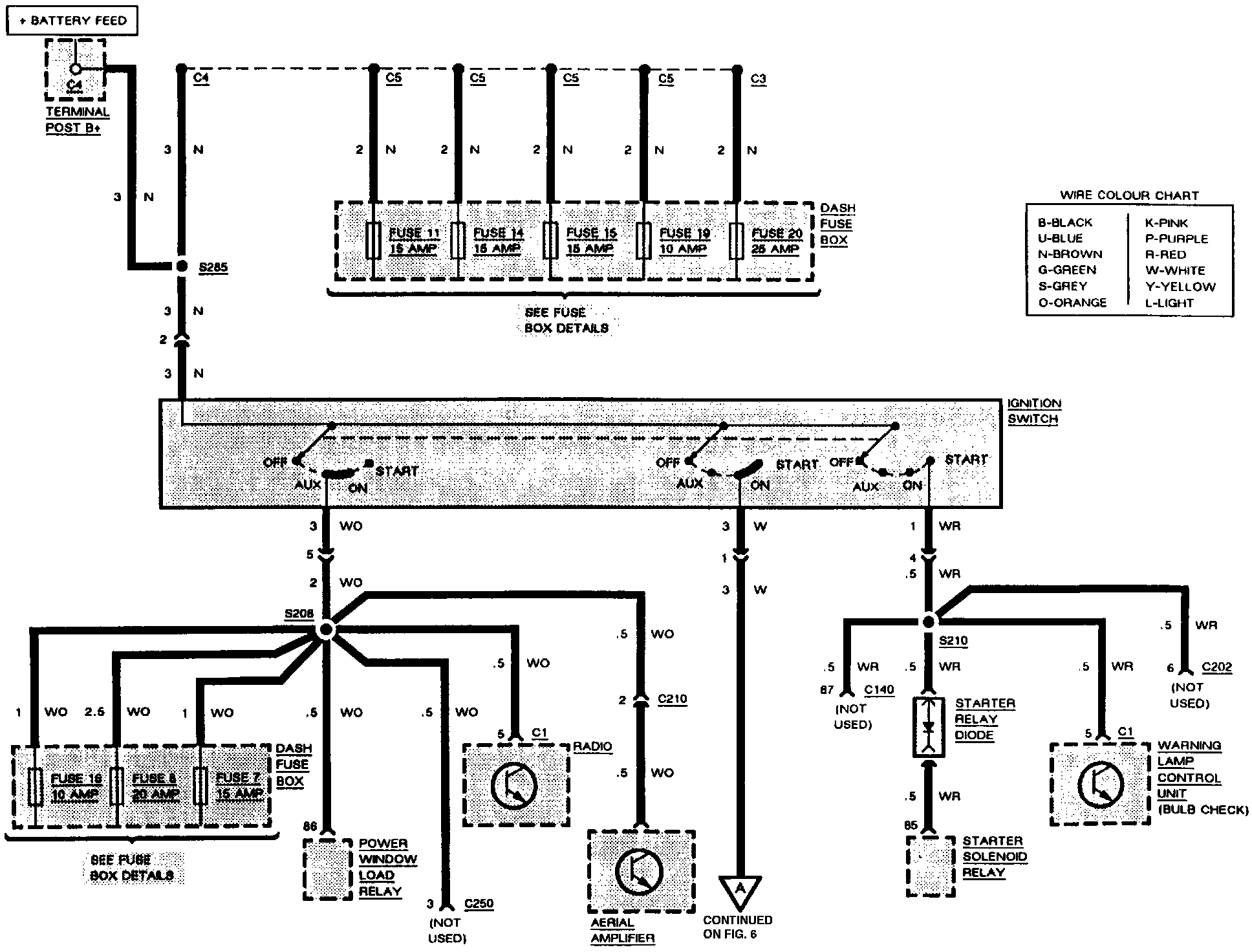

The wiring diagrams relate to power distribution and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
