Electrical Diagrams

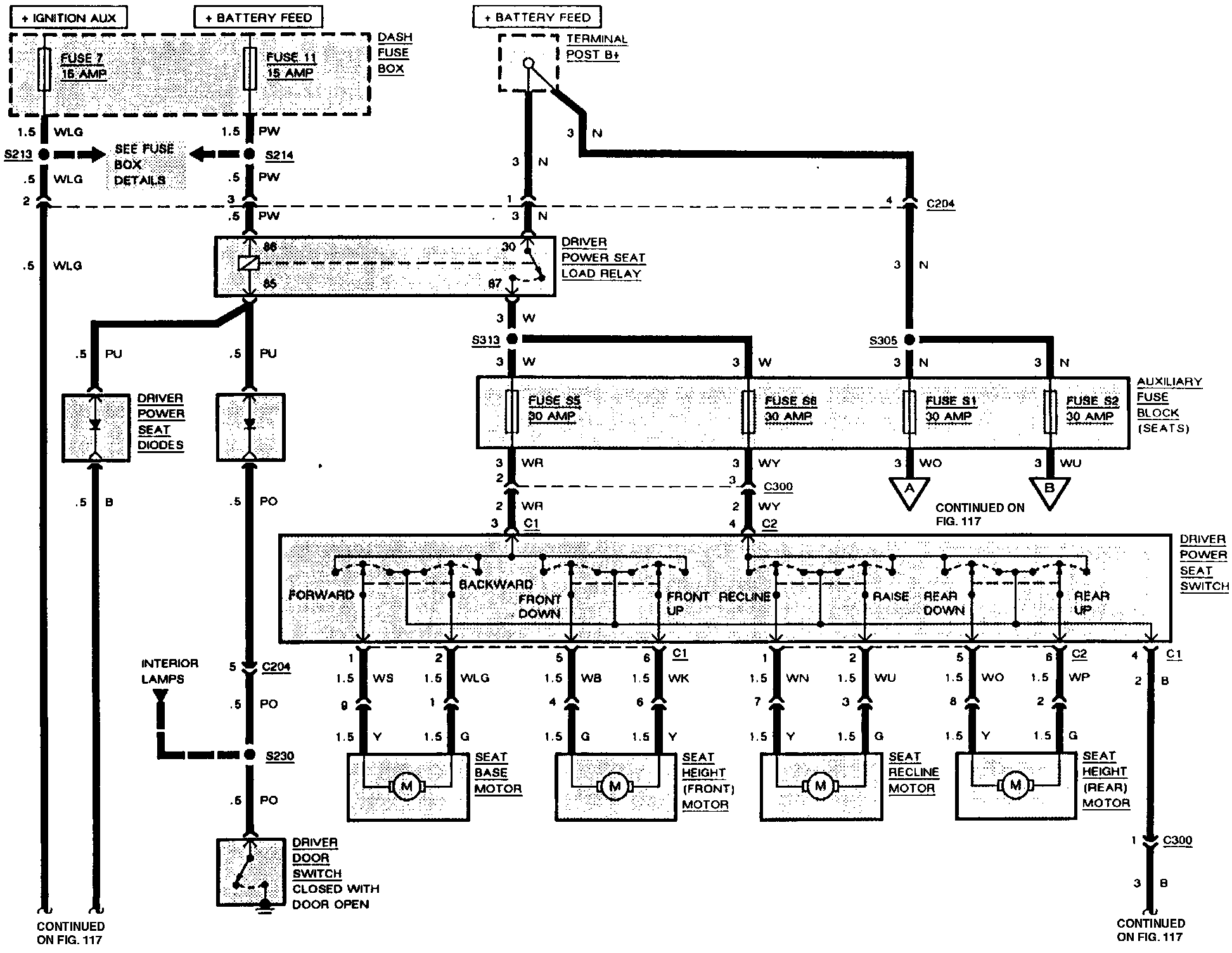

Fig. 116:

Fig. 116

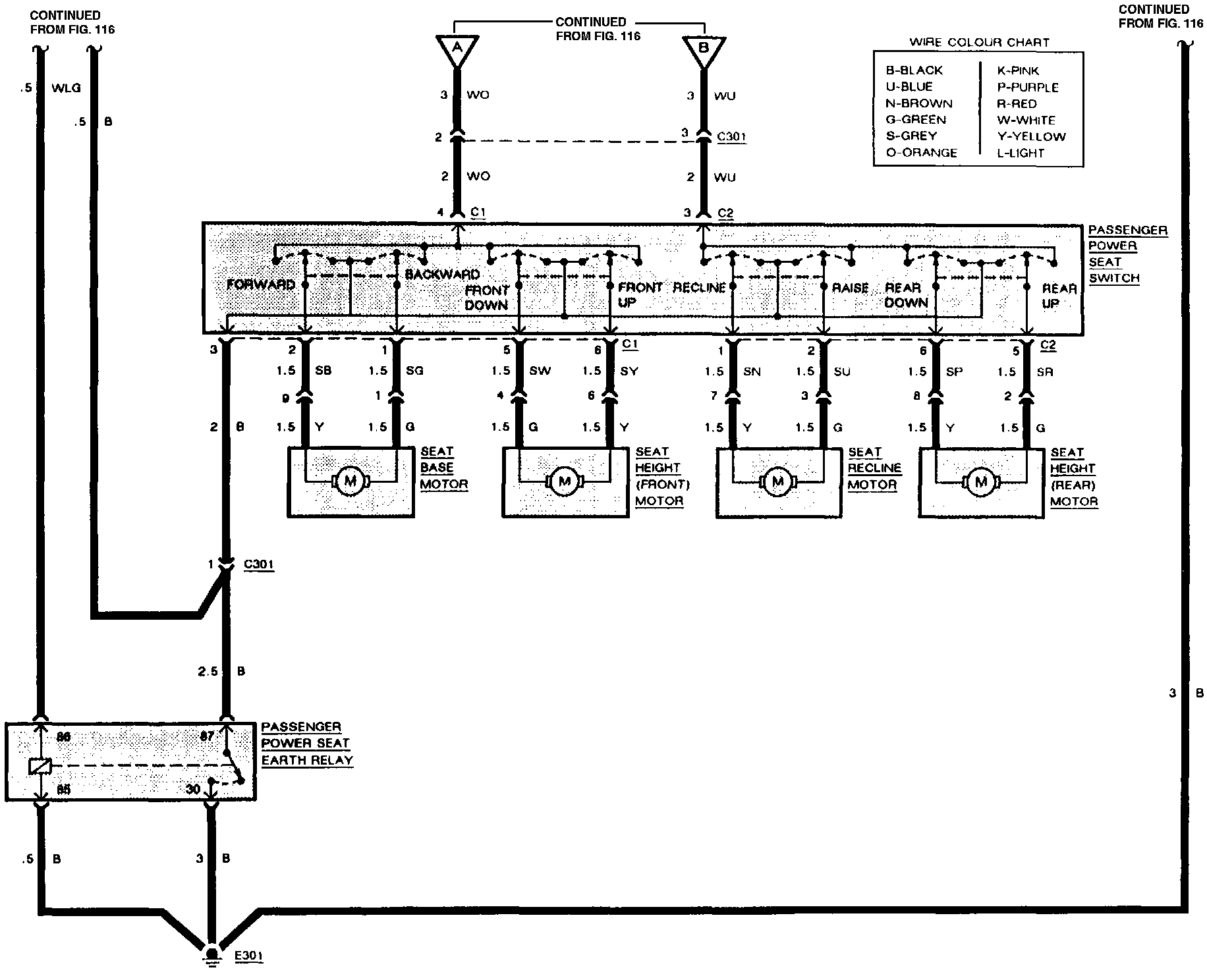

Fig. 117:

Fig. 117

The wiring diagrams relate to the seats and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
