Relays, Timers, Control Units

Incorporated in the vehicle electrical circuits are several relays, some of which are located behind the lower dash panel attached to the steering column support bracket. Relays are also located in the engine compartment attached to the closure panel, these relays are accessible having removed the black protective cover. The remaining relays are located beneath both front seats.

The relays in the following images are identified in the chart at the bottom of the page.

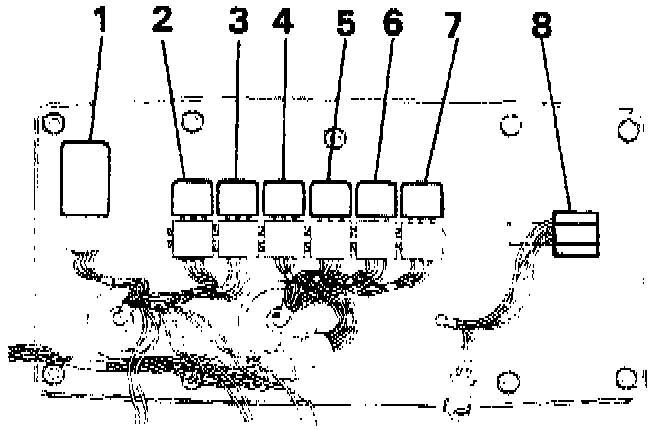

Relay Panel - Engine Compartment:

Closure panel viewed from the engine compartment, with protective cover removed.

Relays - Steering Column Mounted (Early 1989):

Steering column mounted relays (early 1989 models) viewed with the lower dash panel removed.

Relays - Steering Column Mounted (Late 1989):

Steering column mounted relays (late 1989 models) viewed with the lower dash panel removed.

Relay, Seat Adjustment:

Seat adjustment relays (load control) located beneath the left hand front seat adjacent to fuse box (B).

Relays Under Right Front Seat:

EFI (black terminal block) and fuel pump relays (blue terminal block) mounted beneath right hand front seat.
Condenser fan timer unit (24) mounted beneath right hand front seat.
Cruise control relay (23).

Relays, Window:

Front (black terminal block) and rear (blue terminal block) window relays. One touch control unit (27) is located inside the glove box, accessible by removing glove box liner.

Relay & Fuse, Sunroof:

Sunroof auxiliary relay located on side of the steering column support bracket located behind the lower dash panel. (Left hand drive shown.)

Relay - Color Item Number - Circuit Diagram

1. Headlamp wash timer unit - Black 17 - Main circuit
2. Heated rear window relay 65 - Main circuit
3. Starter solenoid relay 6 - Main circuit
4. Compressor clutch relay 11 - A/C circuit
5. Condenser fan relay 9 - A/C circuit
6. A/C - heater relay 5 - A/C circuit
7. Fresh air solenoid relay 10 - A/C circuit
8. Stowage position Not used
9. Auxiliary lamp relay 87 - Main circuit
10. Heated front screen relay - Black 3 - Heated front screen circuit
11. Ignition load relay 1 - Main circuit
12. Headlamp relay 26 - Main circuit
13. Heater - A/C relay 168 - Main circuit
14. Rear wiper delay - Blue 139 - Main circuit
15. Interior lamp delay - Red 100 - Main circuit
16. Flasher/hazard unit - Black 74 - Main circuit
17. Voltage sensitive switch - Yellow 71 - Main circuit
18. Front wiper delay - Red 14 - Main circuit
19. Heated front screen timer unit - Grey 2 - Heated front screen circuit
20. Seat adjustment relays 5,6 - Seat adjustment circuit
21. Main EFI relay - Silver 22 - EFI circuit
22. Fuel pump relay - Silver 21 - EFI circuit
23. Cruise control relay 16 - Cruise control circuit
24. Condenser fan unit - Green 23 - A/C circuit
25. Rear window lift relay 13 - Window lift circuit
26. Front window lift relay 14 - Window lift circuit
27. Window lift one touch unit - Black 1 - Window lift circuit
28. Sunroof auxiliary relay 3 - Sunroof circuit
