Cruise Control

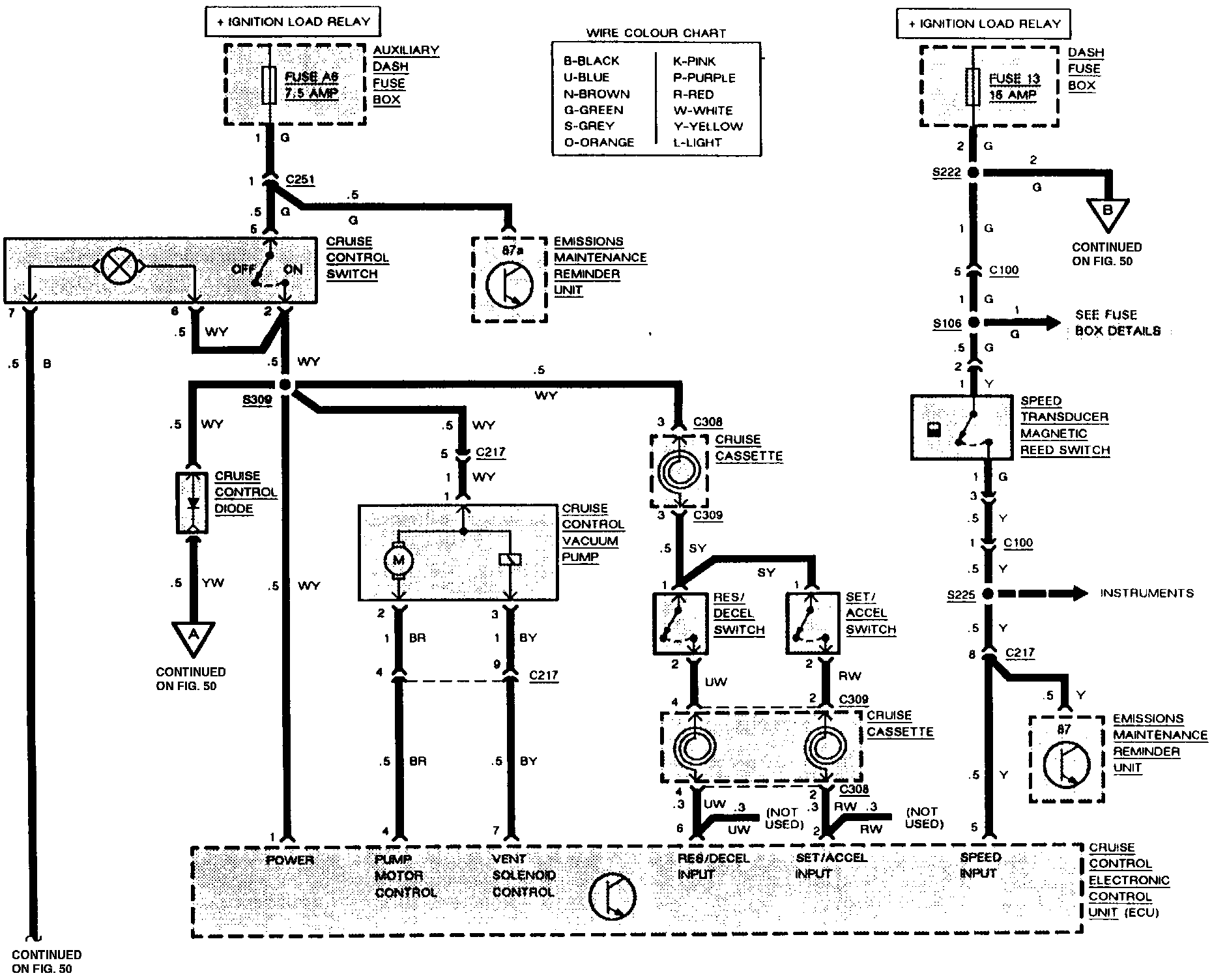

Fig. 49:

Fig. 49

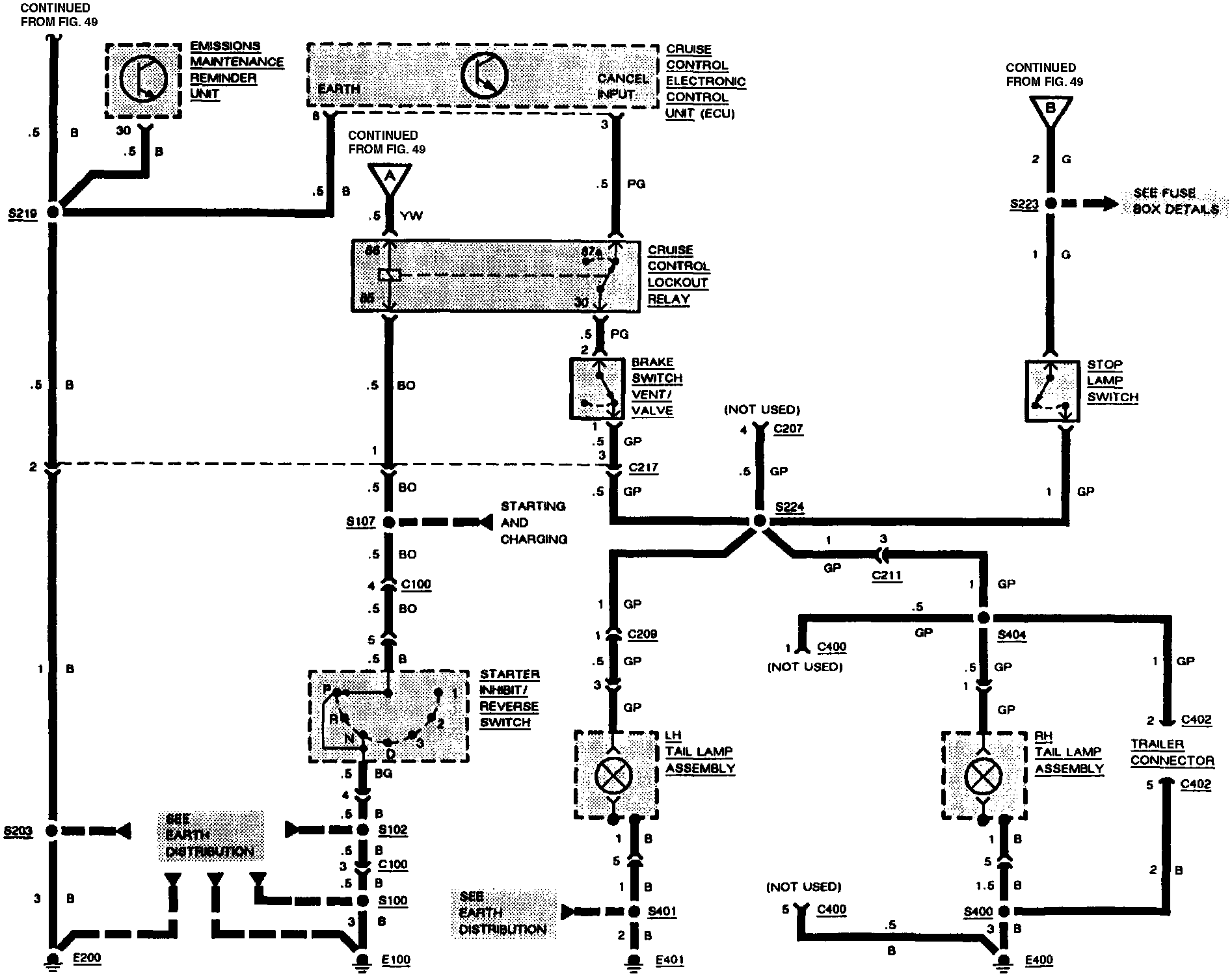

Fig. 50:

Fig. 50

The wiring diagrams relate to the cruise control system and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
