Home >> Land Rover >> 1989 >> Range Rover (LH) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig. 111

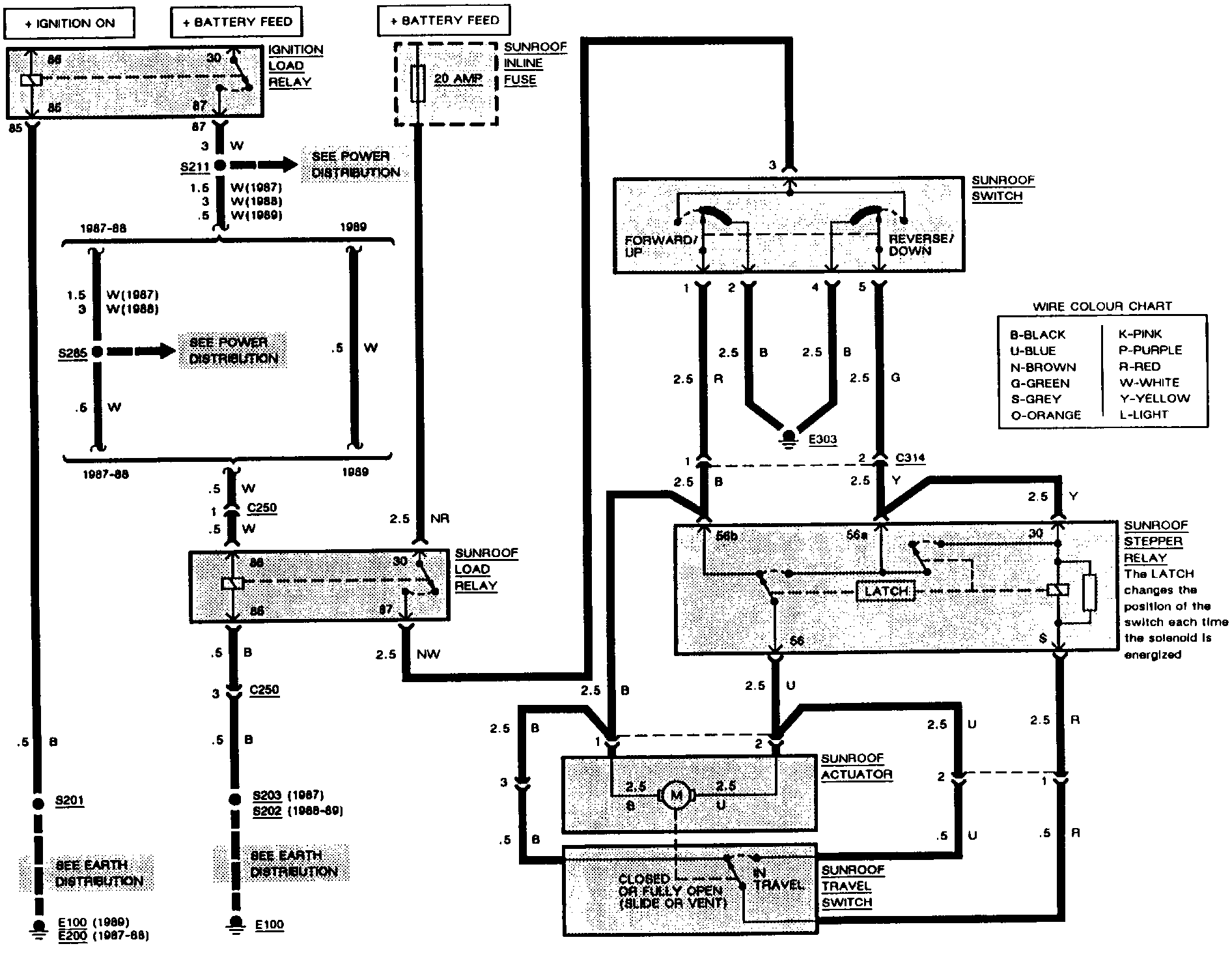

Fig. 111

Fig. 111:
