Compressor HVAC

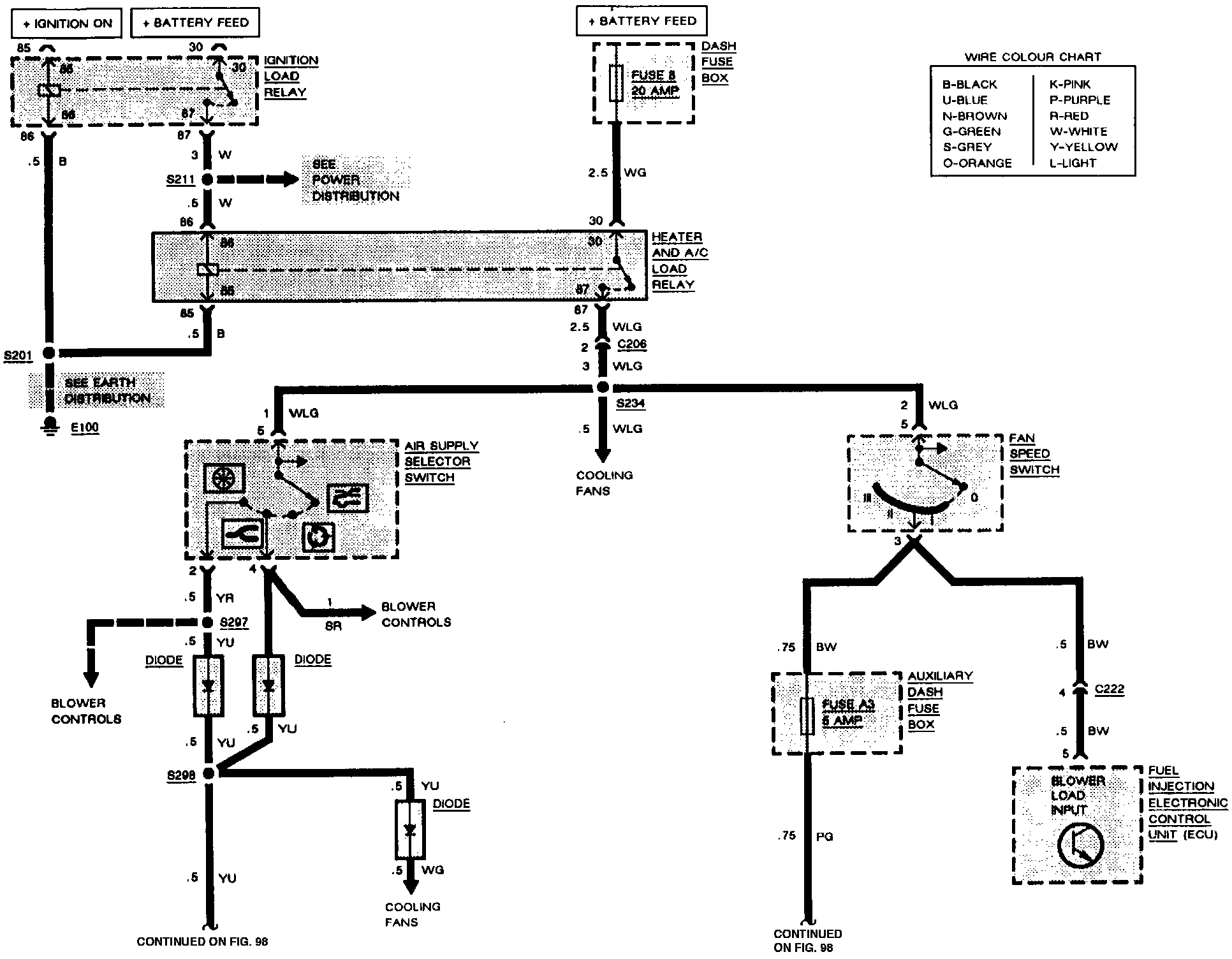

Fig. 97:

Fig. 97

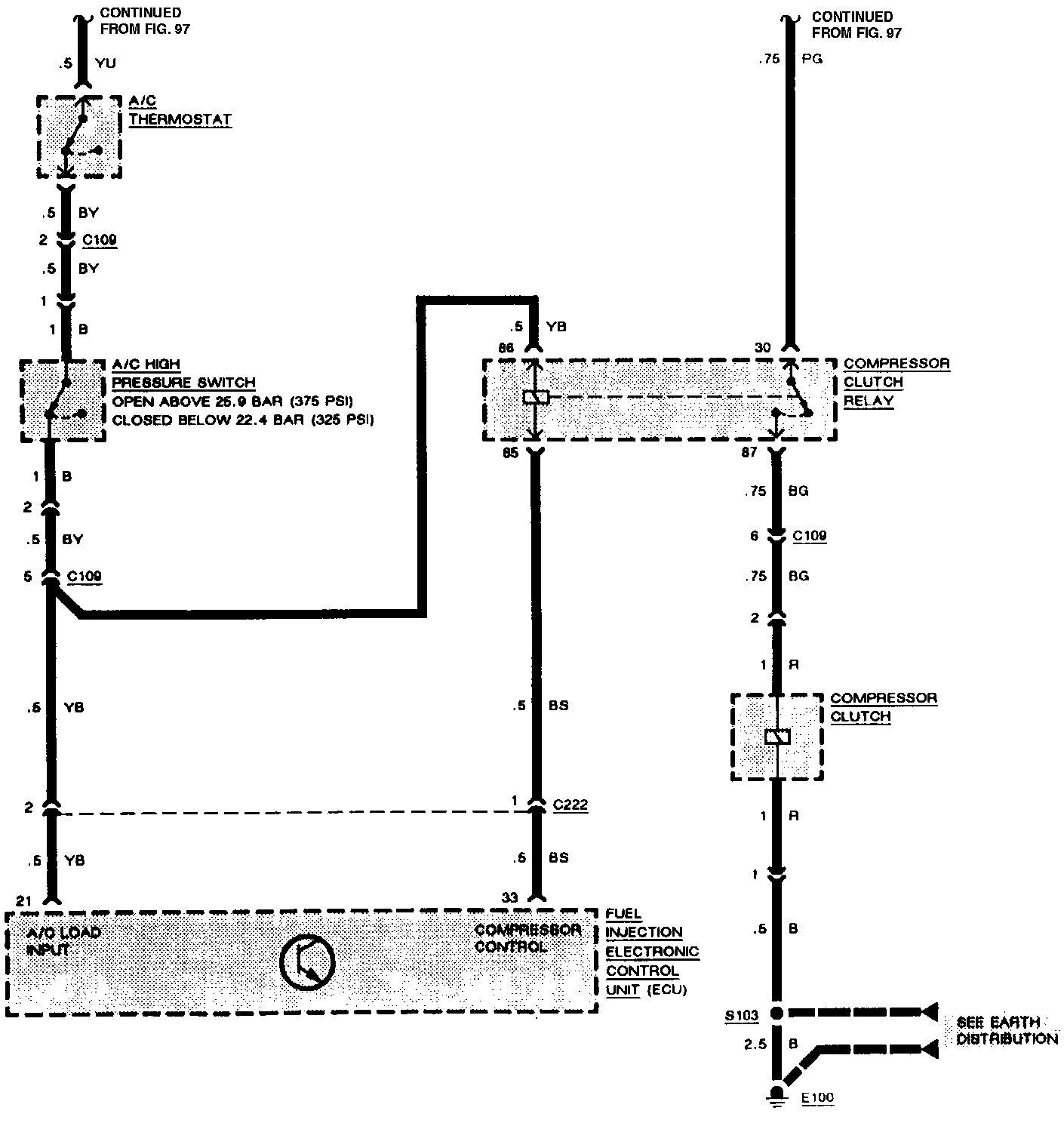

Fig. 98:

Fig. 98

The wiring diagrams relate to the air conditioning compressor and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
