Blower Controls

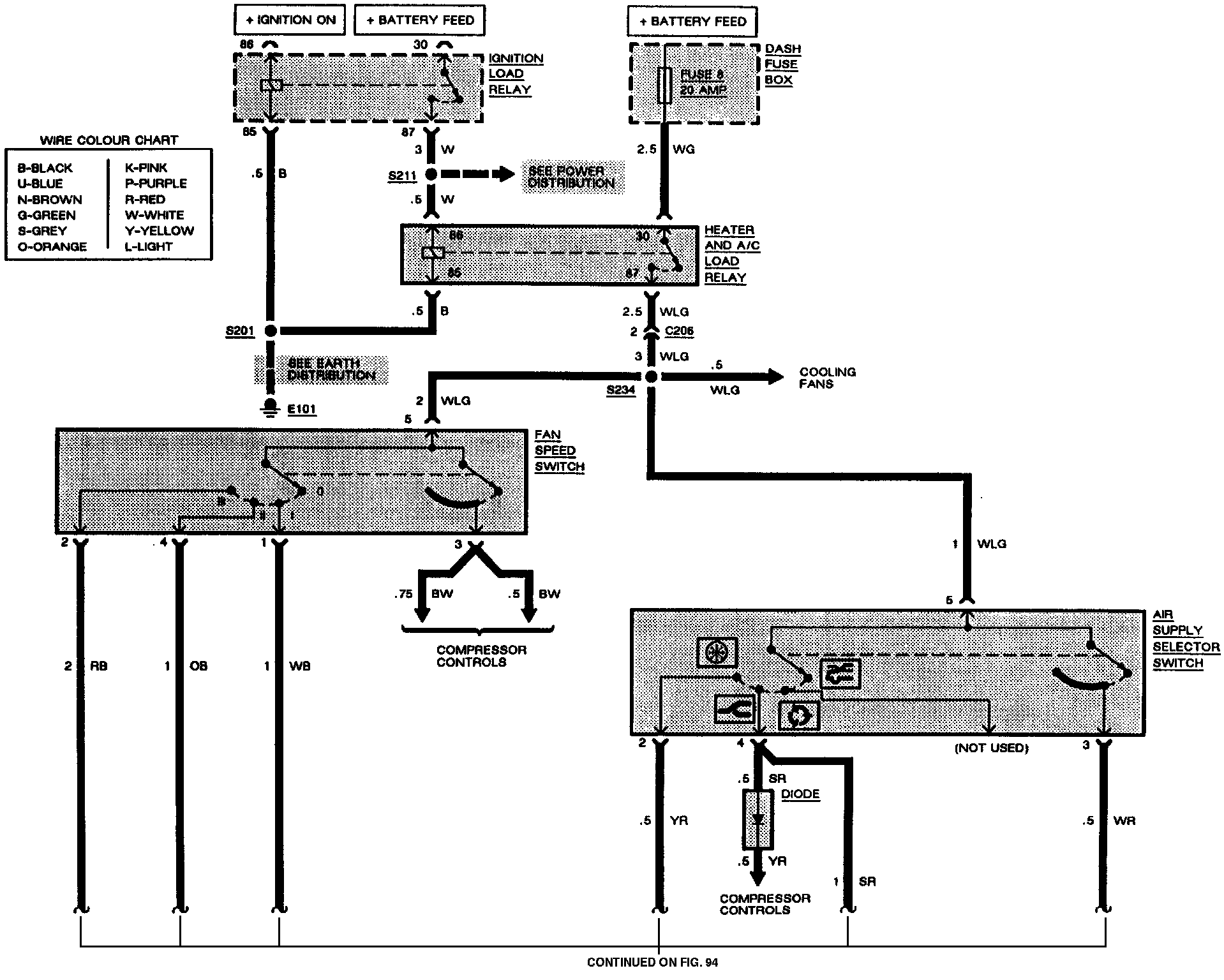

Fig. 93:





Fig. 93

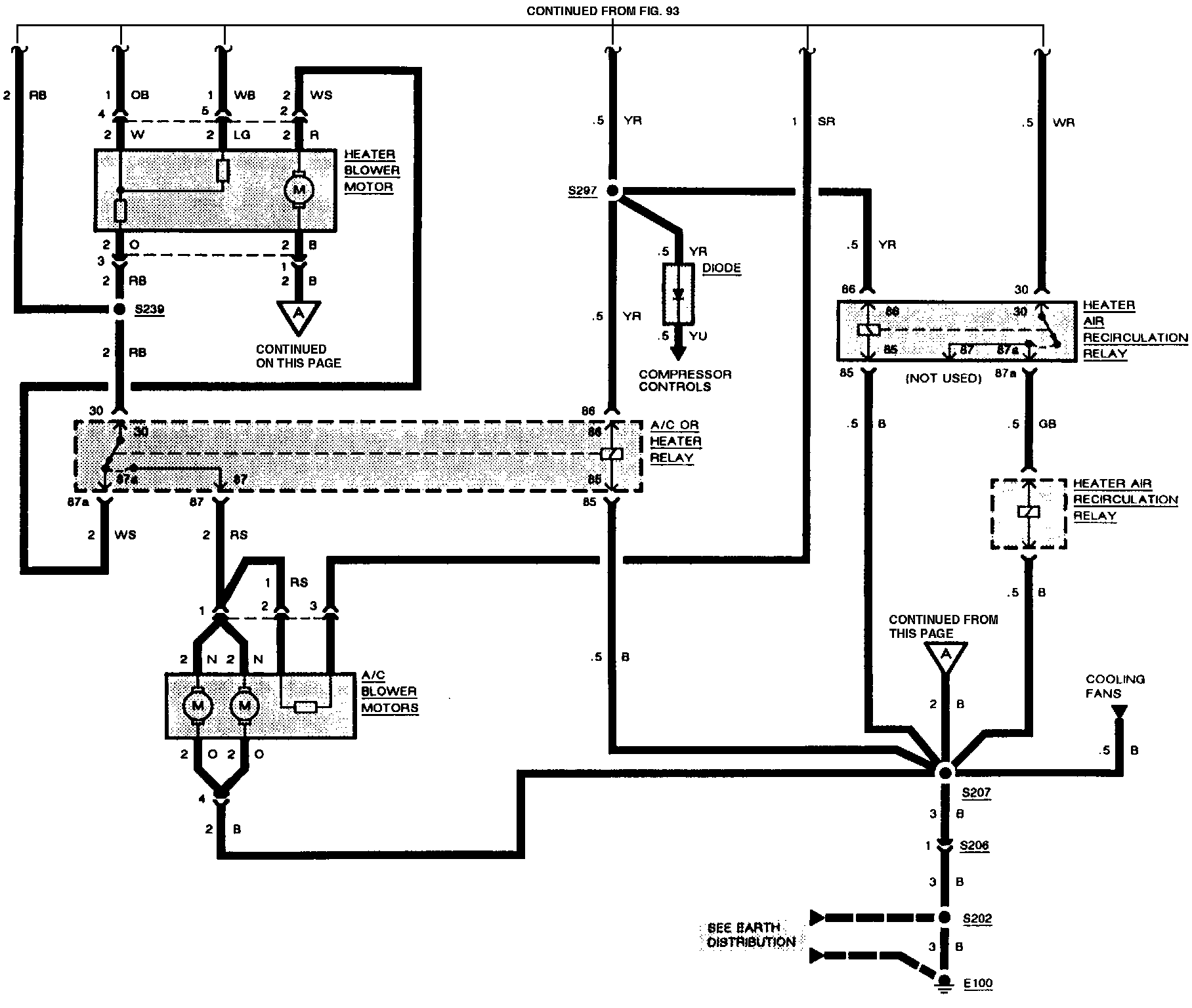

Fig. 94:





Fig. 94

The wiring diagrams relate to the heating and air conditioning system and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle/Diagrams. Diagrams By Figure Number
