Warnings and Indicators

Fig. 59:

Fig. 59

Fig. 60:

Fig. 60

Fig. 61:

Fig. 61

Fig. 62:

Fig. 62

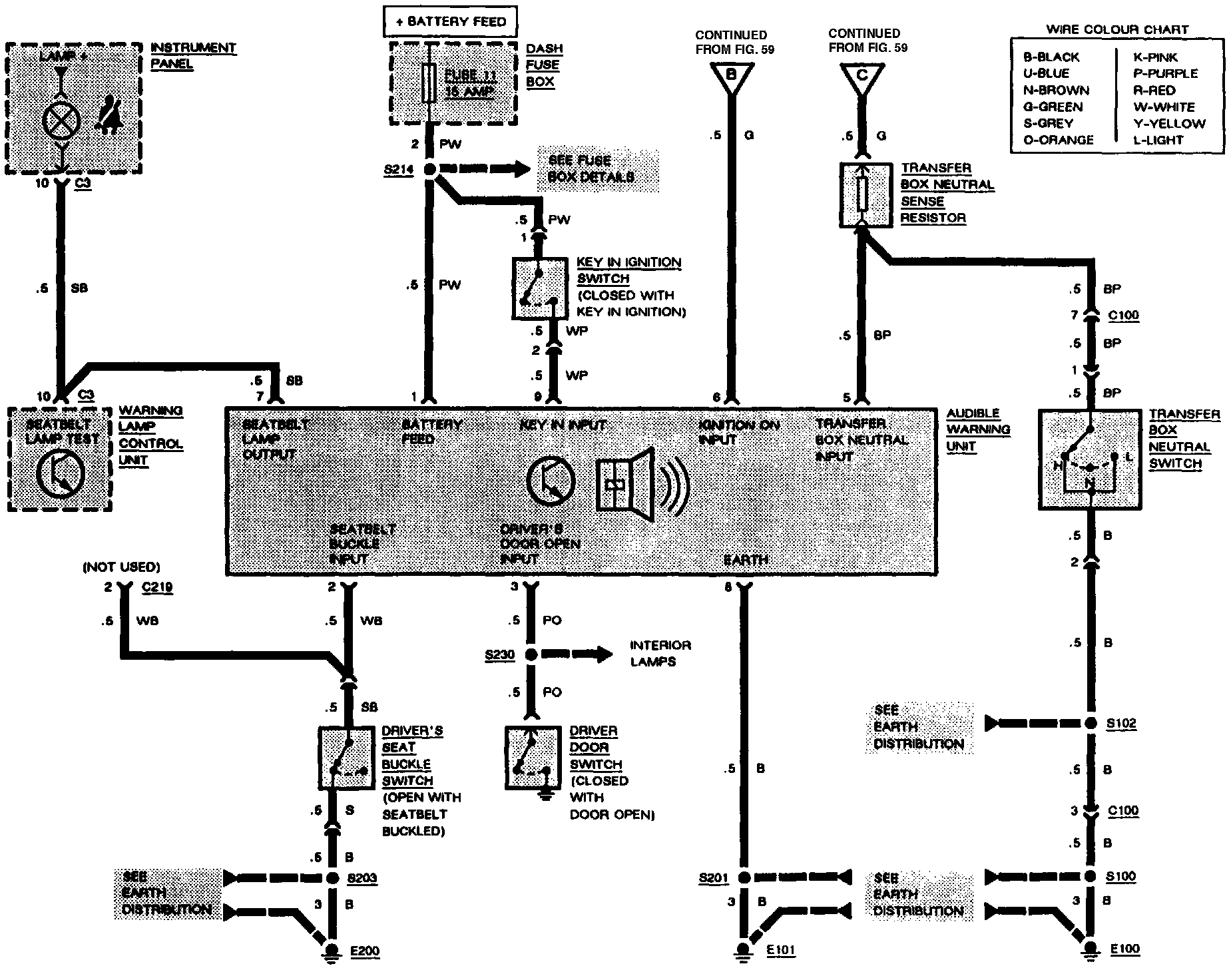

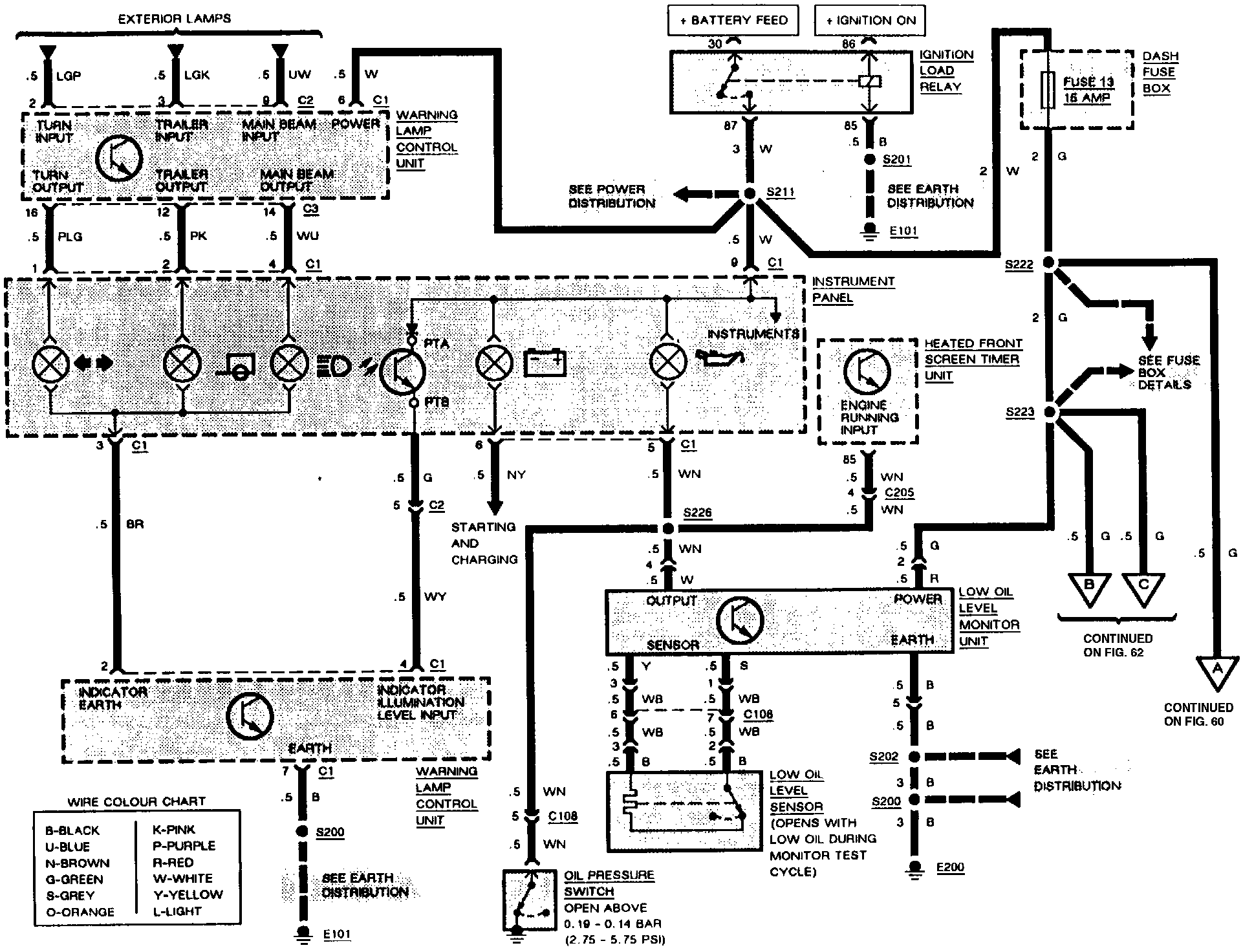

The wiring diagrams relate to the warnings and indicators and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
