Ground

Fig. 27:

Fig. 27

Fig. 28:

Fig. 28

Fig. 29:

Fig. 29

Fig. 30:

Fig. 30

Fig. 31:

Fig. 31

Fig. 32:

Fig. 32

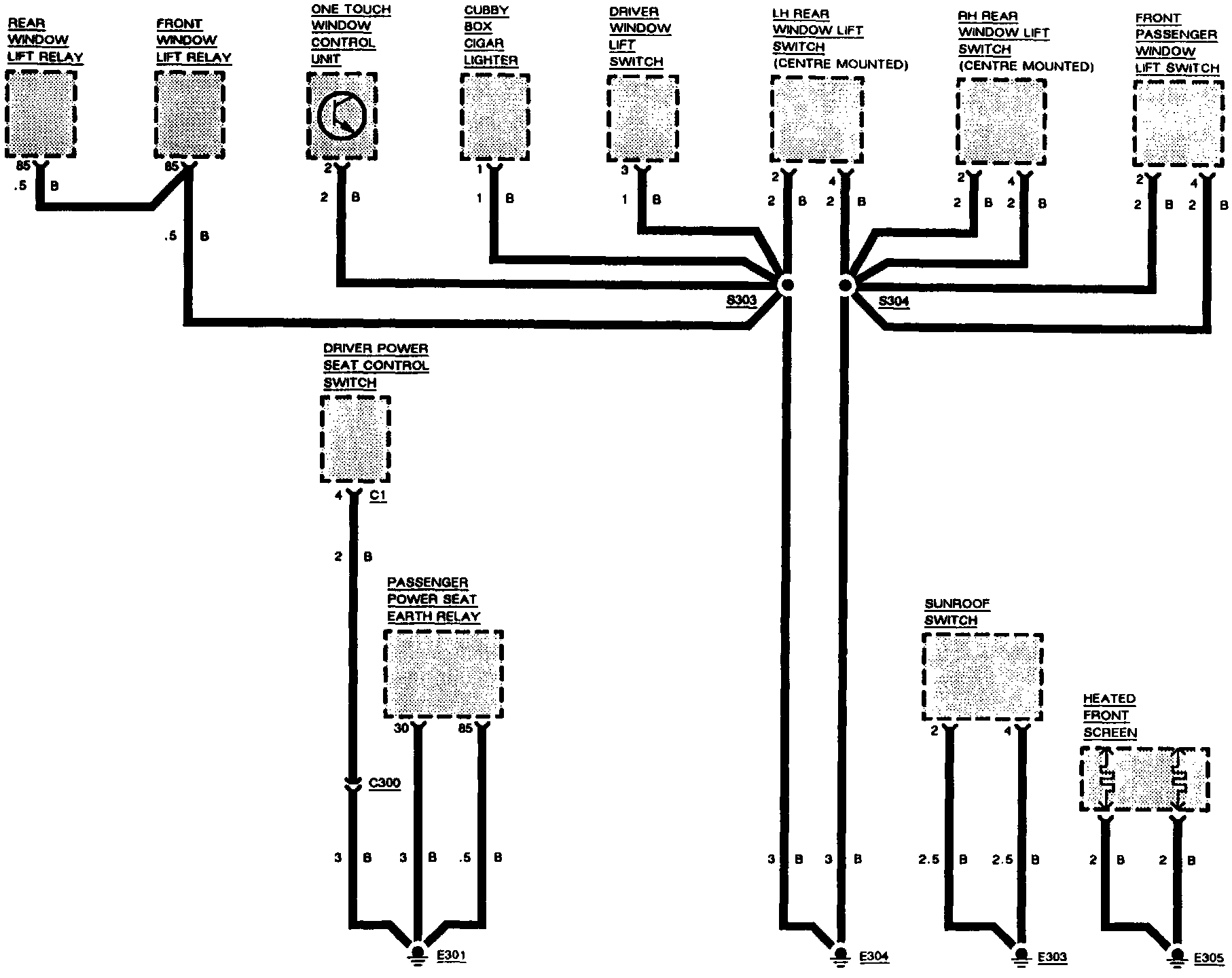

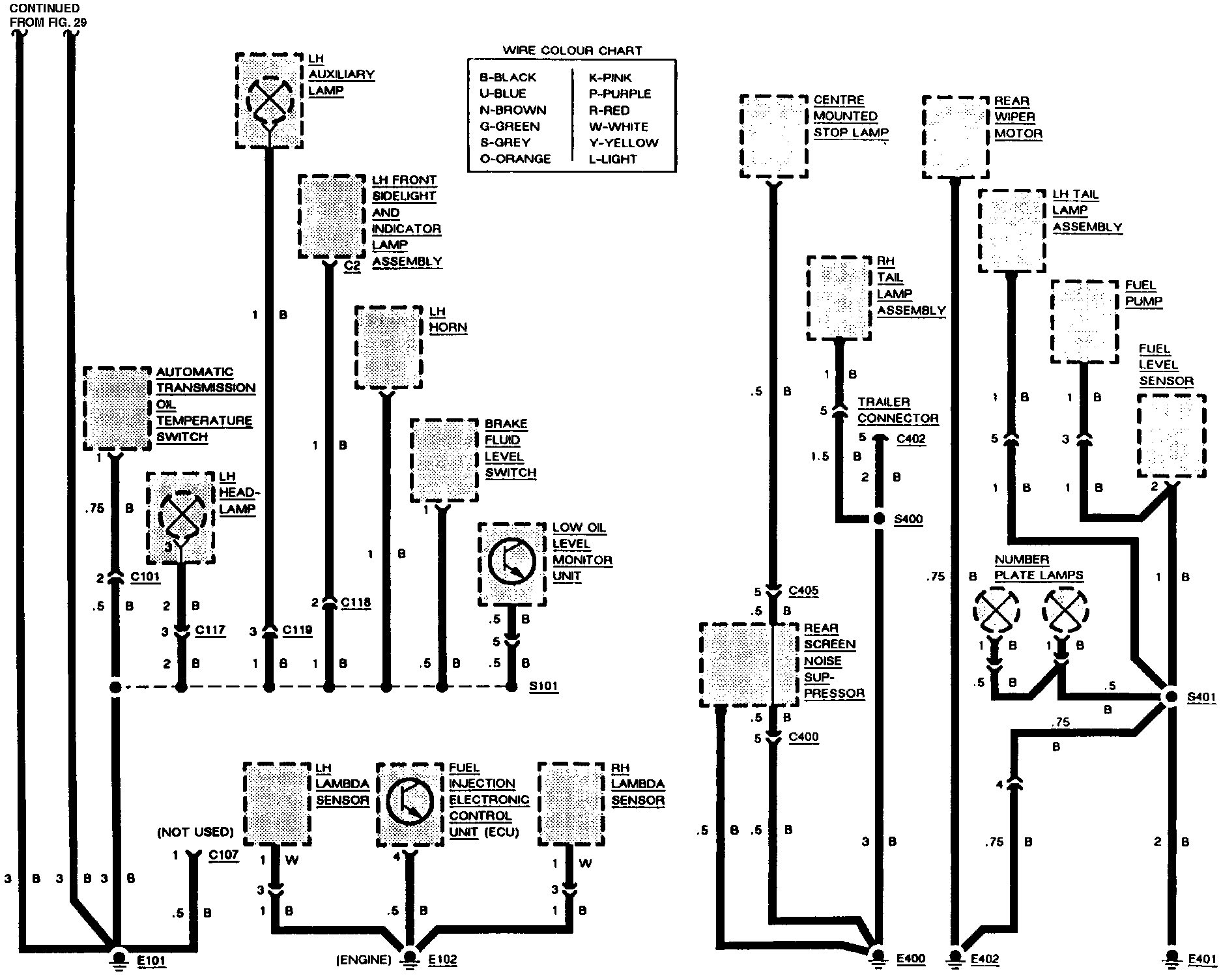

The wiring diagrams relate to ground distribution and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
