Power

Fig. 7:

Fig. 7

Fig. 8:

Fig. 8

Fig. 9:

Fig. 9

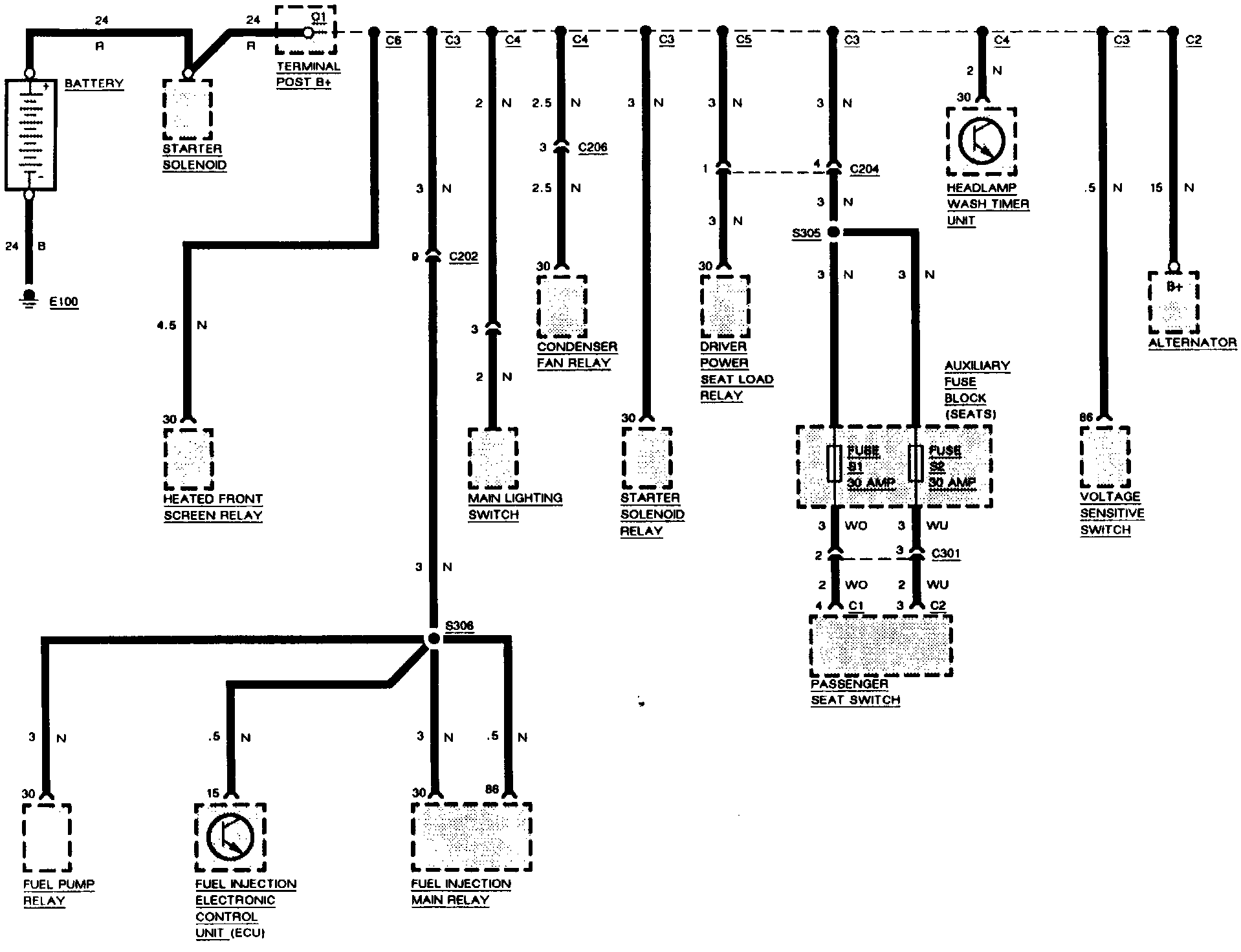

The wiring diagrams relate to power distribution and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
