Electrical Diagrams

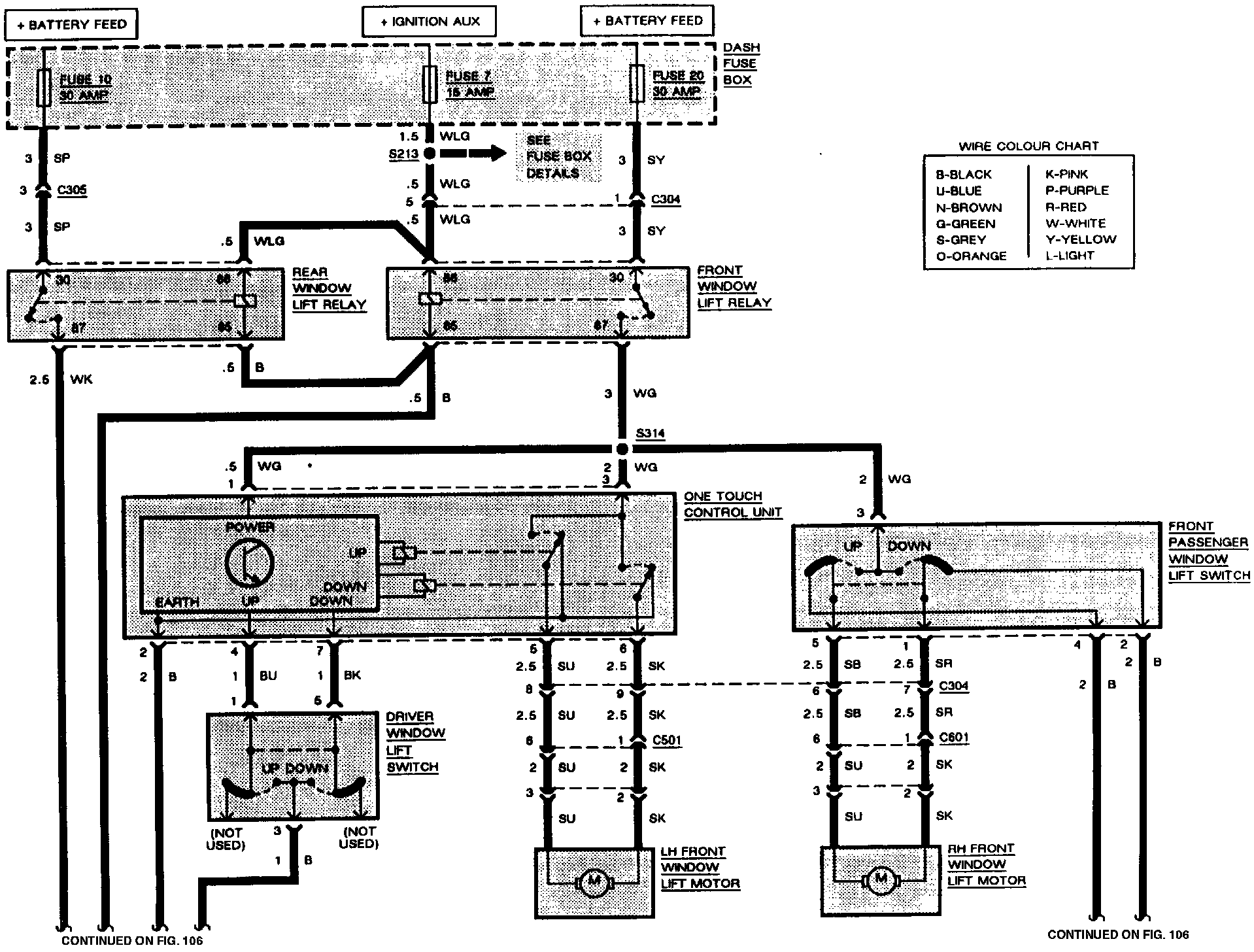

Fig. 105:





Fig. 105

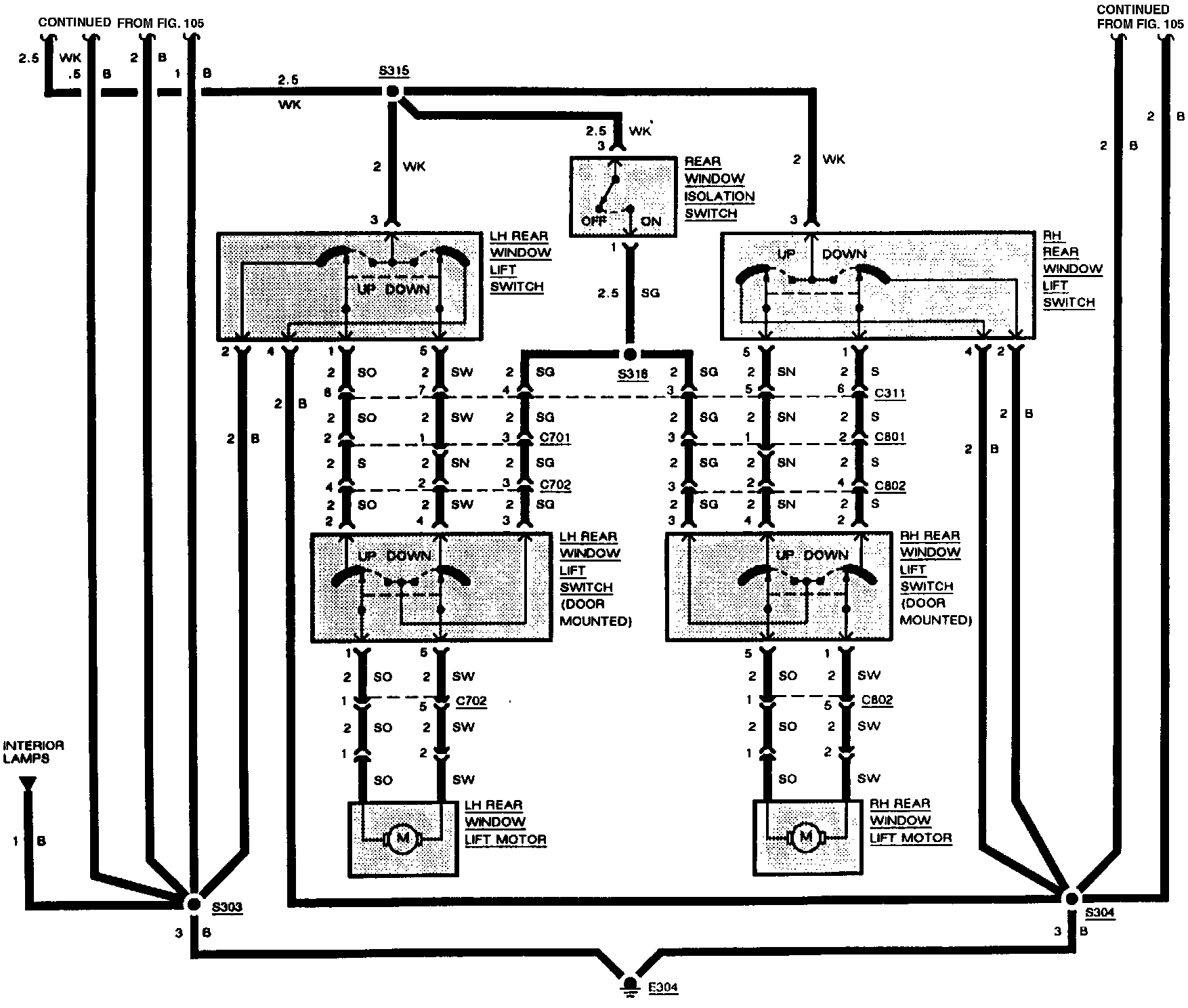

Fig. 106:





Fig. 106

The wiring diagrams relate to the power windows and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
