Fuel Door: Service and Repair

REMOVE

NOTE: The fuel filler flap is locked when the vehicle central locking system has been activated, ensure the system has been de-activated before attempting to open the flap.

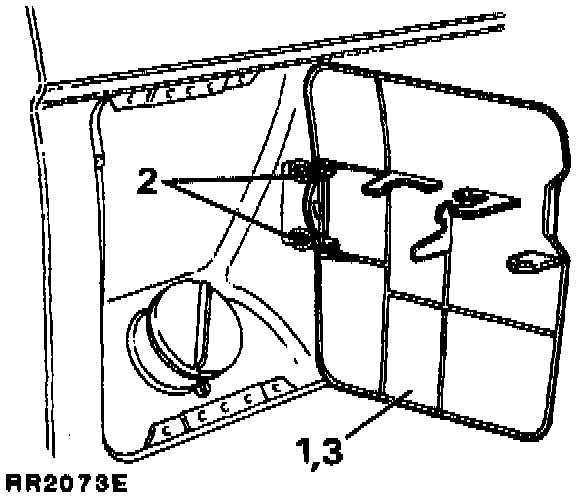

Fuel Filler Flap:

1. Open the fuel filler flap.
2. Release the two screws (with plain washers).
3. Withdraw the flap.

REFIT
1. Fit the flap, but do not fully tighten the screws at this stage.
2. Close the flap and check that the outer profile of the flap aligns with the rear fender, adjust by easing the flap in or out of the opening.
3. Open the flap and securely tighten the screws.
