Mirrors: Service and Repair

REMOVE
1. Disconnect the battery negative lead.

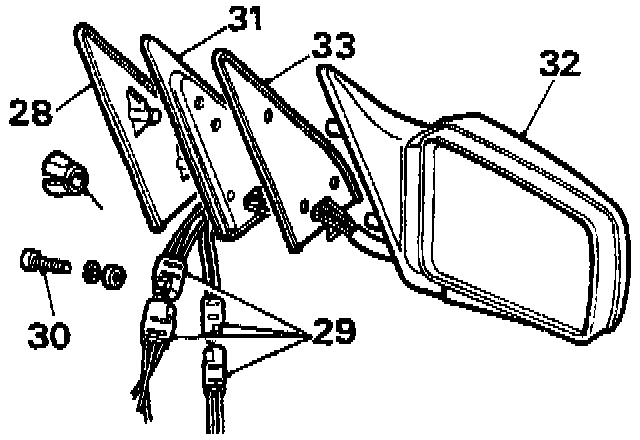

Mirror Components:

2. Carefully pry off the interior finisher plate to reveal the three securing screws and electric wiring.
3. Disconnect the two electrical plugs (one two-pin, one three-pin).
4. Supporting the exterior mirror assembly remove the three securing screws (with plain and spring washer).
5. Pull the inner mounting plate away from the inner door frame complete with the two retaining clips.
6. Detach the mirror assembly from the outer door frame.
7. Remove the sealing rubber.

REFIT
1. Reverse the operations.

NOTE: To prevent damage to the electrical wiring do not push the leads down inside the door casing.
