Front

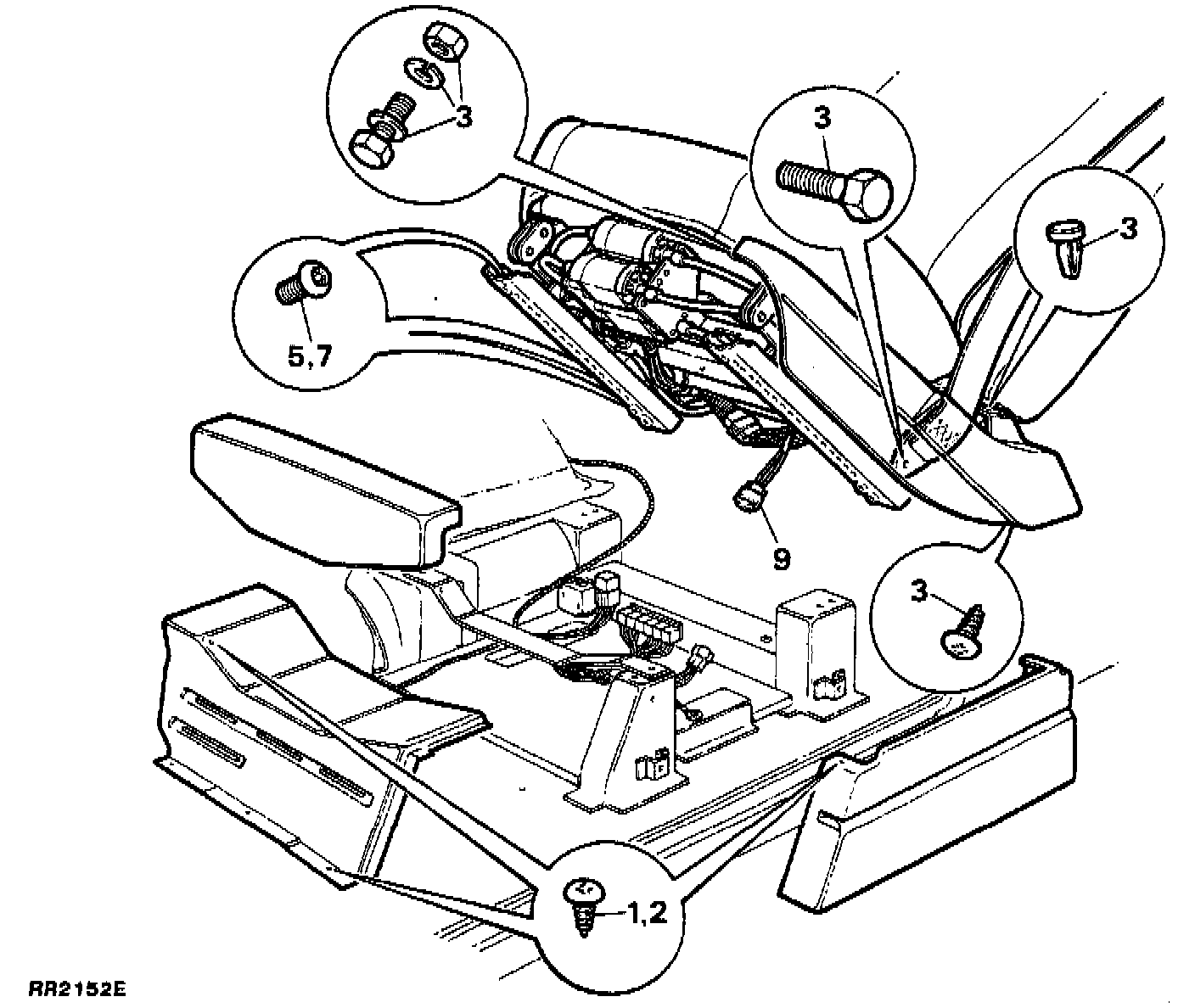

REMOVESeat Fasteners:
1. Remove the single screw securing the seat base side trim panel and withdraw the panel.
2. Remove the three screws securing the seat base front trim panel to the front footwell, remove the single screw securing the top of the front trim panel to the seat base located under the seat base cushion, and withdraw the panel.
3. Remove the three fasteners securing the seat cushion side trim panel and withdraw the panel. Remove the bolt securing the seat belt to the side of the seat.
4. Move the seat until it is in its most rearward position.
5. Remove the two fasteners securing the front of the seat located in each seat slide channel.
6. Move the seat until it is in its most forward position
7. Remove the four fasteners securing the rear of the seat located inside each seat slide channel.
8. Disconnect the battery negative terminal.
9. Disconnect the electrical multi-plugs to the seat motors and seat control switch.
10. Withdraw the seat from the vehicle.
11. If necessary, the seat motors and operating switch can be removed.
REFIT
1. Reverse the removal instructions.
2. Arrange the electrical leads beneath the seat to ensure that they do not become trapped by the seat slide mechanism.
