Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1990
>>
Range Rover (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
Components
A/C Blower Motors - Condenser Fan Timer Unit:

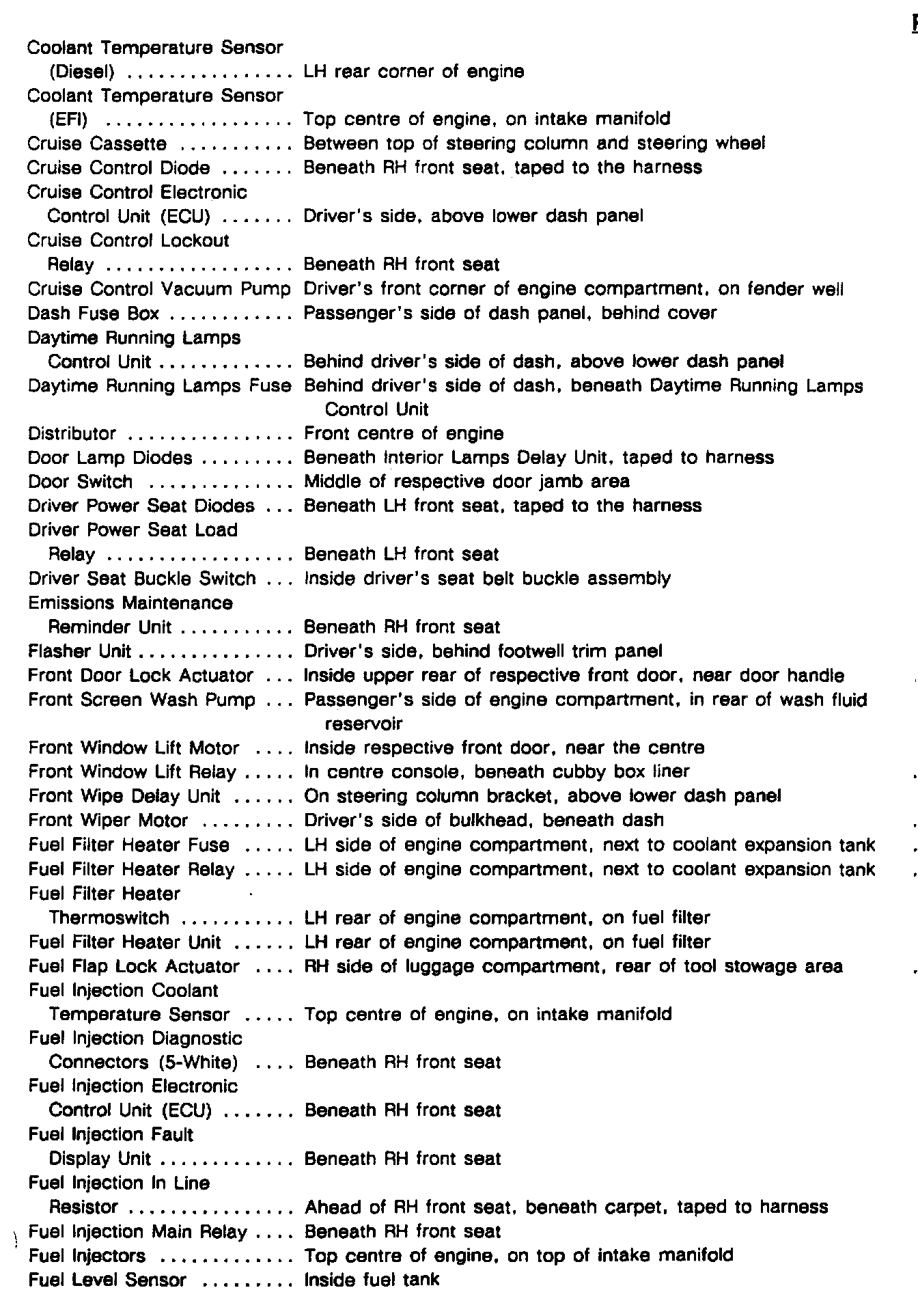

Coolant Temperature Sensor - Fuel Level Sensor:

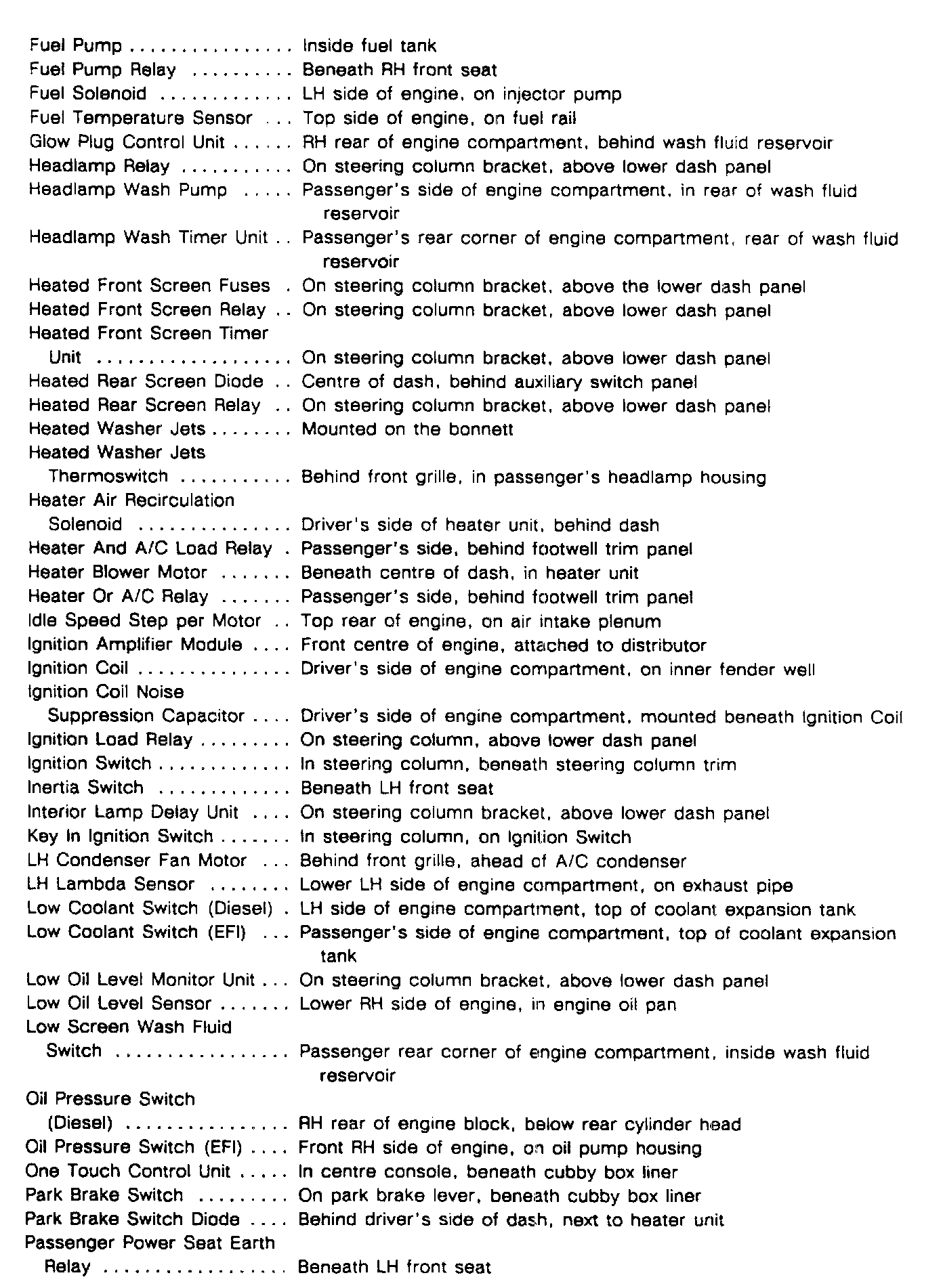

Fuel Pump - Passenger Power Seat Ground Relay:

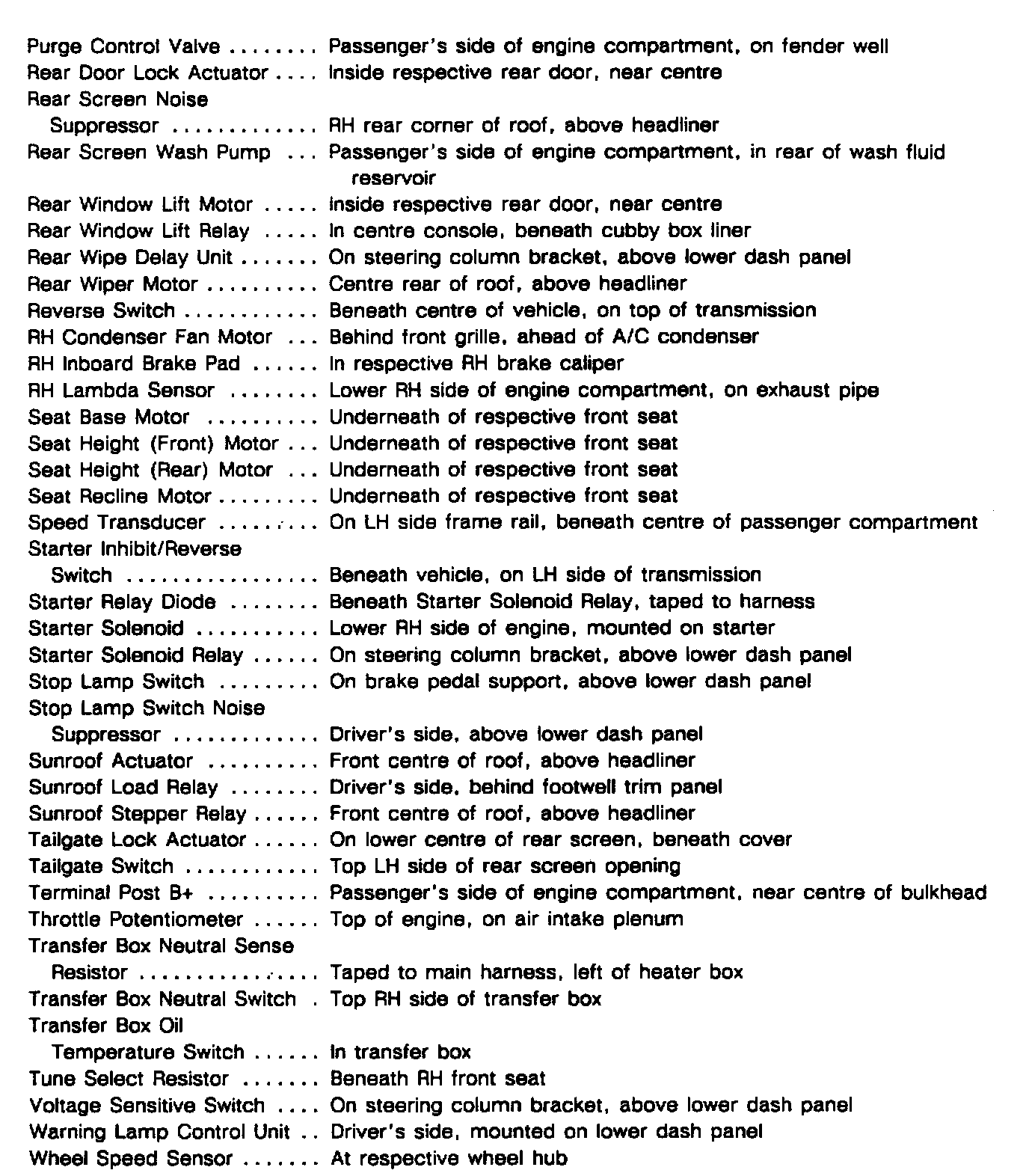

Purge Control Valve - Wheel Speed Sensor:
