Hydraulic Brake Booster

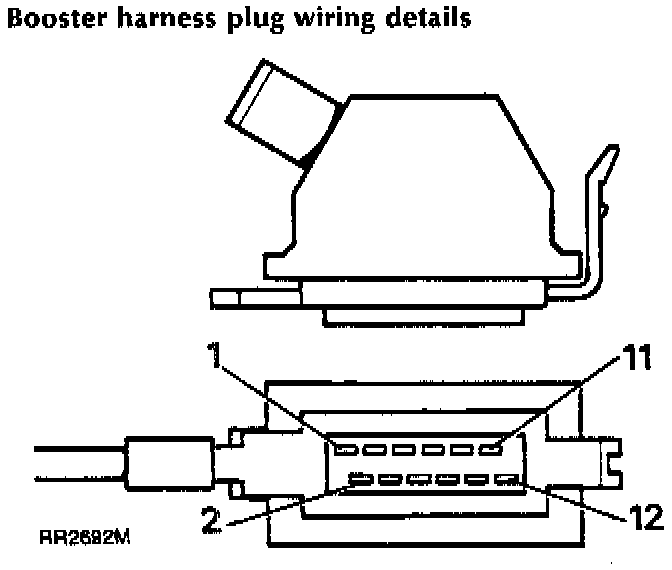

Booster Connector Pin ID:

1. Slate/yellow.
2. Not used.
3. Slate/white.
4. Slate/green.
5. Slate/black.
6. Slate/purple.
7. Slate/orange.
8. Slate/brown.
9. Slate/blue.
10. Slate/pink.
11. Slate/red.
12. Not used.
