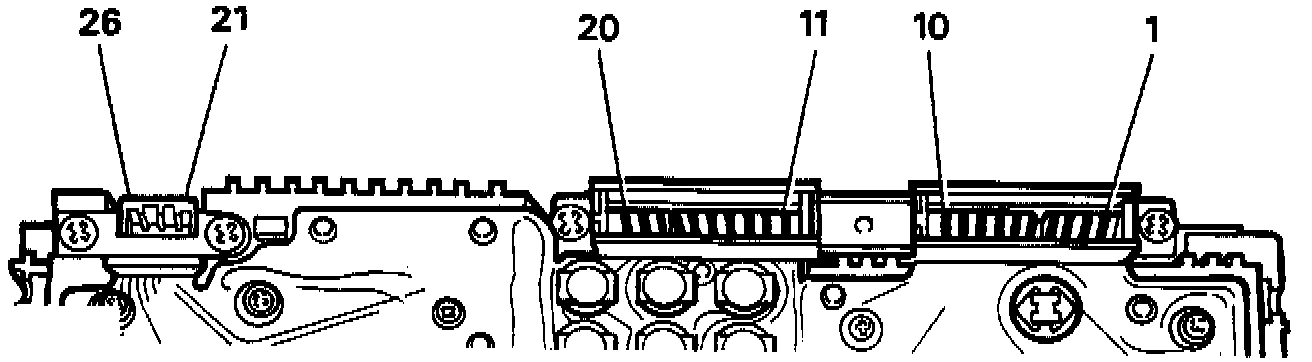

Instrument Panel Circuit Board

Connectors:

Circuits Served

NOTE: Numbers refer to pin numbers on instrument pack circuit diaTach
Coolant temperature 1
Low coolant input 2
Ignition switch 12V+ 3
Ignition warning light 4
Oil pressure warning light 5
Fuel tank unit 6
Transmission oil temperature 7
Cold start warning (diesel) 8
12V+ ignition 9
Tachometer signal 10
Brake fail/handbrake warning light 11
Brake pad wear warning light 12
Low wash fluid 13
Direction indicator - left 14
Zero volts from dimmer 15
Main beam warning light 16
Trailer warning light 17
Direction indicator - right 18
EFI warning light 19
ABS warning light 20
Seat belt warning light 21
Low coolant check 22
Speed signal 23
Photo transistor 24
Panel illumination bulbs (4) 25
Earth -ve 26
