Connectors Locations
Connectors Locations

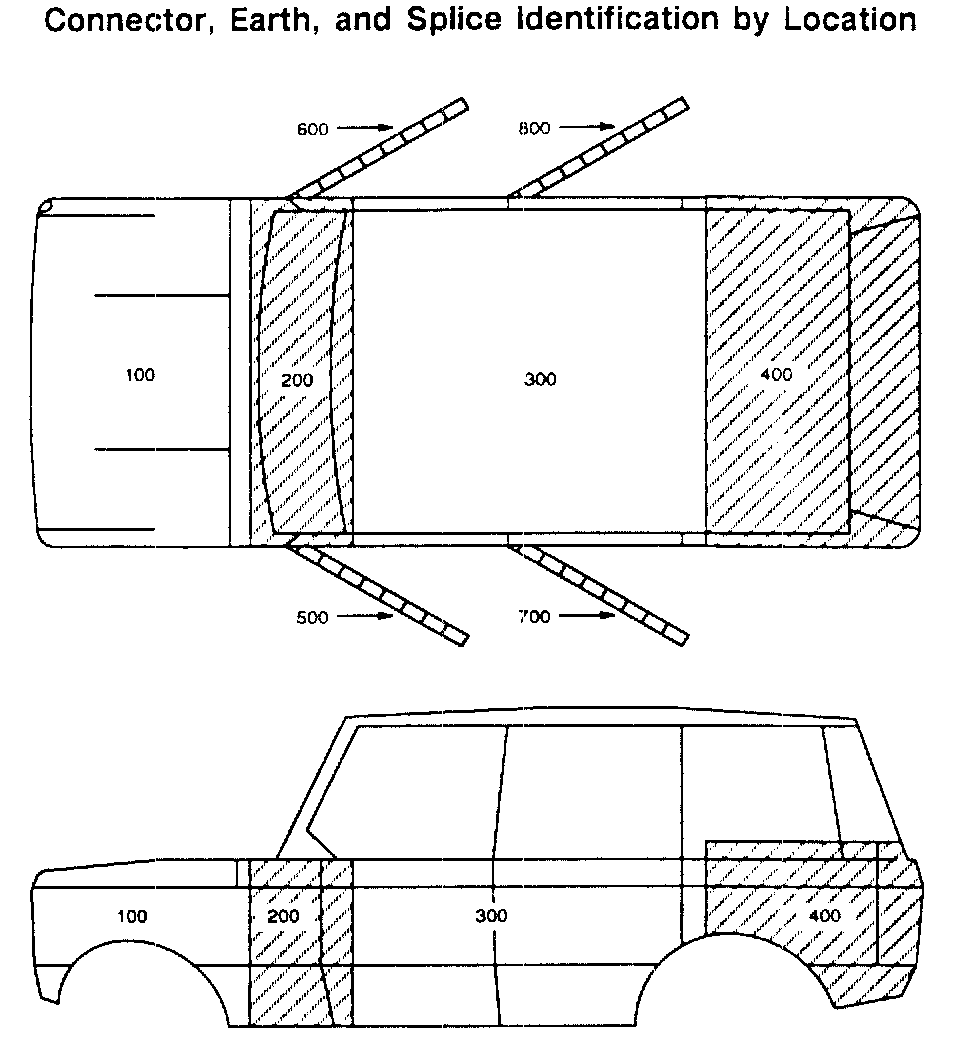

Connector, Ground, And Splice Locations On Vehicle:

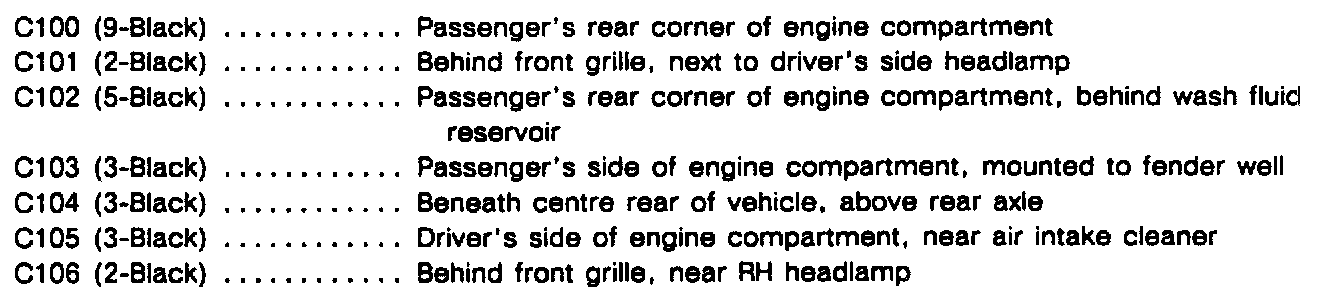

C100 - C106:

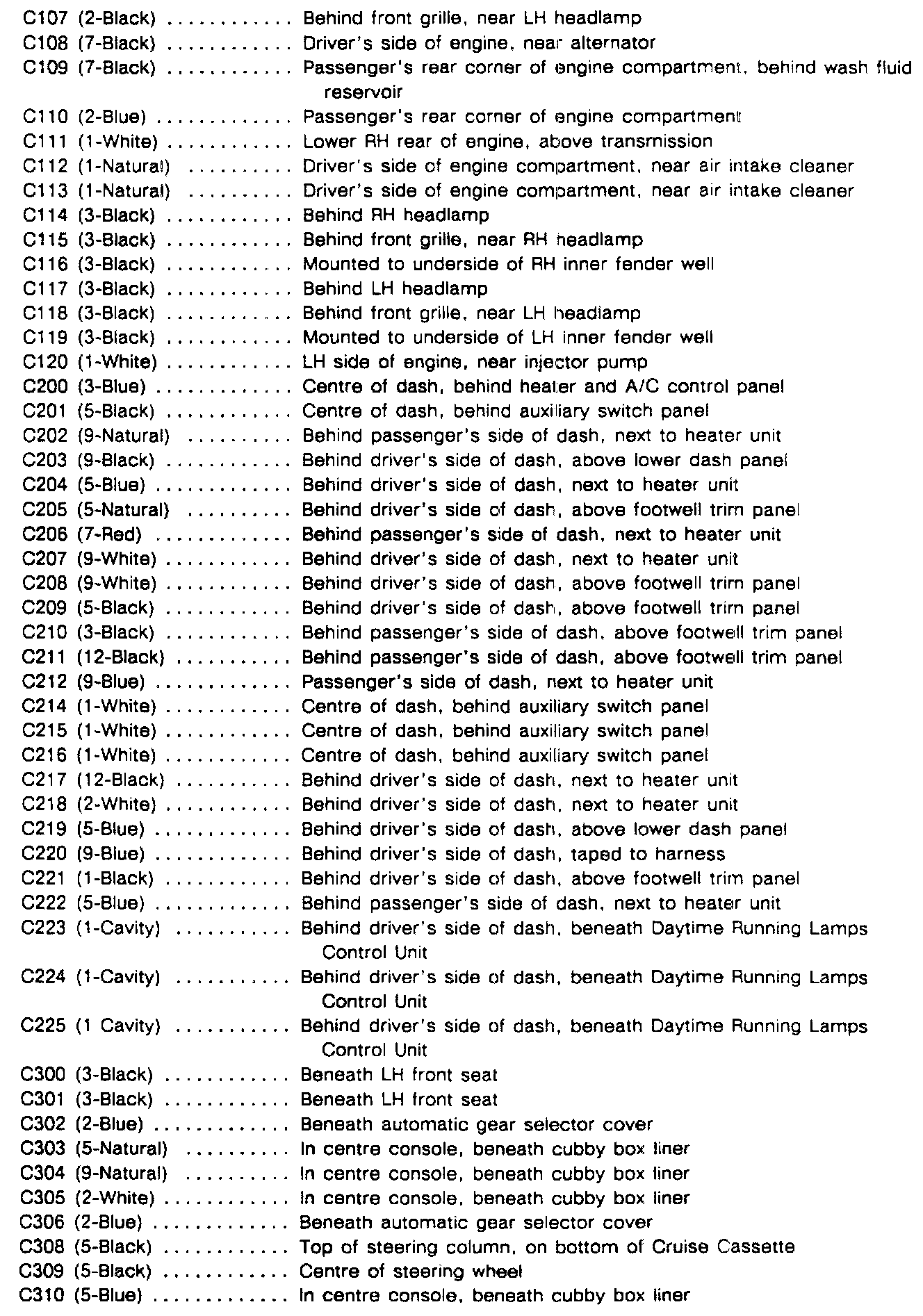

C107 - C310:

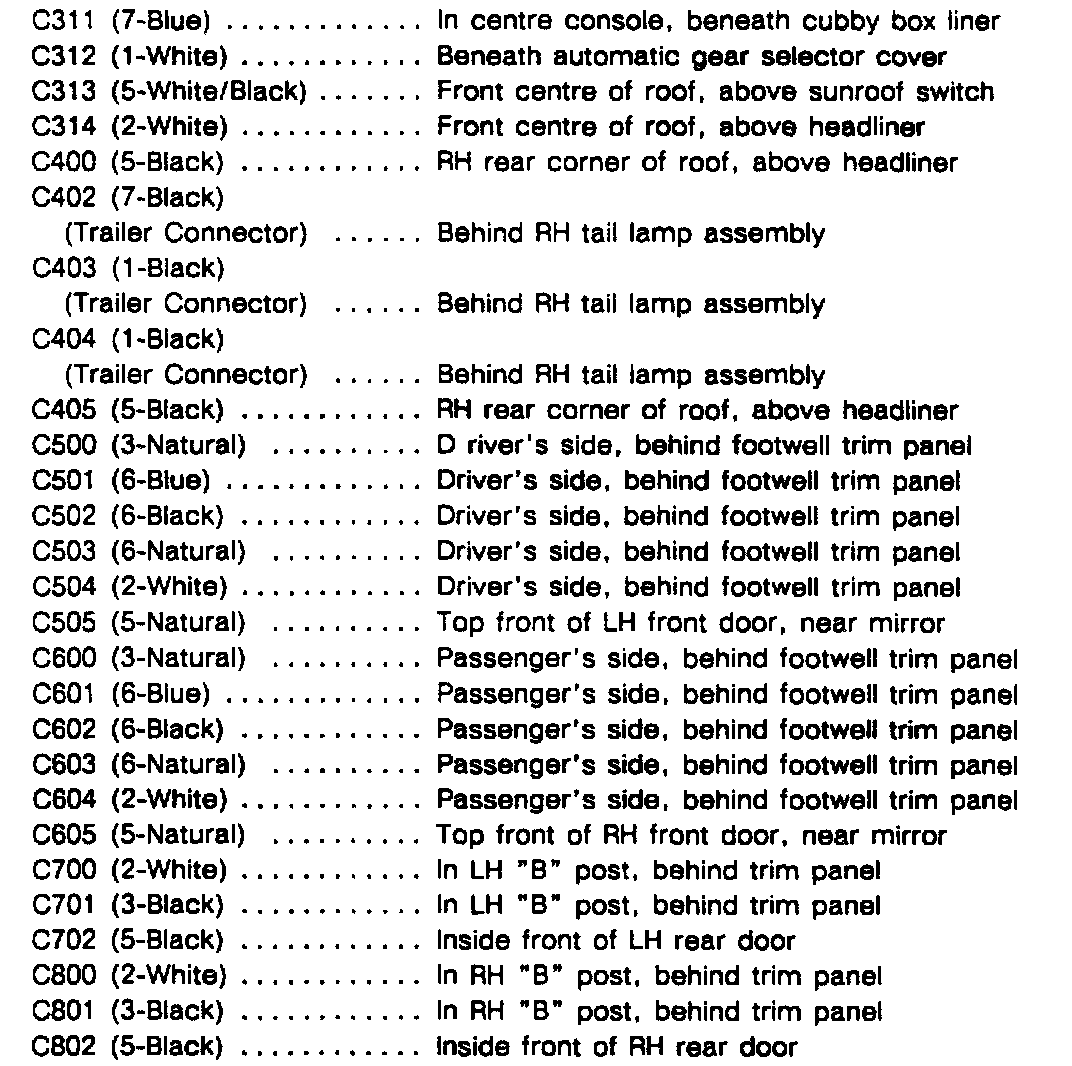

C311 - C802:
