Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1990
>>
Range Rover (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System

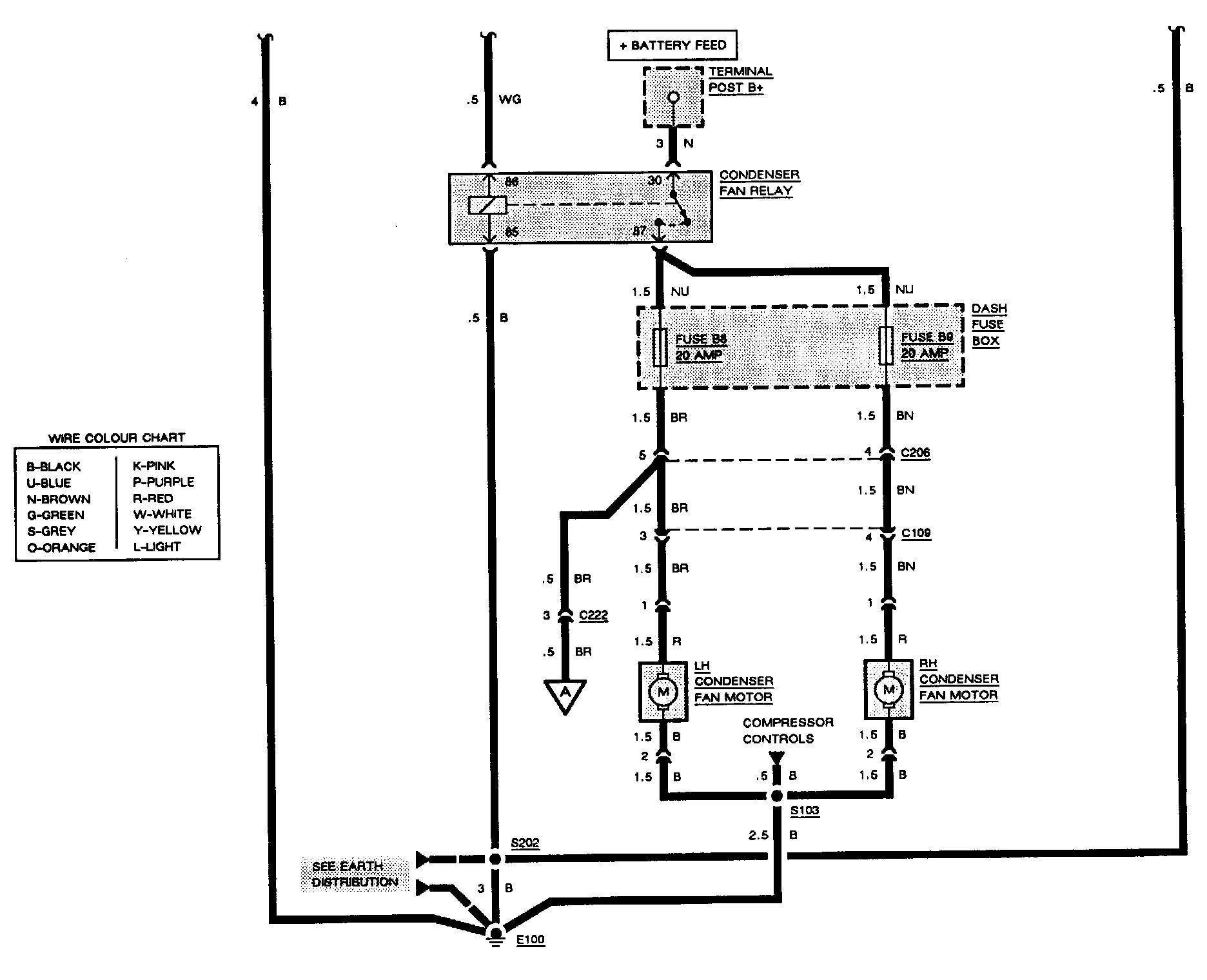

Cooling Fans:
Cooling Fans:
