System Diagram

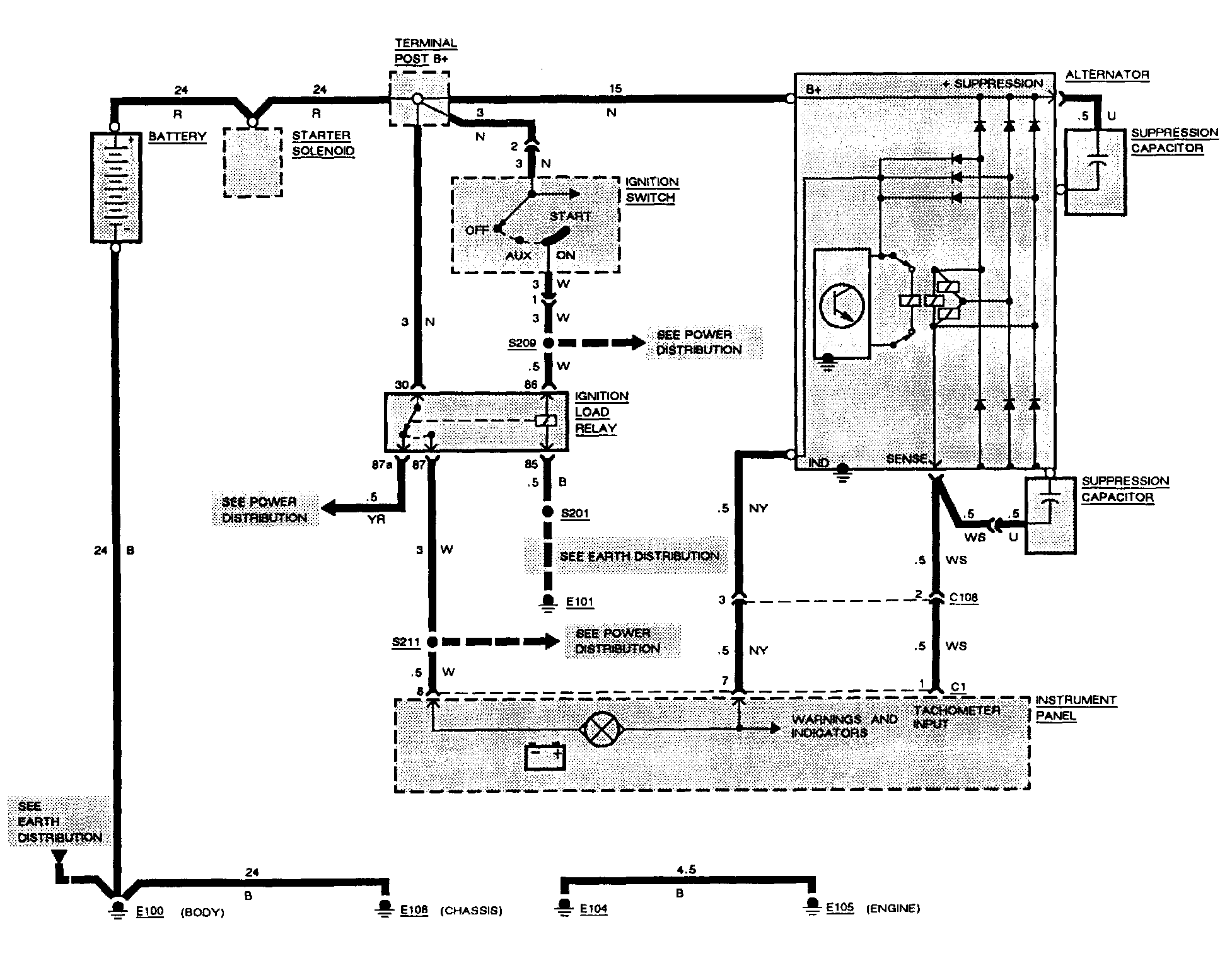

Starting And Charging:




Starting And Charging:

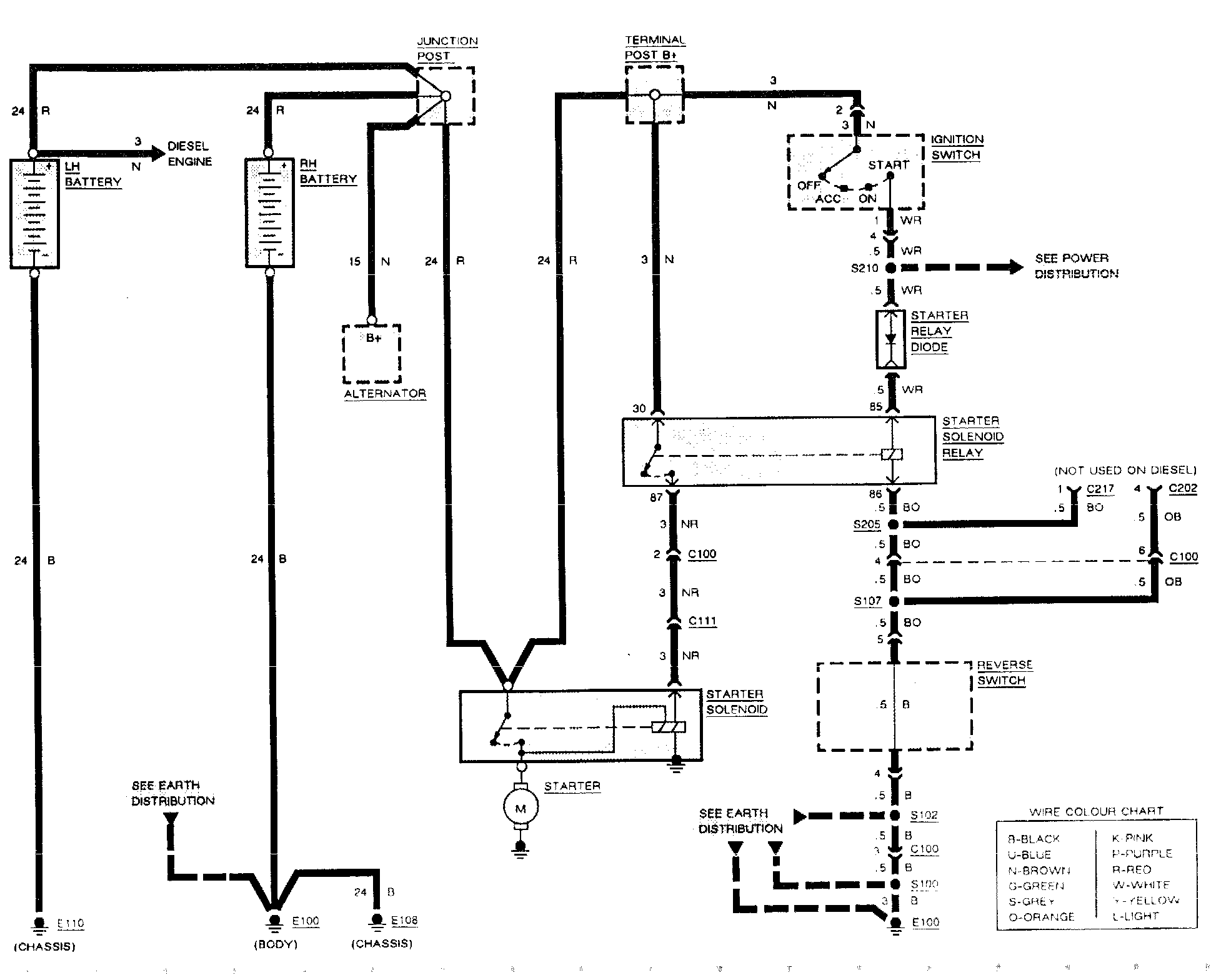

Starting And Charging (Diesel):




Starting And Charging (Diesel):
